Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02560231-000LINEAR TRANSDUCER TE Connectivity Measurement Specialties |
2,002 |
|
Datasheet |
- | R30A | Bulk | Active | - | Rotary Position | Inductive | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | - | - | - | - | Panel Mount | Wire Leads | -55°C ~ 150°C | - | - | - |
|

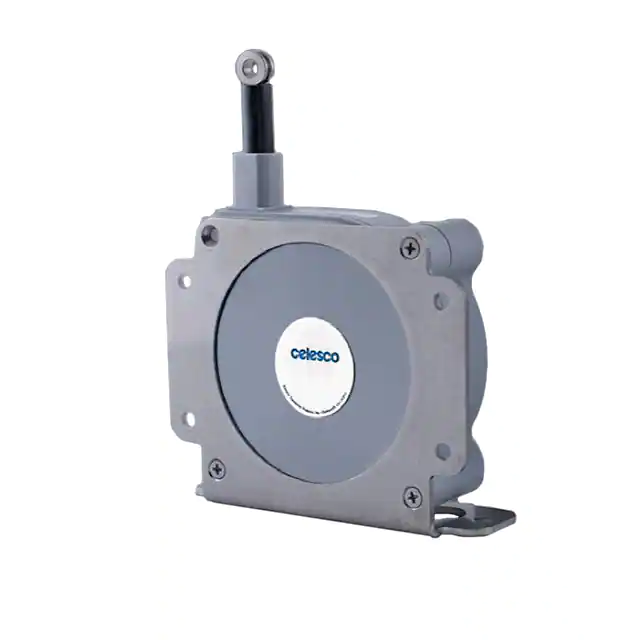

SGD-80-3SENSOR LINEAR 2032MM CONNECTOR TE Connectivity Measurement Specialties |
2,006 |
|
Datasheet |
Box with Connector | SGD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 2032mm (0 ~ 80") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | 10 kOhms | ±10% | 8V ~ 40V | Custom | Connector | -18°C ~ 70°C | - | - | - |
|
|
SGD-120-3SENSOR LINEAR 3048MM CONNECTOR TE Connectivity Measurement Specialties |
2,748 |
|
Datasheet |
Box with Connector | SGD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 3048mm (0 ~ 120") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | 10 kOhms | ±10% | 8V ~ 40V | Custom | Connector | -18°C ~ 70°C | - | - | - |
|
02560234-000SENSOR POSITION RVDT +/- 15V TE Connectivity Measurement Specialties |
1,749 |
|
Datasheet |
- | - | Bulk | Active | - | Rotary Position | Inductive | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.25% | - | - | ±15V | Panel Mount | Wire Leads | -18°C ~ 70°C | - | - | - |
|

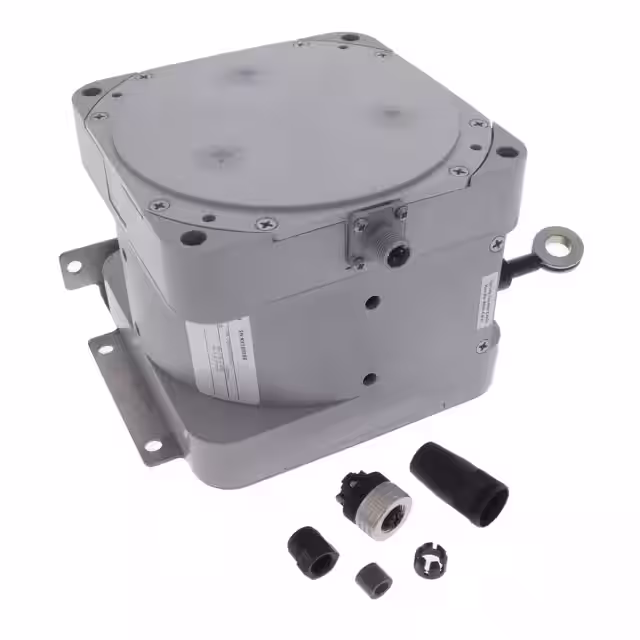

SKD-250-3250 IN 0-10V / 4-20MA IP67 STRIN TE Connectivity Measurement Specialties |
2,540 |
|
Datasheet |
Module | SKD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 6350.00mm (0 ~ 250.00") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 32V, 12V ~ 40V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
02560927-000SENSOR ROTARY 60DEG WIRE LEADS TE Connectivity Measurement Specialties |
1,656 |
|
Datasheet |
Cylinder | R36AS | Bulk | Active | - | Rotary Position | Inductive | 60° (±30°), Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.25% | - | - | 3V | Panel Mount | Connector | -55°C ~ 150°C | - | - | - |
|
|
SR1M-125STRING POT, 125 INCH RANGE TE Connectivity Measurement Specialties |
2,645 |
|
Datasheet |
Box with Connector | SR1M | Box | Active | - | Linear Position | - | - | 0 ~ 3175.00mm (0 ~ 125.00") | 4mA ~ 20mA | - | String Potentiometer | ±0.5% | - | - | 10V ~ 30V | Chassis Mount | Cable | -40°C ~ 85°C | - | - | - |
|
|
SK1-400-3400 IN VOLTAGE DIVIDER STRING PO TE Connectivity Measurement Specialties |
2,453 |
|
Datasheet |
Module | SK1 | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 10160.00mm (0 ~ 400.00") | Analog Voltage | - | String Potentiometer | - | - | ±10% | 30V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
SKD-400-3400 IN 0-10V / 4-20MA IP67 STRIN TE Connectivity Measurement Specialties |
3,022 |
|
Datasheet |
Module | SKD | Box | Active | - | Linear Position | Resistive | - | 0 ~ 10160.00mm (0 ~ 400.00") | Analog Voltage, 4 ~ 20mA | - | String Potentiometer | - | - | - | 8V ~ 32V, 12V ~ 40V | Chassis Mount | Connector | -40°C ~ 85°C | - | - | - |
|
|
SM2-25PRESSURE I2C 1.5 PSID SO16 TE Connectivity Measurement Specialties |
2,441 |
|
Datasheet |
Module | SM2 | Box | Active | - | Linear Position | Resistive | - | 0 ~ 635.00mm (0 ~ 25.00") | Resistive | - | String Potentiometer | ±0.25% | 10 kOhms | ±10% | 30VAC/DC | Chassis Mount | Wire Leads | -18°C ~ 71°C | - | - | - |
