Audio Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM6210HLTXFMR PLC1:1:1 5UH FUNC INS Pulse Electronics |
650 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | - | - | - | -40°C ~ 125°C | - | Surface Mount | 0.354" L x 0.272" W (9.00mm x 6.90mm) | 0.197" (5.00mm) | Gull Wing |
|
|
BM6210HLXFMR PLC1:1:1 5UH FUNC INS Pulse Electronics |
347 |
|
Datasheet |
- | Tube | Active | 1:1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | - | - | - | -40°C ~ 125°C | - | Surface Mount | 0.354" L x 0.272" W (9.00mm x 6.90mm) | 0.197" (5.00mm) | Gull Wing |
|
|
BM6230HLXFMR PLC1:1:1 28UH REIN IN Pulse Electronics |
198 |
|
Datasheet |
- | Tube | Active | 1:1:1 | - | - | 250mOhm | 250mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 3000V | 2.25dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.636" L x 0.583" W (16.15mm x 14.80mm) | 0.236" (6.00mm) | Gull Wing |
|
|
BM6220NLTXFMR PLC1:1 12UH FUNC INS Pulse Electronics |
486 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | -1dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.394" (10.00mm) | Gull Wing |
|
|
BM6220NLXFMR PLC1:1 12UH FUNC INS Pulse Electronics |
248 |
|
Datasheet |
- | Tube | Active | 1:1 | - | - | 500mOhm | 500mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 500V | -1dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.394" (10.00mm) | Gull Wing |
|
|
BM6230HLTXFMR PLC1:1:1 28UH REIN IN Pulse Electronics |
360 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1:1:1 | - | - | 250mOhm | 250mOhm | Line (Audio Power Distribution) | 3MHz ~ 30MHz | - | 3000V | 2.25dB | - | - | -40°C ~ 125°C | - | Surface Mount | 0.636" L x 0.583" W (16.15mm x 14.80mm) | 0.236" (6.00mm) | Gull Wing |
|
|
T6074NLAUDIO XFMR TH Pulse Electronics |
2,077 |
|
- |
- | Tube | Active | - | - | - | - | - | Data/Voice Coupling | - | - | - | - | - | - | - | - | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | PC Pin |
|

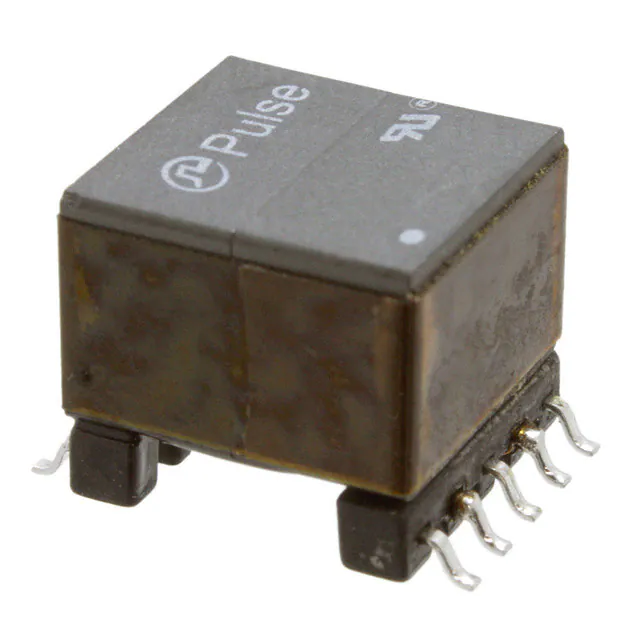

T6003NLAUDIO XFMR 600 / 600 SMD Pulse Electronics |
2,743 |
|
Datasheet |
- | Tray | Active | 1:1 | 600 | 600 | 55Ohm | 70Ohm | General Purpose | - | - | 1500Vrms | 1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz | 20dB @ 200Hz, 30dB @ 1kHz, 25dB @ 10kHz | - | - | - | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | Gull Wing |
|
|
H4006FNLTAUDIO XFMR SMD Pulse Electronics |
4,904 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H4004FNLTAUDIO XFMR SMD Pulse Electronics |
1,917 |
|
- |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
