Contactors (Electromechanical)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Features | Termination Style | Operating Temperature | Must Operate Voltage | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

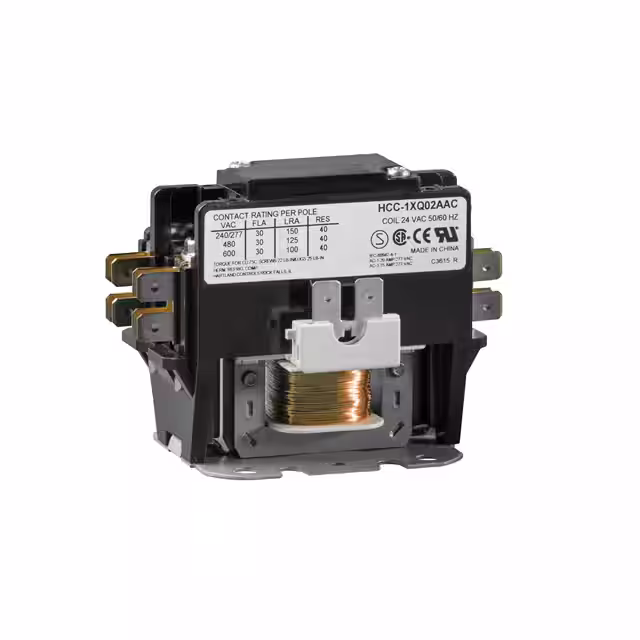

CON-1/24/40CONTACTOR 1P 24V 40A W/SHUNT Hartland Controls/Littelfuse |
1,651 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 40 A | 600VAC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 18 VAC | 6 VAC |
|
CON-2/120/30LCONTACTOR 2P 120V 30A LUG/COVER Hartland Controls/Littelfuse |
4,849 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 88 VAC | 20 VAC |
|
|
CON-2/120/30CONTACTOR 2P 120V 30A LUG/COVER Hartland Controls/Littelfuse |
3,737 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 88 VAC | 20 VAC |
|
|
CON-2/240/30CONTACTOR 2P 208/240V 30A LUG Hartland Controls/Littelfuse |
4,978 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 208 ~ 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 177 VAC | 40 VAC |
|
|
CON-2/24/30CONTACTOR 2P 24V 30A LUG/COVER Hartland Controls/Littelfuse |
4,786 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 18 VAC | 6 VAC |
|
|
CON-2/24/30LCONTACTOR 2P 24V 30A LUG/COVER Hartland Controls/Littelfuse |
2,005 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 18 VAC | 6 VAC |
|
|
CON-2/240/30LCONTACTOR 2P 208/240V 30A Hartland Controls/Littelfuse |
4,171 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 208 ~ 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 177 VAC | 40 VAC |
|
|
CON-2/120/40CONTACTOR 2P 120V 40A Hartland Controls/Littelfuse |
1,229 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 40 A | 600VAC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 88 VAC | 20 VAC |
|
|
CON-1/120/30CONTACTOR 1P 120V 30AW/SHUNT Hartland Controls/Littelfuse |
4,044 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | - | Screw Terminal, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 88 VAC | 20 VAC |
|
|
CON-1/120/30LCONTACTOR 1P 120V 30A W/SHUNT Hartland Controls/Littelfuse |
2,977 |
|
Datasheet |
HCC | Box | Active | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | - | Box Lug, Quick Connect - 0.250" (6.3mm) | -40°C ~ 65°C | 88 VAC | 20 VAC |
