Current Sense Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

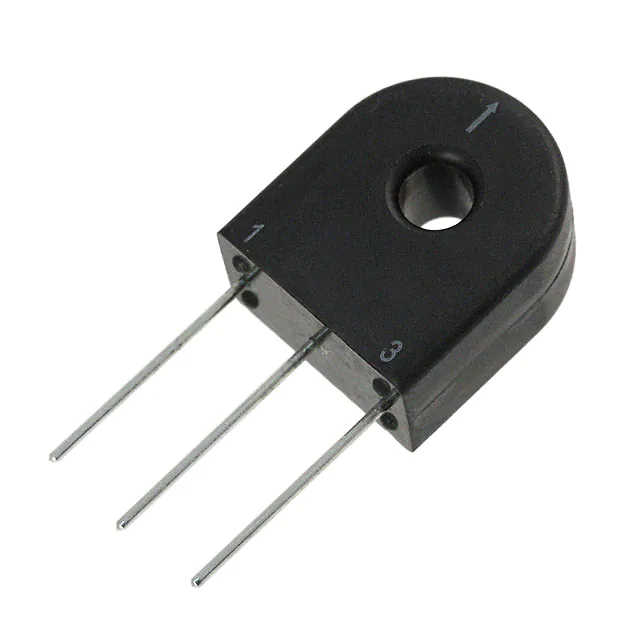

PE-51718NLCURR SENSE XFMR 20A T/H Pulse Electronics |
109 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100CT:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|

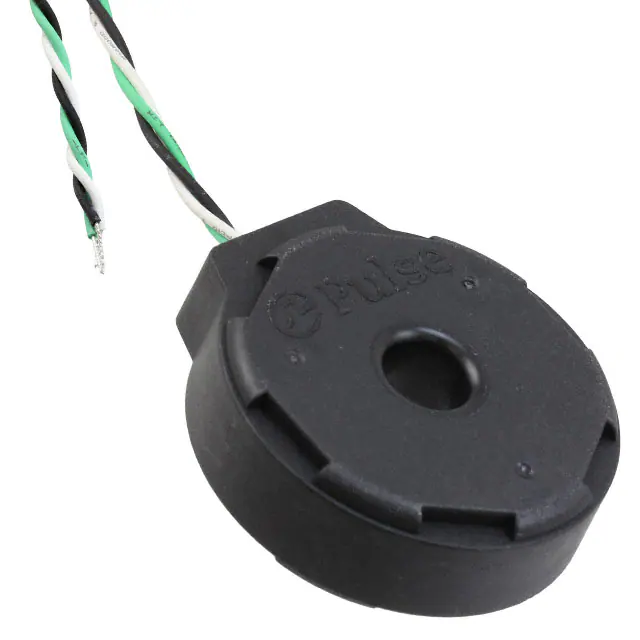

PA3202NLCURR XFMR ROGOWSKI 200A CHAS Pulse Electronics |
755 |
|
Datasheet |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 200 A | 1.75 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.669" L x 1.587" W (42.40mm x 40.30mm) | 0.580" (14.73mm) | Wire Leads |
|
P0581NLCURR SENSE XFMR 200:1:1 34A T/H Pulse Electronics |
112 |
|
Datasheet |
THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 34 A | 76 mH | - | 200:1:1 | - | 2.8Ohm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|

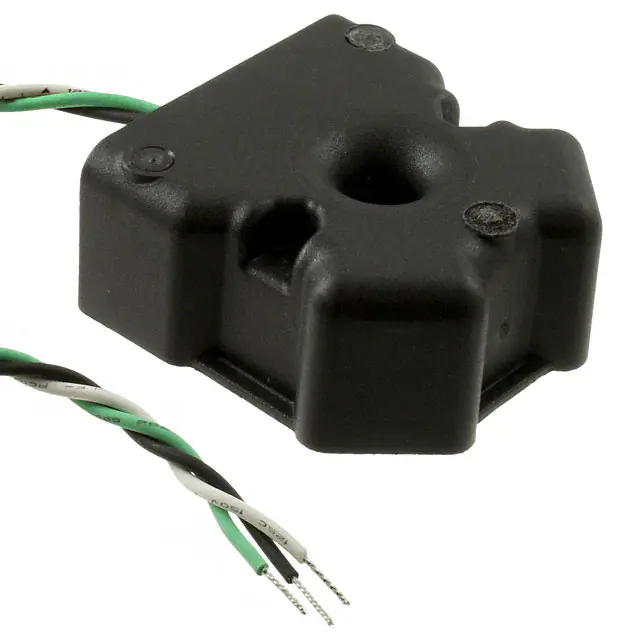

PA3208NLCURR XFMR ROGOWSKI 100A CHAS Pulse Electronics |
543 |
|
Datasheet |
Sidewinder®, PA32XXNL | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 100 A | 1.14 mH | - | Rogowski Coil | - | 54Ohm Max | - | Chassis Mount | 1.205" L x 1.189" W (30.60mm x 30.20mm) | 0.580" (14.73mm) | Wire Leads |
|
PAS6322.150NLTCURR SENSE XFMR 1:150 50A SMD Pulse Electronics |
261 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 10 mH | - | 1:150 | - | 0.5mOhm Primary, 6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.472" (12.00mm) | Gull Wing |
|
|
PAS6322.100NLTCURR SENSE XFMR 1:100 50A SMD Pulse Electronics |
516 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 4.5 mH | - | 1:100 | - | 0.5mOhm Primary, 2.6Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.050NLTCURR SENSE XFMR 1:50 50A SMD Pulse Electronics |
194 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 1.1 mH | - | 1:50 | - | 0.5mOhm Primary, 600mOhm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
|
PAS6322.200NLTCURR SENSE XFMR 1:20 50A SMD Pulse Electronics |
872 |
|
Datasheet |
PAS6322.XXXNLT | Tape & Reel (TR) | Active | 20kHz ~ 1MHz | Invasive | 50 A | 17.5 mH | - | 1:200 | - | 0.5mOhm Primary, 12Ohm Secondary Max | - | Surface Mount | 0.122" L x 0.252" W (3.10mm x 6.40mm) | 0.029" (0.73mm) | Gull Wing |
|
PE-64978NLCURR SENSE XFMR 20A T/H Pulse Electronics |
148 |
|
Datasheet |
THT | Tube | Active | 200kHz ~ 500kHz | Invasive | 20 A | 4 mH | - | - | 50:1 | 6mOhm Primary, 240mOhm Secondary | - | Through Hole | 0.550" L x 0.380" W (13.97mm x 9.65mm) | 0.580" (14.73mm) | PC Pin |
|
PA0368.050NLCURR SENSE XFMR 1:50 4A SMD Pulse Electronics |
314 |
|
Datasheet |
- | Tube | Active | 50kHz ~ 1MHz | Invasive | 4 A | 1.7 mH | - | 1:50 | - | 4mOhm Primary, 900mOhm Secondary | - | Surface Mount | 0.285" L x 0.352" W (7.25mm x 8.25mm) | 0.124" (3.15mm) | - |
