Analog to Digital Converters (ADC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Input Type | Data Interface | Configuration | Ratio - S/H:ADC | Number of A/D Converters | Architecture | Reference Type | Voltage - Supply, Analog | Voltage - Supply, Digital | Features | Operating Temperature | Supplier Device Package | Mounting Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1525-BTDTIC ADC 12BIT SAR 8TDFN ams-OSRAM USA INC. |
2,946 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | 12 | 150k | 2 | Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 8-TDFN (3x3) | Surface Mount | - | - |
|

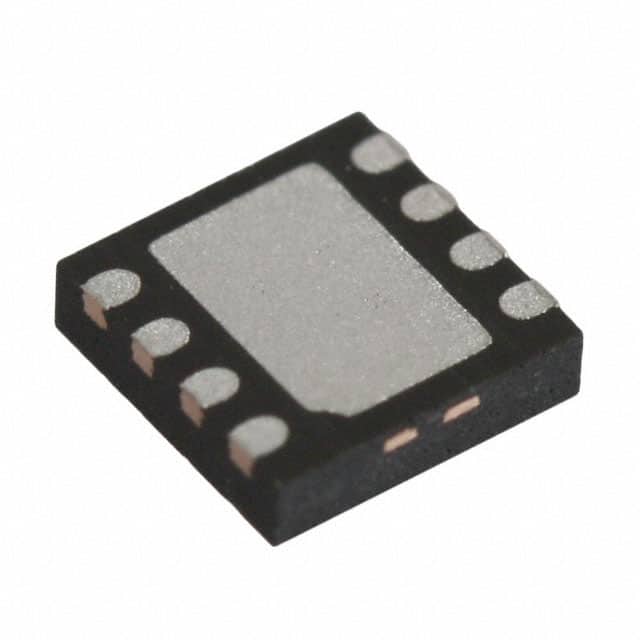

AS1524-BTDRIC ADC 12BIT SAR 8TDFN ams-OSRAM USA INC. |
3,638 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tray | Obsolete | 12 | 150k | 1 | Differential, Pseudo-Differential | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 8-TDFN (3x3) | Surface Mount | - | - |
|
AS1525-BTDRIC ADC 12BIT SAR 8TDFN ams-OSRAM USA INC. |
4,352 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tray | Obsolete | 12 | 150k | 2 | Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 8-TDFN (3x3) | Surface Mount | - | - |
.jpg)
|

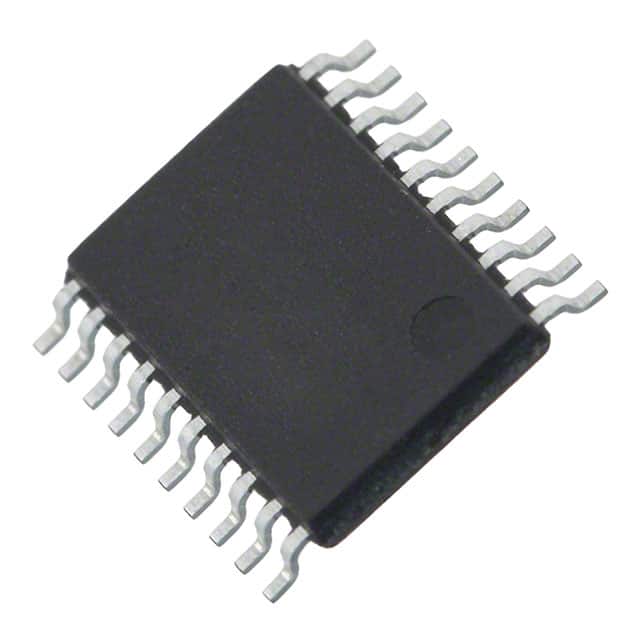

AS1530-TIC ADC 12BIT SAR 20TSSOP ams-OSRAM USA INC. |
4,304 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 12 | 400k | 4, 8 | Differential, Pseudo-Differential, Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 20-TSSOP | Surface Mount | - | - |
|
|

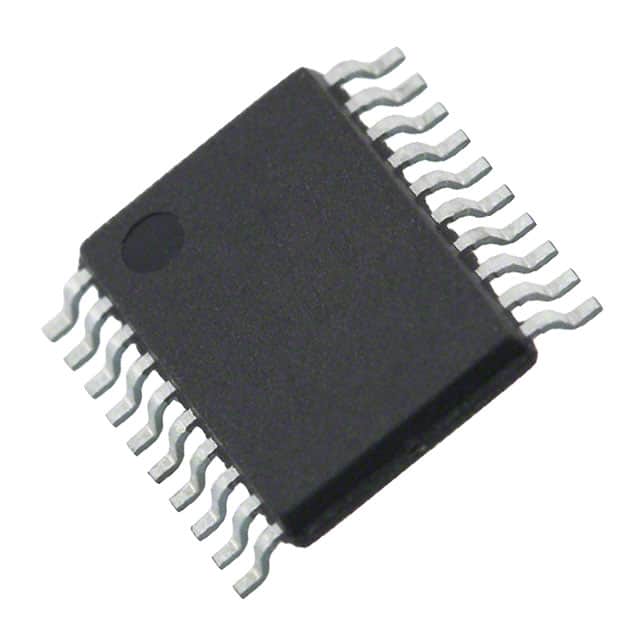

AS1531-TIC ADC 12BIT SAR 20TSSOP ams-OSRAM USA INC. |
4,767 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | 12 | 300k | 4, 8 | Differential, Pseudo-Differential, Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | - | -40°C ~ 85°C | 20-TSSOP | Surface Mount | - | - |
|
AS1539-BTSUIC ADC 10BIT SAR 16TSSOP ams-OSRAM USA INC. |
2,535 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | 10 | 50k | 8 | Differential, Single Ended | I2C | MUX-S/H-ADC | 1:1 | 1 | SAR | External, Internal | 2.7V ~ 5.25V | 2.7V ~ 5.25V | Selectable Address | -40°C ~ 85°C | 16-TSSOP | Surface Mount | - | - |
|

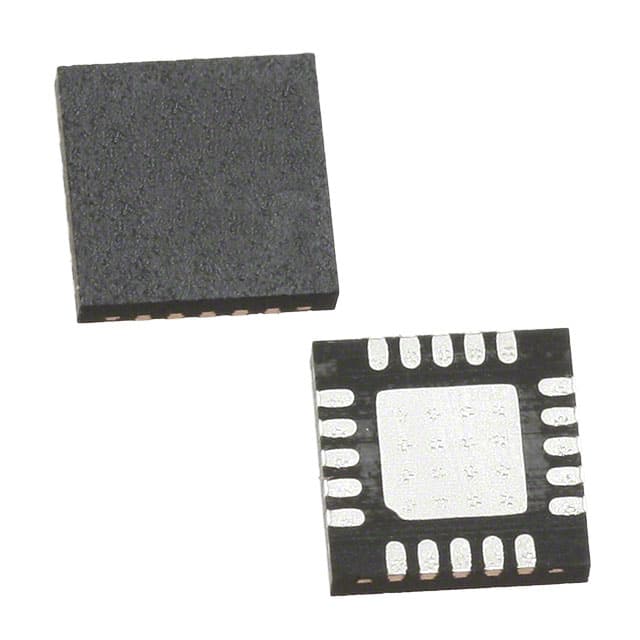

AS1543-BQFTIC ADC 12BIT SAR 20TQFN ams-OSRAM USA INC. |
2,918 |
|
Datasheet |
- | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 12 | 1M | 4, 8 | Differential, Single Ended | SPI, DSP | MUX-S/H-ADC | 1:1 | 1 | SAR | External | 2.7V ~ 5.25V | 2.7V ~ 5.25V | - | -40°C ~ 85°C | 20-TQFN (4x4) | Surface Mount | - | - |
|
|
AS1538-BTSUIC ADC 12BIT SAR 16TSSOP ams-OSRAM USA INC. |
1,521 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | 12 | 50k | 8 | Differential, Single Ended | I2C | MUX-S/H-ADC | 1:1 | 1 | SAR | Internal | 2.7V ~ 5.25V | 2.7V ~ 5.25V | Selectable Address | -40°C ~ 85°C | 16-TSSOP | Surface Mount | - | - |
|
AS1530IC ADC 12BIT SAR 20TSSOP ams-OSRAM USA INC. |
2,648 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | 12 | 400k | 4, 8 | Differential, Pseudo-Differential, Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 5V | 5V | - | -40°C ~ 85°C | 20-TSSOP | Surface Mount | - | - |
|
AS1531IC ADC 12BIT SAR 20TSSOP ams-OSRAM USA INC. |
2,154 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | 12 | 300k | 4, 8 | Differential, Pseudo-Differential, Single Ended | SPI | S/H-ADC | 1:1 | 1 | SAR | External, Internal | 2.7V ~ 3.6V | 2.7V ~ 3.6V | - | -40°C ~ 85°C | 20-TSSOP | Surface Mount | - | - |
