DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

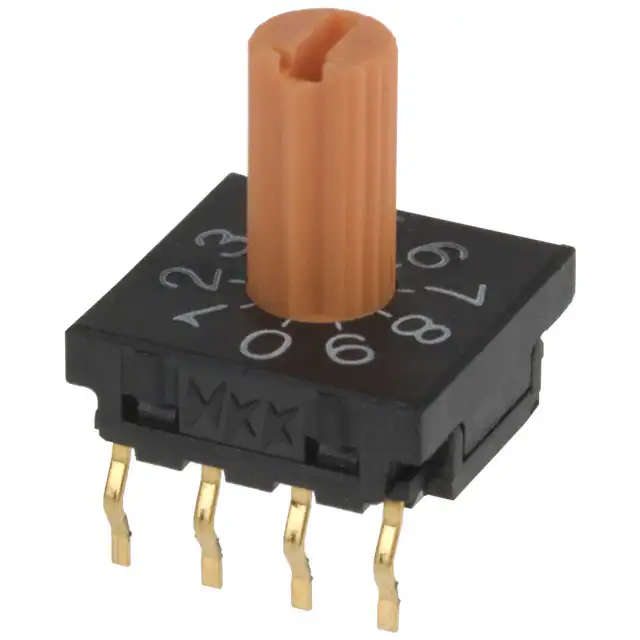

FR01KR10P-SSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
1,851 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR02FR10PSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
1,513 |
|
Datasheet |
FR02 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR02FR16PSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
3,223 |
|
Datasheet |
FR02 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

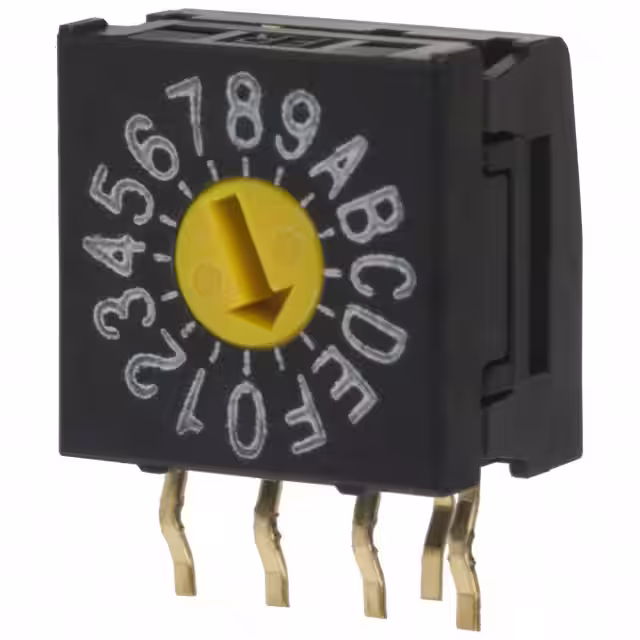

FR01FC16H-SSW ROTARY DIP HEX COMP 0.1A 5V NKK Switches |
3,688 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01FC10H-SSW ROTARY DIP BCD COMP 0.1A 5V NKK Switches |
4,810 |
|
Datasheet |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KR10H-SSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
3,257 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KR16H-06XL-SSWITCH ROTARY DIP HEX 0.1A 5V NKK Switches |
100 |
|
Datasheet |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

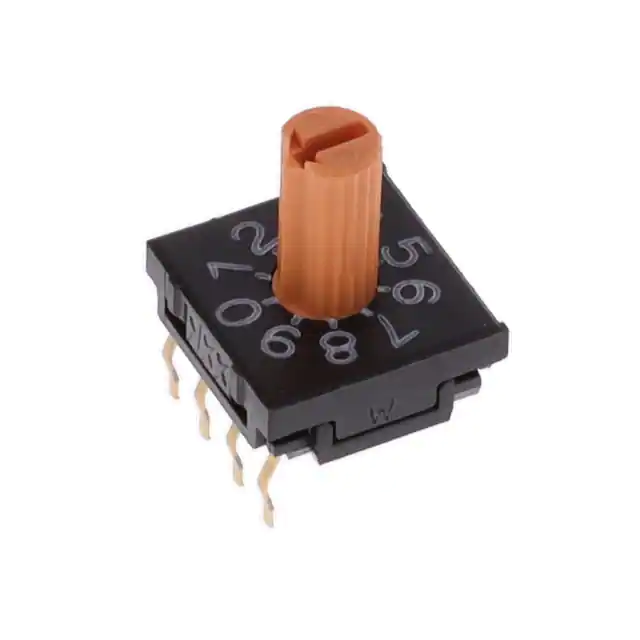

FR01KR10P-WSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
4,475 |
|
Datasheet |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
FR01SR10P-W-SSWITCH ROTARY DIP BCD 0.1A 5V NKK Switches |
4,192 |
|
Datasheet |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

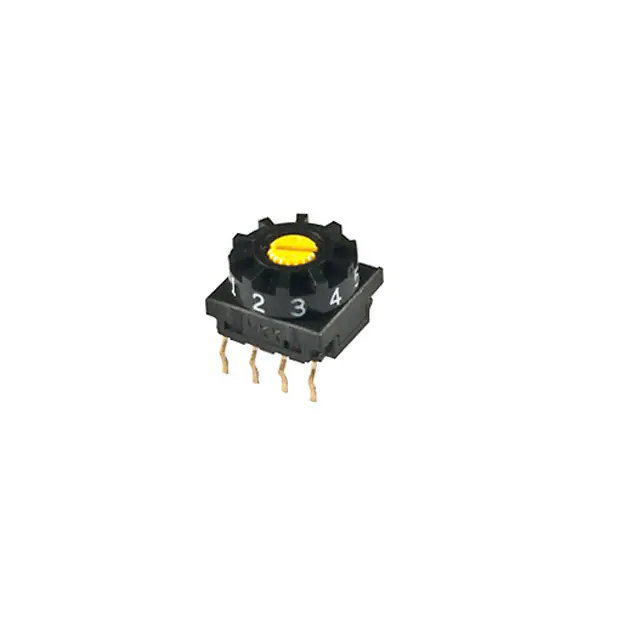

FR01SC10P-SSW ROTARY DIP BCD COMP 0.1A 5V NKK Switches |
1,532 |
|
Datasheet |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.284" (7.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
