DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1571999-1SWITCH PIANO DIP SPST TE Connectivity ALCOSWITCH Switches |
2,729 |
|
Datasheet |
ADP | Tube | Active | SPST | 5 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
5-1825059-3SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches |
3,493 |
|
Datasheet |
ADF | Bulk | Active | SPST | 10 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
5-5435640-4SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
2,701 |
|
Datasheet |
7100 | Tube | Active | SPST | 4 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

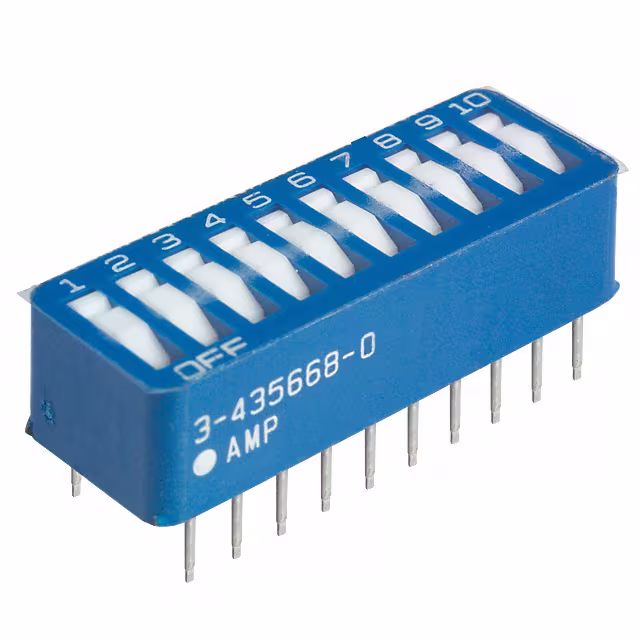

3-435668-0SWITCH ROCKER DIP SPST 0.06A 5V TE Connectivity ALCOSWITCH Switches |
1,236 |
|
Datasheet |
7100 | Tube | Obsolete | SPST | 10 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
1814425-1SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,463 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
5-5435640-8SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
4,239 |
|
Datasheet |
7100 | Tube | Active | SPST | 8 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
3-1825059-8SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches |
1,177 |
|
Datasheet |
ADF | Tape & Reel (TR) | Active | SPST | 8 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
1825059-8SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,637 |
|
Datasheet |
ADF | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
5435668-4SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
4,653 |
|
Datasheet |
7100 | Tube | Active | SPST | 5 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
ADF10SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,050 |
|
- |
ADF | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
