Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPC5604EEF2MLHIC MCU 32BIT 512KB FLASH 64LQFP NXP USA Inc. |
4,874 |
|
Datasheet |
64-LQFP | MPC56xx Qorivva | Tray | Active | Not Verified | e200z0h | 32-Bit Single-Core | 64MHz | CANbus, Ethernet, I2C, LINbus, SCI, SPI | DMA, POR, WDT | 39 | 512KB (512K x 8) | FLASH | 64K x 8 | 96K x 8 | 3V ~ 3.6V | A/D 4x10b | Internal | -40°C ~ 125°C (TA) | - | - | Surface Mount | |
|
MC9S12XDT256MAAIC MCU 16BIT 256KB FLASH 80QFP NXP USA Inc. |
4,469 |
|
Datasheet |
80-QFP | HCS12X | Tray | Active | Not Verified | HCS12X | 16-Bit | 80MHz | CANbus, EBI/EMI, I2C, IrDA, LINbus, SCI, SPI | LVD, POR, PWM, WDT | 59 | 256KB (256K x 8) | FLASH | 4K x 8 | 16K x 8 | 2.35V ~ 5.5V | A/D 8x10b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | |
|
MC9S12DT128CPVEIC MCU 16BIT 128KB FLASH 112LQFP NXP USA Inc. |
4,336 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 91 | 128KB (128K x 8) | FLASH | 2K x 8 | 8K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
MCF5274LVM166IC MCU 32BIT ROMLESS 196MAPBGA NXP USA Inc. |
4,464 |
|
Datasheet |
196-LBGA | MCF527x | Tray | Not For New Designs | Not Verified | Coldfire V2 | 32-Bit Single-Core | 166MHz | EBI/EMI, Ethernet, I2C, SPI, UART/USART, USB | DMA, WDT | 61 | - | ROMless | - | 64K x 8 | 1.4V ~ 1.6V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | |
|
|
MC9S12DG128VFUEIC MCU 16BIT 128KB FLASH 80QFP NXP USA Inc. |
3,276 |
|
Datasheet |
80-QFP | HCS12 | Tray | Active | Not Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 59 | 128KB (128K x 8) | FLASH | 2K x 8 | 8K x 8 | 2.35V ~ 5.25V | A/D 16x10b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|

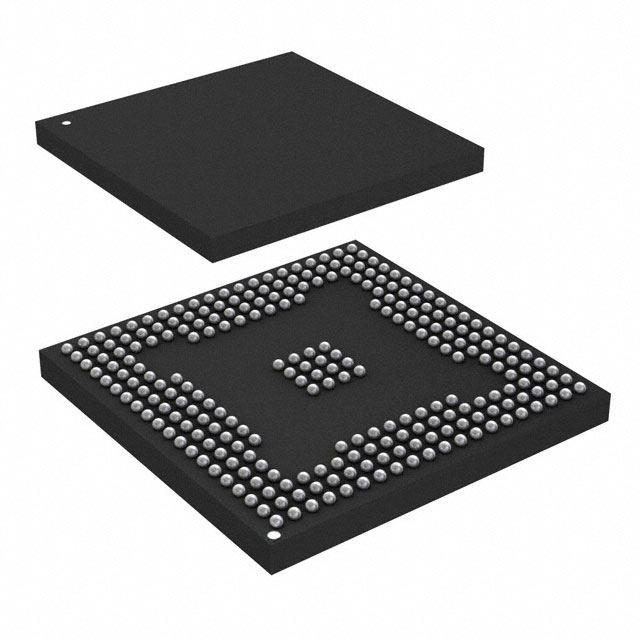

SPC5746RK1MMT5IC MCU 32BIT 4MB FLASH 252MAPBGA NXP USA Inc. |
1,019 |
|
Datasheet |
252-LFBGA | MPC57xx | Tray | Active | Not Verified | e200z4 | 32-Bit Tri-Core | 200MHz | CANbus, Ethernet, I2C, LINbus, SCI, SPI, UART/USART | DMA, LVD, POR, Zipwire | - | 4MB (4M x 8) | FLASH | - | 256K x 8 | 3.5V ~ 5.5V | A/D 12b SAR, 16b Sigma-Delta | Internal | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | |
|
SPC5516EAVLQ66RIC MCU 32BIT 1MB FLASH 144LQFP NXP USA Inc. |
1,097 |
|
Datasheet |
144-LQFP | MPC55xx Qorivva | Tape & Reel (TR) | Active | Not Verified | e200z0, e200z1 | 32-Bit Dual-Core | 66MHz | CANbus, EBI/EMI, I2C, SCI, SPI | DMA, POR, PWM, WDT | 111 | 1MB (1M x 8) | FLASH | - | 64K x 8 | 4.5V ~ 5.25V | A/D 40x12b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
|
MC68332ACAG16IC MCU 32BIT ROMLESS 144LQFP NXP USA Inc. |
4,313 |
|
Datasheet |
144-LQFP | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 16MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
MC9S12DT256CPVEIC MCU 16BIT 256KB FLASH 112LQFP NXP USA Inc. |
4,459 |
|
Datasheet |
112-LQFP | HCS12 | Tray | Active | Verified | HCS12 | 16-Bit | 25MHz | CANbus, I2C, SCI, SPI | PWM, WDT | 91 | 256KB (256K x 8) | FLASH | 4K x 8 | 12K x 8 | 2.35V ~ 5.25V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
MC68332GCAG20IC MCU 32BIT ROMLESS 144LQFP NXP USA Inc. |
4,358 |
|
Datasheet |
144-LQFP | M683xx | Tray | Not For New Designs | Not Verified | CPU32 | 32-Bit Single-Core | 20MHz | EBI/EMI, SCI, SPI, UART/USART | POR, PWM, WDT | 15 | - | ROMless | - | 2K x 8 | 4.5V ~ 5.5V | - | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
