Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M38039FFLHP#U0IC MCU 8BIT 60KB FLASH 64LFQFP |
2,792 |
|
Datasheet |
64-LQFP | 740/38000 | Tray | Obsolete | Not Verified | 740 | 8-Bit | 16.8MHz | SIO, UART/USART | LED, PWM, WDT | 56 | 60KB (60K x 8) | FLASH | - | 2K x 8 | 2.7V ~ 5.5V | A/D 16x10b; D/A 2x8b | Internal | -20°C ~ 85°C (TA) | - | - | Surface Mount | |
|
DF36079LHVIC MCU 16BIT 128KB FLASH 64QFP |
1,317 |
|
Datasheet |
64-BQFP | H8® H8/300H Tiny | Tray | Obsolete | Not Verified | H8/300H | 16-Bit | 16MHz | I2C, SCI | LVD, POR, PWM, WDT | 47 | 128KB (128K x 8) | FLASH | - | 6K x 8 | 3V ~ 3.6V | A/D 8x10b | Internal | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
|
DF36079LFZVIC MCU 16BIT 128KB FLASH 64LFQFP |
1,210 |
|
Datasheet |
64-LQFP | H8® H8/300H Tiny | Tray | Obsolete | Not Verified | H8/300H | 16-Bit | 16MHz | I2C, SCI | LVD, POR, PWM, WDT | 47 | 128KB (128K x 8) | FLASH | - | 6K x 8 | 3V ~ 3.6V | A/D 8x10b | Internal | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
DF38799FP10VIC MCU 16BIT 128KB FLSH 100LFQFP |
1,100 |
|
Datasheet |
100-LQFP | H8® H8/300H SLP | Tray | Obsolete | Not Verified | H8/300H | 16-Bit | 10MHz | I2C, IrDA, SCI | POR, PWM, WDT | 75 | 128KB (128K x 8) | FLASH | - | 4K x 8 | 2.7V ~ 3.6V | A/D 8x10b | Internal | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
M30280FAWG#U7BIC MCU 16BIT 96KB FLASH 85TFLGA |
4,870 |
|
Datasheet |
85-TFLGA | M16C™ M16C/Tiny/28 | Tray | Active | Not Verified | M16C/60 | 16-Bit | 20MHz | I2C, IEBus, SIO, UART/USART | DMA, POR, PWM, Voltage Detect, WDT | 71 | 96KB (96K x 8) | FLASH | 4K x 8 | 8K x 8 | 2.7V ~ 5.5V | A/D 24x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DF36037GFZJEVIC MCU 16BIT 56KB FLASH 64LFQFP |
4,052 |
|
Datasheet |
64-LQFP | H8® H8/300H Tiny | Tray | Obsolete | Not Verified | H8/300H | 16-Bit | 20MHz | CANbus, SCI, SSU | LVD, POR, PWM, WDT | 45 | 56KB (56K x 8) | FLASH | - | 3K x 8 | 3V ~ 5.5V | A/D 8x10b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
R5F61632N50FPVIC MCU 32BIT 256KB FLASH 120LQFP |
4,647 |
|
Datasheet |
120-LQFP | H8® H8SX/1600 | Tray | Active | Not Verified | H8SX | 32-Bit Single-Core | 50MHz | I2C, IrDA, SCI, SmartCard | DMA, LVD, POR, PWM, WDT | 81 | 256KB (256K x 8) | FLASH | - | 24K x 8 | 3V ~ 3.6V | A/D 8x10b; D/A 2x8b | External | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
|
DF71374AD80FPVIC MCU 32BIT 256KB FLSH 100LFQFP |
2,081 |
|
Datasheet |
100-LQFP | SuperH® SH7137 | Tray | Active | Not Verified | SH-2 | 32-Bit Single-Core | 80MHz | CANbus, EBI/EMI, I2C, SCI, SSU | POR, PWM, WDT | 57 | 256KB (256K x 8) | FLASH | - | 16K x 8 | 3V ~ 5.5V | A/D 12x12b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DF38099FP4VIC MCU 16BIT 128KB FLSH 100LFQFP |
3,466 |
|
Datasheet |
100-LQFP | H8® H8/300H SLP | Tray | Obsolete | Not Verified | H8/300H | 16-Bit | 4MHz | I2C, IrDA, SCI | LCD, POR, PWM, WDT | 75 | 128KB (128K x 8) | FLASH | - | 4K x 8 | 1.8V ~ 3.6V | A/D 8x10b | Internal | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
DS70850AD80FPVIC MCU 32BIT ROMLESS 144LFQFP |
2,088 |
|
Datasheet |
144-LQFP | SuperH® SH7080 | Tray | Active | Not Verified | SH-2 | 32-Bit Single-Core | 80MHz | EBI/EMI, FIFO, I2C, SCI, SSU | DMA, POR, PWM, WDT | 100 | - | ROMless | - | 16K x 8 | 3V ~ 5.5V | A/D 8x10b | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DF38099FP10WVIC MCU 16BIT 128KB FLSH 100LFQFP |
3,044 |
|
Datasheet |
100-LQFP | H8® H8/300H SLP | Tray | Obsolete | Not Verified | H8/300H | 16-Bit | 10MHz | I2C, IrDA, SCI | LCD, POR, PWM, WDT | 75 | 128KB (128K x 8) | FLASH | - | 4K x 8 | 2.7V ~ 3.6V | A/D 8x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
M306N5FCTFP#UKIC MCU 16BIT 128KB FLASH 100QFP |
3,953 |
|
Datasheet |
100-BQFP | M16C™ M16C/60/6N5 | Tray | Obsolete | Not Verified | M16C/60 | 16-Bit | 20MHz | CANbus, I2C, IEBus, SIO, UART/USART | DMA, WDT | 87 | 128KB (128K x 8) | FLASH | 4K x 8 | 5K x 8 | 4.2V ~ 5.5V | A/D 26x10b; D/A 2x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
M306N4FGTFP#UKJIC MCU 16BIT 256KB FLASH 100QFP |
1,633 |
|
Datasheet |
100-BQFP | M16C™ M16C/60/6N4 | Tray | Obsolete | Not Verified | M16C/60 | 16-Bit | 20MHz | CANbus, I2C, IEBus, SIO, UART/USART | DMA, WDT | 85 | 256KB (256K x 8) | FLASH | - | 10K x 8 | 4.2V ~ 5.5V | A/D 26x10b; D/A 2x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|

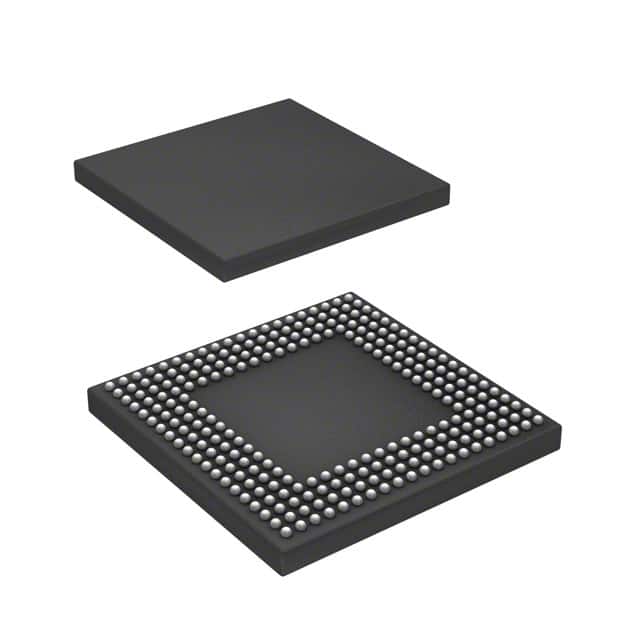

R5S76700B200BGIC MCU 32BIT ROMLESS 256FBGA |
3,308 |
|
Datasheet |
256-FBGA | SuperH® SH Ethernet | Tray | Obsolete | Not Verified | SH-2A | 32-Bit Single-Core | 200MHz | EBI/EMI, Ethernet, I2C, Host Interface, FIFO, SCI, SD, Serial Sound, Stream, USB | DMA, POR, PWM, WDT | 86 | - | ROMless | - | 32K x 8 | 1.1V ~ 1.3V | - | Internal | -20°C ~ 70°C (TA) | - | - | Surface Mount | |
|
|
DF71476AK64FPVIC MCU 32BIT 512KB FLSH 100LFQFP |
2,643 |
|
Datasheet |
100-LQFP | SuperH® SH7147 | Tray | Obsolete | Not Verified | SH-2 | 32-Bit Single-Core | 64MHz | CANbus, EBI/EMI, SCI, SSU | POR, PWM, WDT | 57 | 512KB (512K x 8) | FLASH | - | 16K x 8 | 3V ~ 3.6V | A/D 16x12b | External | -40°C ~ 125°C (TA) | - | - | Surface Mount | |
|
AT89C51RE2-SLSUMIC MCU 8BIT 128KB FLASH 44PLCC |
2,291 |
|
Datasheet |
44-LCC (J-Lead) | 89C | Tube | Obsolete | Verified | 80C51 | 8-Bit | 60MHz | I2C, SPI, UART/USART | POR, PWM, WDT | 34 | 128KB (128K x 8) | FLASH | - | 8K x 8 | 2.7V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
AT90PWM316-16SUIC MCU 8BIT 16KB FLASH 32SOIC |
2,528 |
|
Datasheet |
32-SOIC (0.295", 7.50mm Width) | AVR® 90PWM Lighting | Tube | Obsolete | Not Verified | AVR | 8-Bit | 16MHz | SPI, UART/USART | Brown-out Detect/Reset, POR, PWM, WDT | 27 | 16KB (16K x 8) | FLASH | 512 x 8 | 1K x 8 | 2.7V ~ 5.5V | A/D 11x10b; D/A 1x10b | Internal | -40°C ~ 105°C (TA) | - | - | Surface Mount | |
|
AT91SAM7L128-AUIC MCU 16/32B 128KB FLSH 128LQFP |
4,765 |
|
Datasheet |
128-LQFP | SAM7L | Tray | Obsolete | Not Verified | ARM7® | 16/32-Bit | 36MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, LCD, POR, PWM, WDT | 80 | 128KB (128K x 8) | FLASH | - | 6K x 8 | 1.55V ~ 1.8V | A/D 4x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
AT91SAM7L128-CUIC MCU 16/32B 128KB FLASH 144BGA |
3,241 |
|
Datasheet |
144-LFBGA | SAM7L | Tray | Obsolete | Not Verified | ARM7® | 16/32-Bit | 36MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, LCD, POR, PWM, WDT | 80 | 128KB (128K x 8) | FLASH | - | 6K x 8 | 1.55V ~ 1.8V | A/D 4x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
AT91SAM7L64-AUIC MCU 16/32B 64KB FLASH 128LQFP |
4,911 |
|
Datasheet |
128-LQFP | SAM7L | Tray | Obsolete | Not Verified | ARM7® | 16/32-Bit | 36MHz | I2C, SPI, UART/USART | Brown-out Detect/Reset, LCD, POR, PWM, WDT | 80 | 64KB (64K x 8) | FLASH | - | 6K x 8 | 1.55V ~ 1.8V | A/D 4x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount |
