Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RIC11-22S15D7-THINCR ENC, MECH, 20 PPR 20 DET, 5 Same Sky (Formerly CUI Devices) |
958 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
RIC11-22S10D5S-THINCR ENC, MECH, 20 PPR 20 DET, 5 Same Sky (Formerly CUI Devices) |
919 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
RIC11-31S15K7-THINCR ENC, MECH, 15 PPR 30 DET, 5 Same Sky (Formerly CUI Devices) |
622 |
|
Datasheet |
RIC11 | Box | Active | - | Incremental | Quadrature, 2-Bit | 15 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 100K | - | - |
|

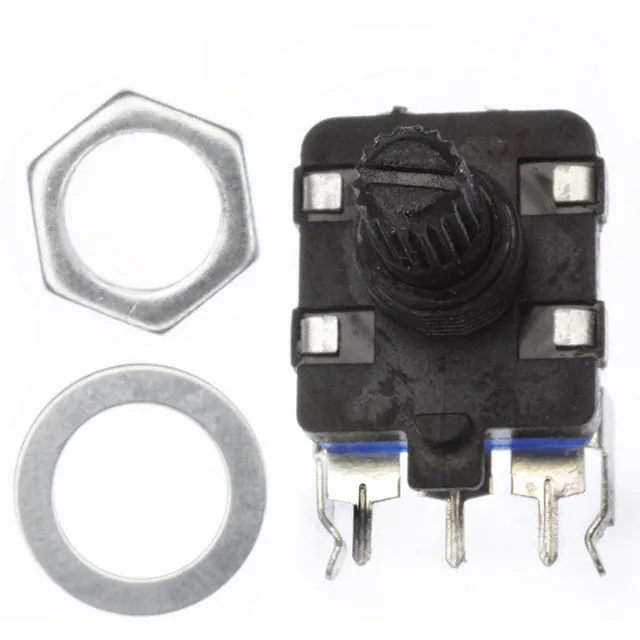

ACZ16NBR1E-15KQA1-24CROTARY ENCODER INCREMENT 24PPR Same Sky (Formerly CUI Devices) |
3,666 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|

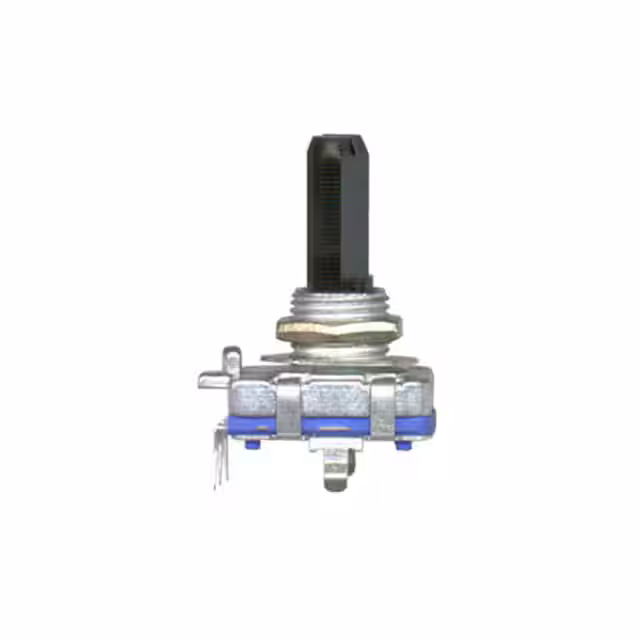

ACZ16BR1E-20KQD1-24CROTARY ENCODER INCREMENT 24PPR Same Sky (Formerly CUI Devices) |
967 |
|
Datasheet |
ACZ16 | Bulk | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ACZ09BR2E-15KQA1-20C10PROTARY ENCODER INCREMENT 10PPR Same Sky (Formerly CUI Devices) |
3,069 |
|
Datasheet |
ACZ09 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 10 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
AMT102-D2048-I8000-SAMT10, RADIAL, CAP, SINGLE ENDED Same Sky (Formerly CUI Devices) |
1,527 |
|
Datasheet |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
|
AMT102-D2048-I5000-SAMT10, RADIAL, CAP, SINGLE ENDED Same Sky (Formerly CUI Devices) |
2,159 |
|
Datasheet |
AMT10 | Box | Active | - | Incremental | Quadrature with Index (Incremental) | 2048 | 3.6V ~ 5.5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins | - | - | - |
|
C14D16P-A3ROTARY ENCODER OPTICAL 16PPR Same Sky (Formerly CUI Devices) |
2,137 |
|
Datasheet |
C14 | Box | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | Yes | Yes | Panel Mount | Right Angle | Solder Lug | 1M | - | - |
|

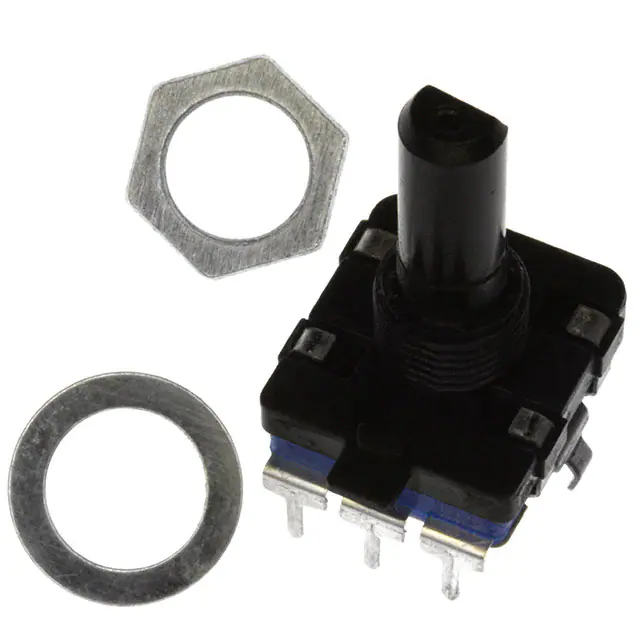

ACZ16NBR1E-20FD1-24CROTARY ENCODER INCREMENT 24PPR Same Sky (Formerly CUI Devices) |
4,757 |
|
Datasheet |
ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
