Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

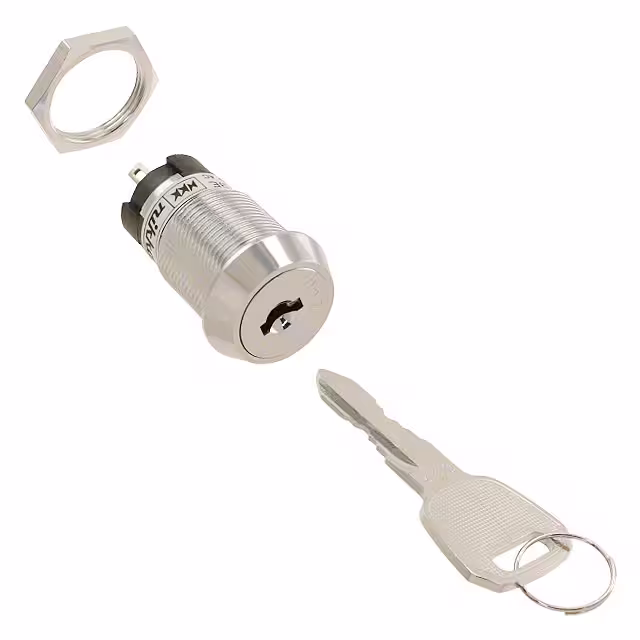

CKL13EFW01SWITCH KEYLOCK 3POS SPDT 3A 250V NKK Switches |
1,024 |
|
Datasheet |
CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL13EFW01-002SWITCH KEYLOCK 3POS SPDT 3A 250V NKK Switches |
3,234 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

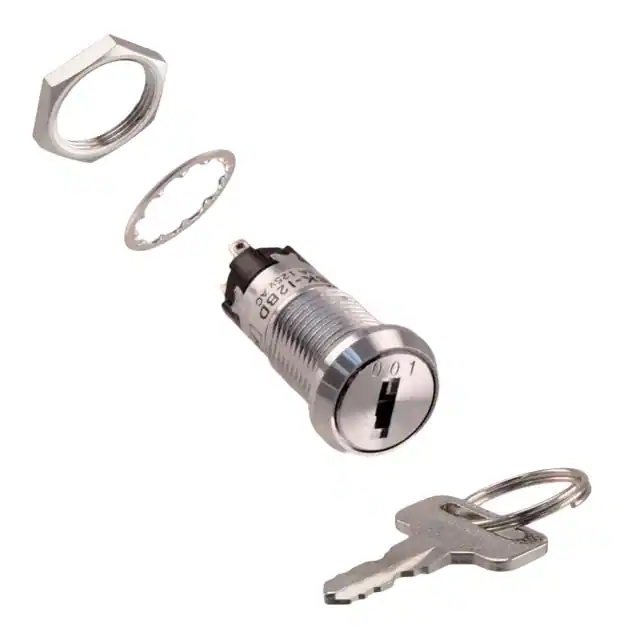

SK12BDW01SWITCH KEYLOCK 2POS SPDT 3A 125V NKK Switches |
219 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

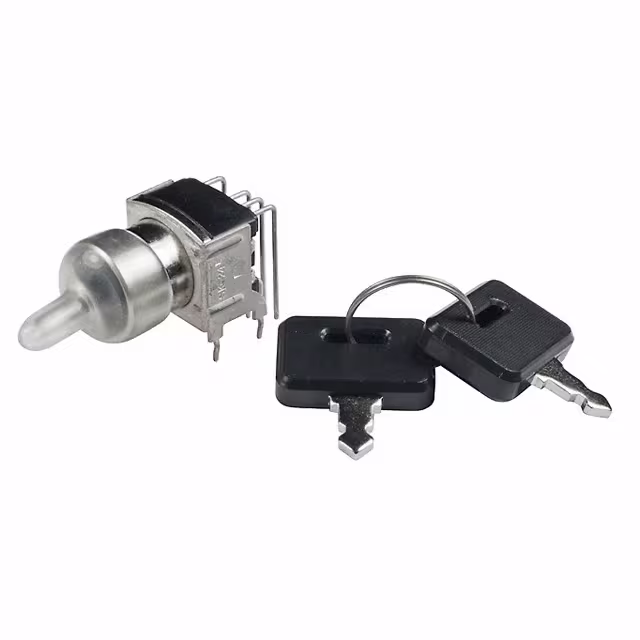

SK24EG30SWITCH KEYLK 3POS DP3T 0.4VA 28V NKK Switches |
1,690 |
|
Datasheet |
SK | Box | Active | DP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 2 only | 45° | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
CKM12BFW01-006SWITCH KEYLOCK 2POS SPDT 3A 250V NKK Switches |
118 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK12ADW01-007SWITCH KEYLOCK 2POS SPDT 3A 125V NKK Switches |
1,386 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK12ADW01-007/ULSWITCH KEYLOCK 2POS SPDT 3A 125V NKK Switches |
4,161 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK12ADW01SWITCH KEYLOCK 2POS SPDT 3A 125V NKK Switches |
3,647 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK13EDW01SWITCH KEYLOCK 3POS SPDT 3A 125V NKK Switches |
4,753 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

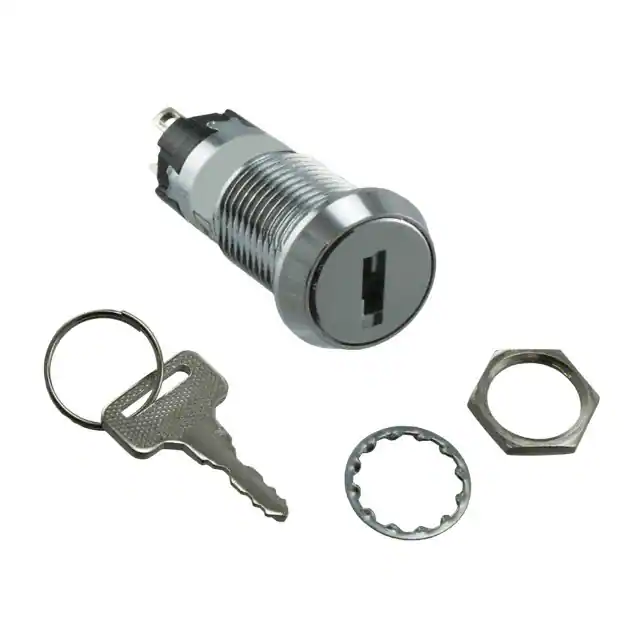

SK13EDW01-005SWITCH KEYLOCK 3POS SPDT 3A 125V NKK Switches |
3,823 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
