Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

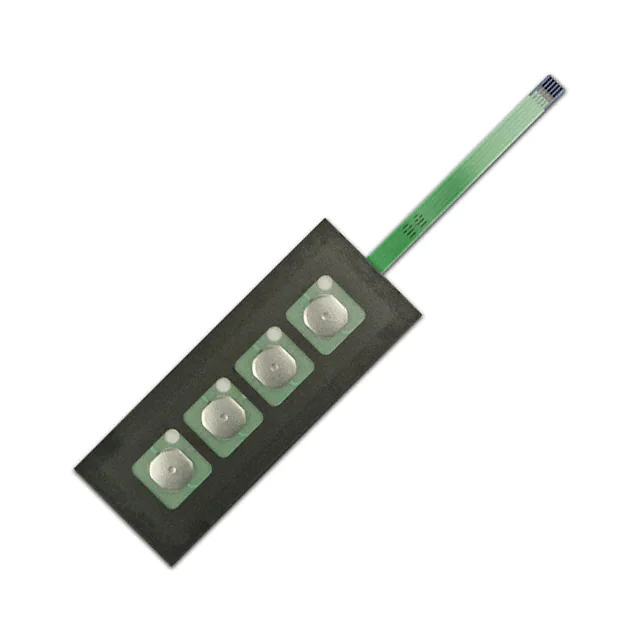

FMBN04BDSWITCH KEYPAD 4KEY 0.02A 24V NKK Switches |
127 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|

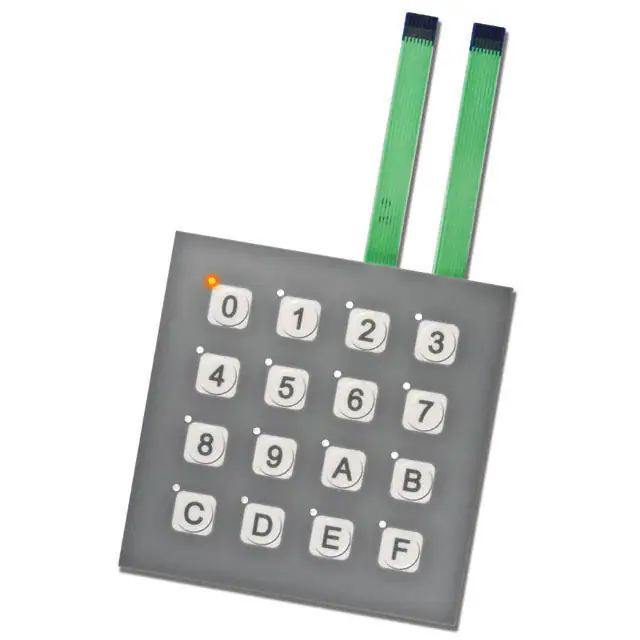

FMBP16BFSWITCH KEYPAD 16KEY 0.02A 24V NKK Switches |
1,243 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Illuminated - Amber | Fixed | Polyester Overlay | Matrix | 0 ~ 9, A ~ F | Gray | White | Panel Mount, Front | Cable with Connector | - | -15°C ~ 50°C | - | 2.1 VDC | 0.02A @ 24VDC | - |
|

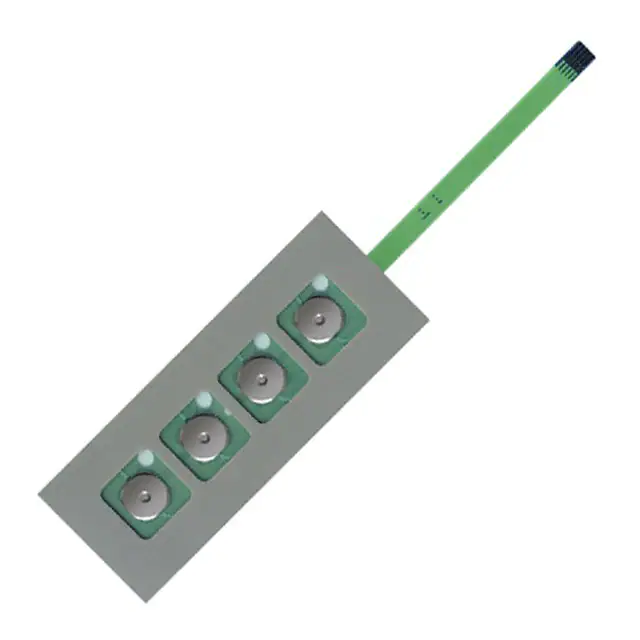

FMBN04BESWITCH KEYPAD 4KEY 0.02A 24V NKK Switches |
4,962 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|
FMBN16BESWITCH KEYPAD 16KEY 0.02A 24V NKK Switches |
1,144 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|

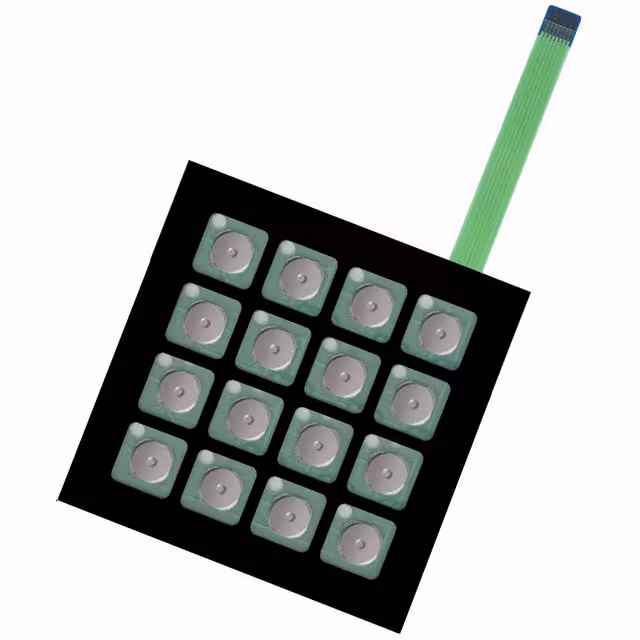

FMBN16BDSWITCH KEYPAD 16KEY 0.02A 24V NKK Switches |
3,584 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | Cable with Connector | - | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|

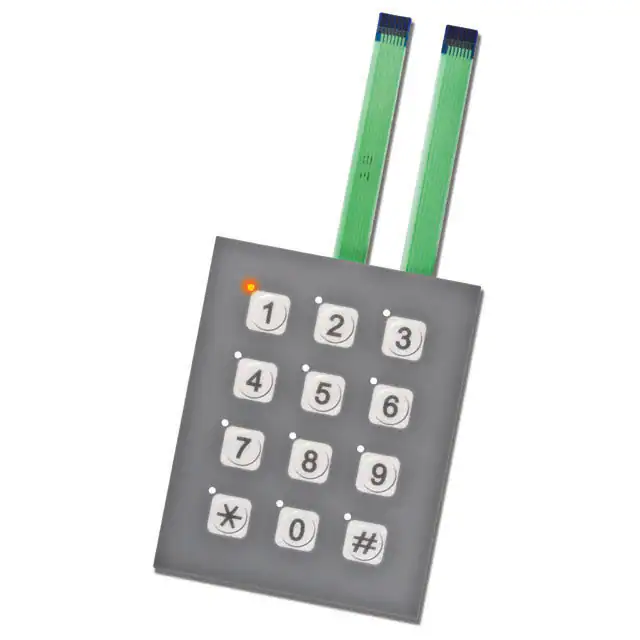

FMBP12BFSWITCH KEYPAD 12KEY 0.02A 24V NKK Switches |
1,455 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 12 | 3 x 4 | Illuminated - Amber | Fixed | Polyester Overlay | Matrix | Telephone Format | Gray | White | Panel Mount, Front | Cable with Connector | - | -15°C ~ 50°C | - | 2.1 VDC | 0.02A @ 24VDC | - |
