Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2D7AQ3SWITCH SNAP ACTION DPDT 16A 125V C&K |
1,587 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
TMCGF5SA1040CSWITCH SNAP ACTION SPDT 1A 125V C&K |
4,061 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.812" (20.6mm) | 0.071" (1.8mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
TFCJJ6ST1440CSWITCH SNAP ACTION SPDT 15A 277V C&K |
3,334 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 10gf | 0.730" (18.5mm) | 0.100" (2.5mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
ASKHF3P04ACSWITCH SNAP ACTION SPDT 25A 125V C&K |
1,388 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
|
TMCGD6SA2040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
2,408 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 10gf | 0.812" (20.6mm) | 0.140" (3.6mm) | 0.025" (0.6mm) | 0.060" (1.5mm) | -55°C ~ 150°C |
|

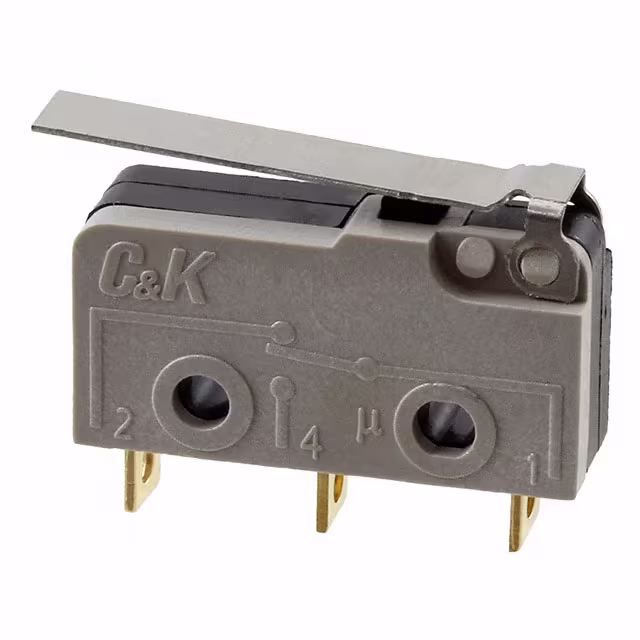

LCGGF5T10ECSWITCH SNAP ACTION SPDT 1A 125V C&K |
4,587 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 48gf | 6.000gf | 0.340" (8.6mm) | 0.140" (3.6mm) | 0.035" (0.9mm) | 0.029" (0.74mm) | -25°C ~ 85°C |
|
ASKHC2Q04ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
3,109 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
|
TMCJG6SA1540WSWITCH SNAP ACT SPST-NC 15A 125V C&K |
4,486 |
|
Datasheet |
TM | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 80gf | 20gf | 0.812" (20.6mm) | 0.161" (4.1mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -55°C ~ 150°C |
|
|
TFCJF5ST1440CSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,335 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 10gf | 0.730" (18.5mm) | 0.100" (2.5mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
TFCJH8VA155ACSWITCH SNAP ACTION SPDT 5A 227V C&K |
1,134 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 227 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 85gf | 10gf | 0.810" (20.57mm) | 0.100" (2.54mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
