Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12TL602SWITCH SNAP ACTION SPDT 15A 125V C&K |
3,357 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
12TL404SWITCH SNAP ACTION SPDT 15A 125V C&K |
4,687 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

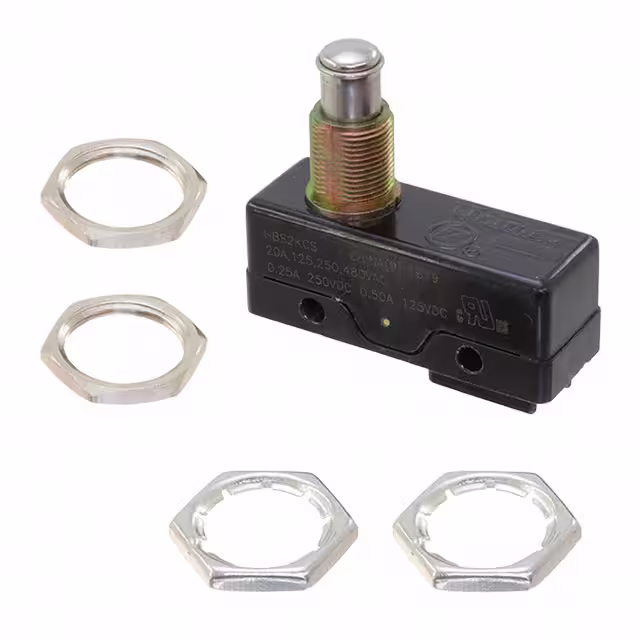

HBS2KCB4SJ011CSWITCH SNAP ACTION SPDT 20A 125V C&K |
1,768 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.860" (21.84mm) | 0.020" (0.5mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|
MMGGD1W2CSWITCH SNAP ACTION SPDT 7A 250V C&K |
1,301 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Turret | - | - | 170gf | 20gf | 0.531" (13.5mm) | 0.075" (1.9mm) | 0.012" (0.3mm) | 0.015" (0.4mm) | -55°C ~ 135°C |
|

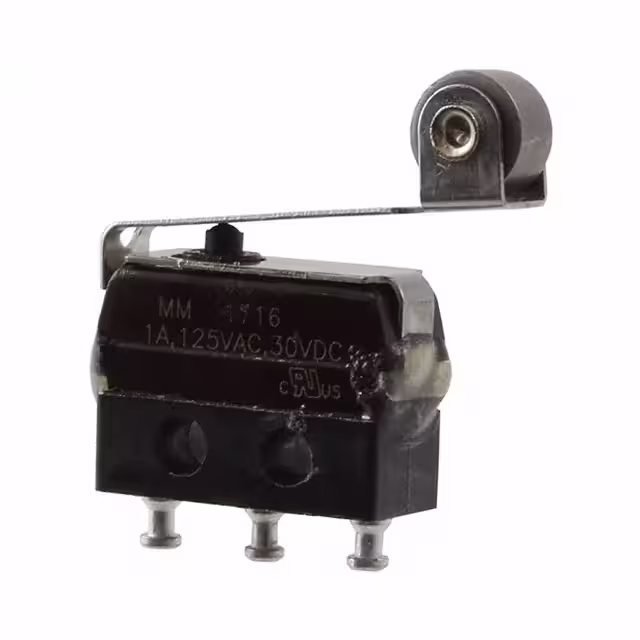

MMGGF5W0CSWITCH SNAP ACTION SPDT 1A 125V C&K |
2,744 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 115gf | 20gf | 0.531" (13.5mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|
HBS2KHB6SJ055CSWITCH SNAP ACTION SPDT 20A 125V C&K |
3,802 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 567gf | 113gf | 0.860" (21.84mm) | 0.025" (0.65mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|
HBS2KCF5SD055CSWITCH SNAP ACTION SPDT 1A 125V C&K |
3,127 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 368gf | 113gf | 0.844" (21.44mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.055" (1.4mm) | -55°C ~ 150°C |
|
11TL4A2SWITCH SNAP ACTION SPDT 15A 125V C&K |
3,582 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
|
MMGGD1P0RSWITCH SNAP ACTION SPDT 7A 250V C&K |
4,219 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 142gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 135°C |
|
12TL4A2SWITCH SNAP ACTION SPDT 15A 125V C&K |
2,612 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
