Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCMN2115L1SWITCH LIMIT DPST 1.5A 240V |
2,028 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
83139003SWITCH SNAP ACTION SPDT 5A 125V |
4,791 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 306gf | 61gf | 0.303" (7.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | 0°C ~ 85°C |
|
|
83139503SWITCH SNAP ACTION SPDT 5A 125V |
4,870 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 306gf | 61gf | 0.303" (7.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | 0°C ~ 85°C |
|
83139518SWITCH SNAP ACTION SPDT 5A 125V |
4,980 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 306gf | 61gf | 0.343" (8.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | 0°C ~ 85°C |
|
|
83111064SWITCH SNAP ACTION SPDT 10A 250V |
1,288 |
|
Datasheet |
83111 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 408gf | 102gf | - | 0.028" (0.7mm) | 0.020" (0.5mm) | 0.026" (0.7mm) | -40°C ~ 85°C |
|
|
83131701SWITCH SNAP ACT QC ROLLER PLNG |
2,502 |
|
- |
83131 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03RASWITCH LIMIT RECEPTACLE 1NO/1NC |
3,648 |
|
- |
- | Box | Active | SPST-NC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

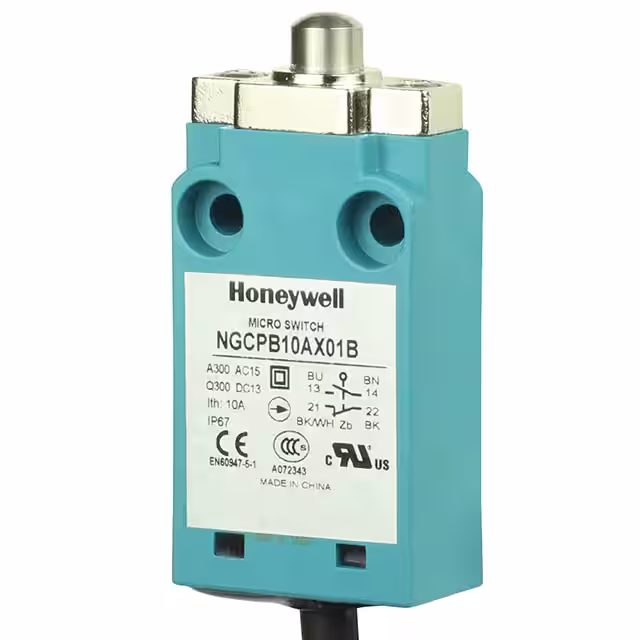

NGCPB10AX01BSWITCH SNAP ACTION DPST 6A 120V |
1,734 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
6SX3-TSWITCH SUBMINI BASIC |
4,727 |
|
- |
SX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | - | - | - | - | - | - | -53°C ~ 204°C |
|
|
D4N-1220SWITCH SNAP ACT DPST-NC 3A 240V |
1,434 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
|
D4N-4E32SWITCH SNAP ACTION DPST 3A 240V |
3,987 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.100" (28.0mm) | 0.110" (2.8mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
|
Z-15GW-BTSWITCH SNAP ACTION SPDT 15A 125V |
2,633 |
|
Datasheet |
Z | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
|
BFL1-AW2-BPSWITCH SNAP ACTION SPDT 5A 125V |
4,204 |
|
- |
BF | Bulk | Not For New Designs | SPDT | On-Mom | 5A (AC) | 125 V | - | Spring, Rod | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 198gf | - | 15° | - | - | - | -32°C ~ 71°C |
|
|
NGCPB07BX07A6ASWITCH COMPACT LIMIT |
4,124 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12SX15-TSWITCH SNAP ACTION SPDT 1A 28V |
3,007 |
|
Datasheet |
SX | Bulk | Obsolete | SPDT | On-Mom | 1A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.003" (0.076mm) | -55°C ~ 125°C |
|
|
608.1100.272SWITCH LIMIT BODY ONLY |
1,665 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLDA06DSWITCH SNAP ACTION DPST 6A 120V |
2,303 |
|
Datasheet |
GLS | Bulk | Obsolete | DPST-NC (DB) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 953gf | - | 1.409" (35.8mm) | 0.138" (3.5mm) | 0.050" (1.3mm) | 0.205" (5.2mm) | -40°C ~ 85°C |
|
|
NGCPB10AX01A2BSWITCH SNAP ACTION |
1,519 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMN2910L1SWITCH SNP ACT DPST-NC 1.5A 240V |
3,690 |
|
Datasheet |
XC | Box | Active | DPST-NC | On-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
NGCMB00NX01CSWITCH SNAP ACTION DPST 6A 120V |
4,890 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
