Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
602.3000.014SWITCH LIMIT DPST 3A 240V |
4,694 |
|
Datasheet |
M49 | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC), 2A (DC) | 240 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.3000.012SWITCH LIMIT DPST 3A 240V |
2,651 |
|
Datasheet |
M49 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 240 V | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.3000.046SWITCH LIMIT METAL BODY |
2,172 |
|
Datasheet |
M49 | Bulk | Active | 4PST-2NO/2NC | On-Off, Off-On | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
|
|
602.3000.045SWITCH LIMIT 4PST 3A 240V |
1,907 |
|
Datasheet |
M49 | Bulk | Active | 4PST-2NO/2NC | On-Off, Off-On | 3A (AC), 2A (DC) | 240 V | 24 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
BZE6-2AN5SWITCH SNAP ACTION SPDT 15A 125V |
2,022 |
|
Datasheet |
E6 | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 567 ~ 1502gf | 283gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.004" (0.1mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|

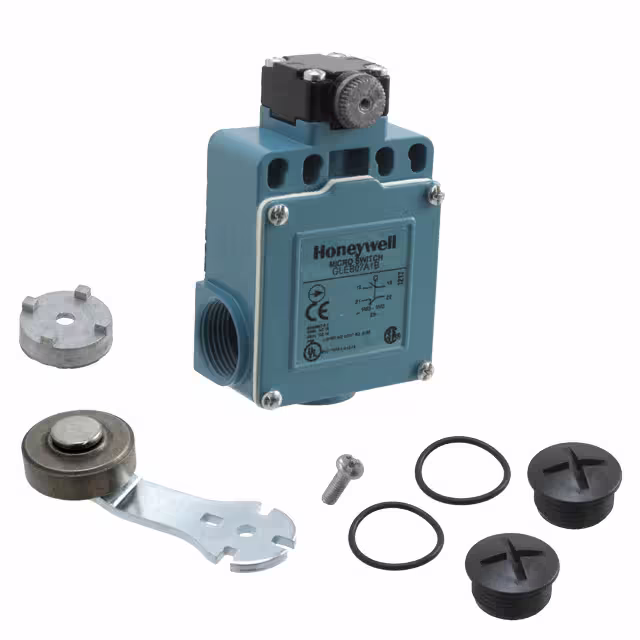

GLEB07A1BSWITCH SNAP ACTION SPDT 0.1A 50V |
3,386 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 17gfm | - | 26° | 26° | 8° | 49° | -40°C ~ 85°C |
|
|
618.8153.020SWITCH LIMIT PLASTIC BODY |
1,867 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DZ-10GW255-1BSWITCH SNAP ACTION DPDT 10A 125V |
2,175 |
|
Datasheet |
DZ | Bulk | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
|
601.6139.034SWITCH SAFETY INTERLOCK |
4,277 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.7800.045SWITCH LIMIT METAL BODY |
1,858 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKP2128N12SWITCH LIMIT 3A 240V |
3,460 |
|
Datasheet |
XCKP | Box | Active | - | - | 3A (AC) | 240 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.1000.049SWITCH LIMIT DPST 5A 240V |
2,725 |
|
Datasheet |
IN73 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 240 V | - | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
|
|
608.1000.014SWITCH LIMIT DPST 5A 240V |
2,248 |
|
Datasheet |
IN73 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 240 V | - | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
|
|
608.6187.042SWITCH LIMIT |
2,064 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.8167.008SWITCH LIMIT PLASTIC BODY |
2,579 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.1000.064SWITCH LIMIT DPST-NC 5A 240V |
1,700 |
|
Datasheet |
IN73 | Bulk | Active | DPST-NC | On-Mom | 5A (AC) | 240 V | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
|
|
608.1000.067SWITCH LIMIT DPST 5A 240V |
3,766 |
|
Datasheet |
IN73 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 240 V | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
|
|
608.1000.059SWITCH LIMIT 4PST 1.5A 240V |
4,730 |
|
Datasheet |
IN73 | Bulk | Active | 4PST-3NC/1NO | On-Off, Off-On | 1.5A (AC/DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
|
|
608.1000.060SWITCH LIMIT 4PST 1.5A 240V |
3,350 |
|
Datasheet |
IN73 | Bulk | Active | 4PST-3NO/1NC | On-Off, Off-On | 1.5A (AC/DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
|
|
608.1000.058SWITCH LIMIT 4PST-NC 1.5A 240V |
1,564 |
|
Datasheet |
IN73 | Bulk | Active | 4PST-NC | On-Off | 1.5A (AC/DC) | 240 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -30°C ~ 75°C |
