Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH 203 FA RN29ASENSOR PHOTODIODE 900NM RADIAL ams-OSRAM USA INC. |
2,885 |
|
Datasheet |
- | Radial | Bulk | Obsolete | 900nm | - | 800nm ~ 1100nm | PIN | 0.6 A/W @ 850nm | 5ns | 50 V | 1nA | 1mm² | 40° | -40°C ~ 100°C | - | - | Through Hole |
|
|
SFH 203 PFA RN18ASENSOR PHOTODIODE 900NM RADIAL ams-OSRAM USA INC. |
3,521 |
|
Datasheet |
- | Radial | Bulk | Obsolete | 900nm | - | 750nm ~ 1100nm | PIN | 0.62 A/W @ 850nm | 5ns | 50 V | 1nA | 1mm² | 150° | -40°C ~ 100°C | - | - | Through Hole |
|
|
SFH 235 FA-XXSENSOR PHOTODIODE PIN RADIAL ams-OSRAM USA INC. |
3,950 |
|
- |
- | Radial, Side View | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole |
|

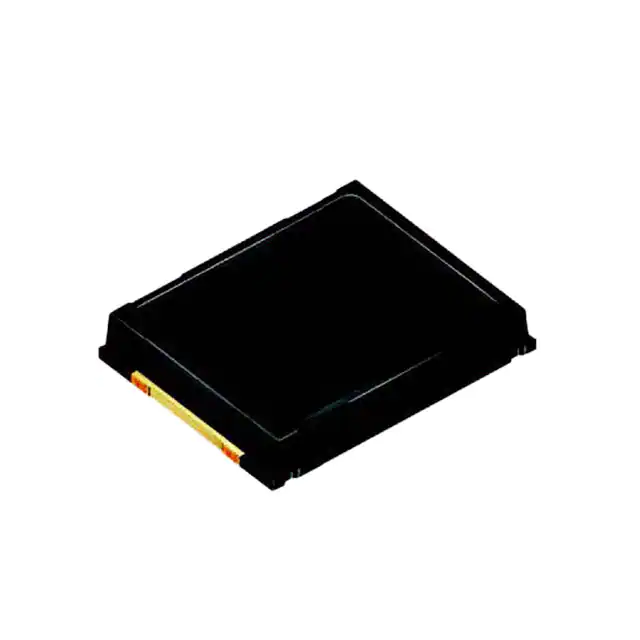

SFH 2200 FASENSOR PHOTODIODE 940NM 2SMD ams-OSRAM USA INC. |
2,868 |
|
Datasheet |
Power TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | 940nm | - | 740nm ~ 1100nm | PIN | - | 40ns | 20 V | 1nA | 7.02mm² | 120° | -40°C ~ 85°C | - | - | Surface Mount |
|

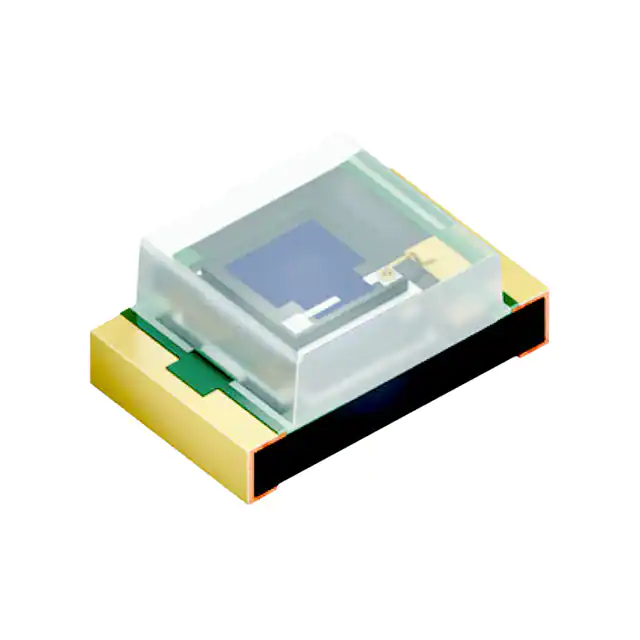

SFH 2716SENSOR PHOTODIODE 620NM 0805 ams-OSRAM USA INC. |
1,086 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 620nm | - | 350nm ~ 1000nm | PIN | - | - | 16 V | 5nA | 0.35mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
BP 104 BS-ZSENSOR PHOTODIODE DIL SMD ams-OSRAM USA INC. |
4,348 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SFH 2200DSENSOR PHOTODIODE 2SMD ams-OSRAM USA INC. |
1,695 |
|
- |
- | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
SFH 2240DSENSOR PHOTODIODE 620NM 2SMD ams-OSRAM USA INC. |
2,434 |
|
- |
Power TOPLED® | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | 620nm | - | 400nm ~ 690nm | - | 0.37 A/W @ 550nm | 90ns | 16 V | 1nA | 7.02mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
|
|
SFH 325 FAG-ZSENSOR PHOTODIODE SIDE 2PLCC ams-OSRAM USA INC. |
2,084 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BP 104 S R33 C1003SENSOR PHOTODIODE 850NM 2SMD ams-OSRAM USA INC. |
2,118 |
|
- |
- | 2-SMD, Z-Bend | Tape & Reel (TR) | Obsolete | 850nm | - | 400nm ~ 1100nm | PIN | 0.62 A/W @ 850nm | 20ns | 20 V | 2nA | 4.84mm² | 120° | -40°C ~ 100°C | - | - | Surface Mount |
