Phototransistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Dark (Id) (Max) | Wavelength | Viewing Angle | Power - Max | Mounting Type | Orientation | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNZ107SENSOR PHOTO 900NM TOP TO18-2 Panasonic Electronic Components |
1,674 |
|
Datasheet |
- | TO-18-2 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|

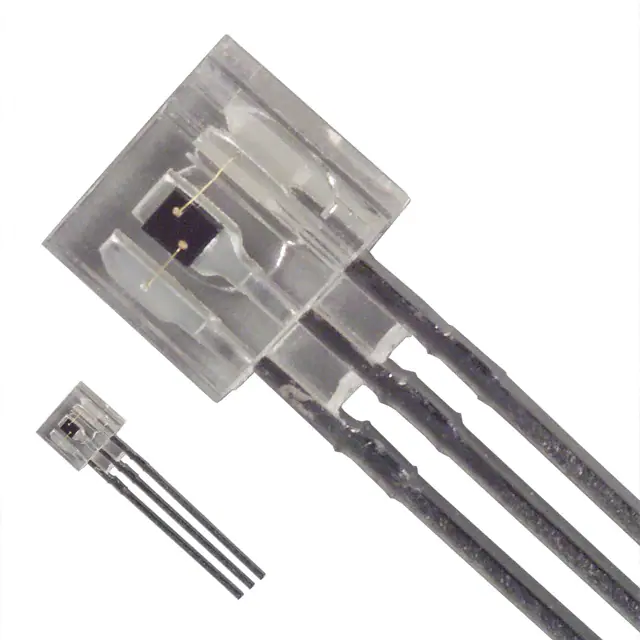

PNA1605FSENSOR PHOTO 900NM SIDE VIEW RAD Panasonic Electronic Components |
2,827 |
|
Datasheet |
- | Radial | - | Obsolete | 20 V | 20 mA | 2 µA | 900nm | 140° | 100 mW | Through Hole | Side View | - | - | - |
|

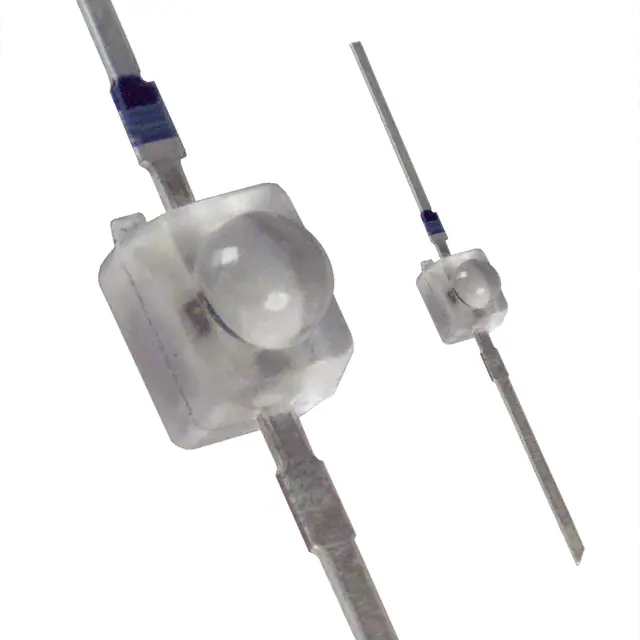

PNZ12700SSENSOR PHOTO 800NM TOP VIEW AXL Panasonic Electronic Components |
4,378 |
|
Datasheet |
- | Axial, Flat Leads | - | Obsolete | 20 V | 20 mA | 100 nA | 800nm | 28° | 50 mW | Through Hole | Top View | - | - | - |
|
PNZ154SENSOR PHOTO 800NM SIDE VIEW RAD Panasonic Electronic Components |
4,410 |
|
Datasheet |
- | Radial | - | Obsolete | 20 V | 20 mA | 2 µA | 800nm | 54° | 100 mW | Through Hole | Side View | - | - | - |
|
PNA1801LSENSOR PHOTO 800NM TOP VIEW T1 Panasonic Electronic Components |
3,914 |
|
Datasheet |
- | T-1 | - | Obsolete | 30 V | 20 mA | 500 nA | 800nm | 60° | 100 mW | Through Hole | Top View | - | - | - |
|

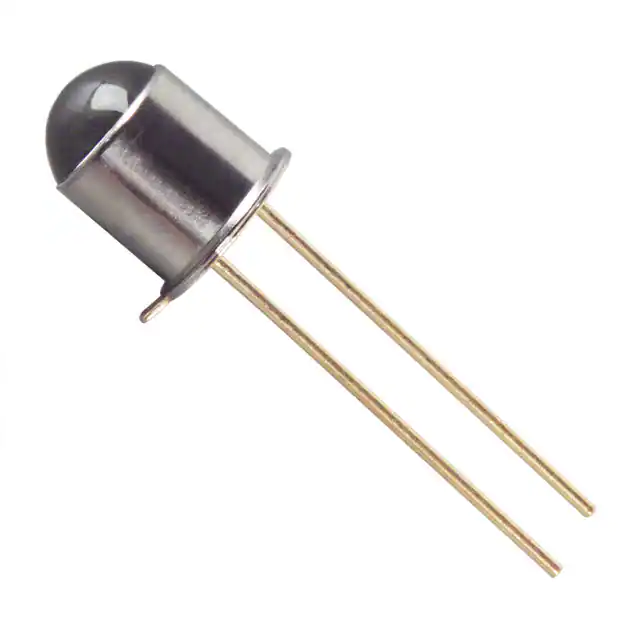

PNA1401LSENSOR PHOTO 800NM TOP TO18-2 Panasonic Electronic Components |
4,365 |
|
Datasheet |
- | TO-18-2 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|

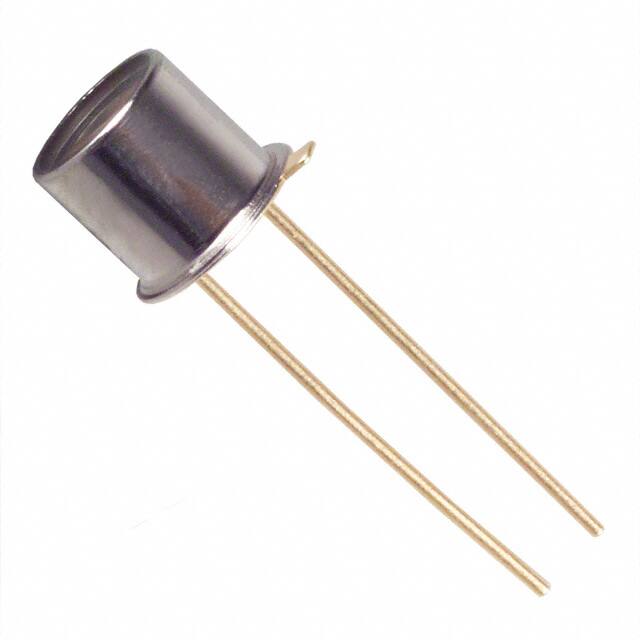

PNA1401LFSENSOR PHOTO 800NM TOP TO18-2 Panasonic Electronic Components |
1,021 |
|
Datasheet |
- | TO-18-2 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 80° | 150 mW | Through Hole | Top View | - | - | - |
|
PNZ102SENSOR PHOTO 800NM TOP TO206AA Panasonic Electronic Components |
3,009 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 30 V | 50 mA | 300 nA | 800nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108SENSOR PHOTO 900NM TOP TO206AA Panasonic Electronic Components |
2,982 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 20° | 150 mW | Through Hole | Top View | - | - | - |
|
|
PNZ108FSENSOR PHOTO 900NM TOP TO206AA Panasonic Electronic Components |
4,884 |
|
Datasheet |
- | TO-206AA, TO-18-3 Metal Can | - | Obsolete | 20 V | 30 mA | 2 µA | 900nm | 80° | 150 mW | Through Hole | Top View | - | - | - |
