Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
160F34PWR XFMR LAMINATED 4.4VA TH Hammond Manufacturing |
3,818 |
|
Datasheet |
160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 250mA, Series 125mA | Dual | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms | 0.33 lb (149.69 g) |
|
161E24PWR XFMR LAMINATED 1.2VA TH Hammond Manufacturing |
1,719 |
|
Datasheet |
161 | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 100mA, Series 50mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
164F120PWR XFMR LAMINATED 6VA TH Hammond Manufacturing |
1,567 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
162E56PWR XFMR LAMINATED 2.4VA TH Hammond Manufacturing |
3,386 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
161E28PWR XFMR LAMINATED 1.2VA TH Hammond Manufacturing |
3,221 |
|
Datasheet |
161 | Bulk | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.2 lb (90.72 g) |
|

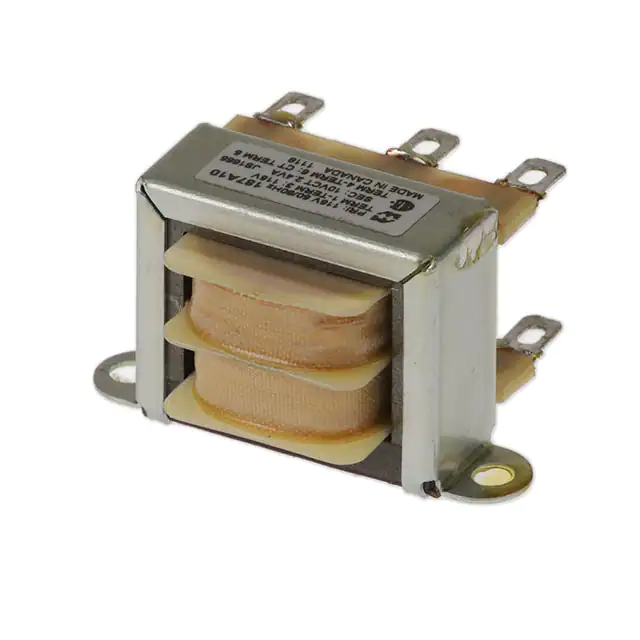

187A10PWR XFMR LAMINATED 2.5VA CHAS MT Hammond Manufacturing |
2,632 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 10V | 250mA | Single | Single | Yes | 2.5VA | Chassis Mount | Solder, Quick Connect | 52.32mm L x 36.45mm W | 29.97mm | 2000Vrms | 0.32 lb (145.15 g) |
|
|
160G34PWR XFMR LAMINATED 10VA TH Hammond Manufacturing |
2,184 |
|
Datasheet |
160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 600mA, Series 300mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms | 0.6 lb (272.16 g) |
|

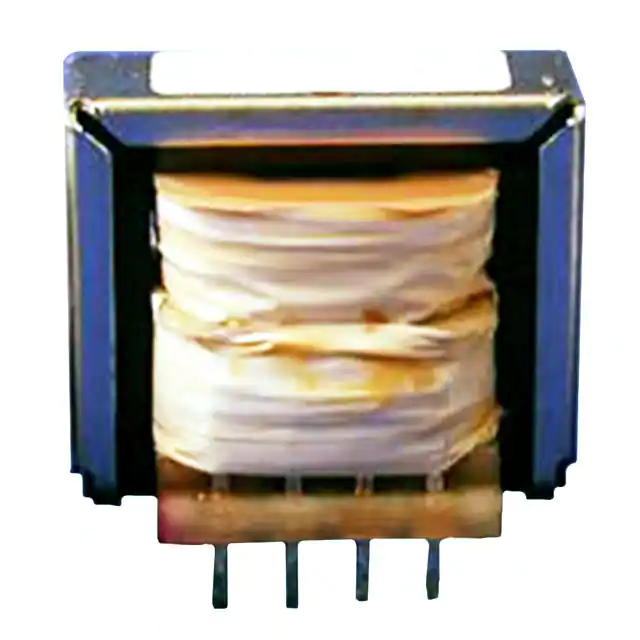

160E34PWR XFMR LAMINATED 1.2VA TH Hammond Manufacturing |
3,066 |
|
Datasheet |
160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 70mA, Series 35mA | Dual | Single, Multiple Taps | No | 1.2VA | Through Hole | PC Pin | 35.05mm L x 30.23mm W | 30.99mm | 2000Vrms | 0.19 lb (86.18 g) |
|
|
187A16PWR XFMR LAMINATED 2.4VA CHAS MT Hammond Manufacturing |
4,514 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 16V | 150mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.32mm L x 36.45mm W | 29.97mm | 2000Vrms | 0.35 lb (158.76 g) |
|
164E16PWR XFMR LAMINATED 2.4VA TH Hammond Manufacturing |
2,461 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 300mA, Series 150mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.18mm | 2500Vrms | 0.25 lb (113.4 g) |
