Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
739PWR XFMR LAMINATED 1400VA CHAS Hammond Manufacturing |
4,190 |
|
Datasheet |
700 | Bulk | Active | Laminated Core | 115V | 3500V | 400mA | Single | Single | Yes | 1400VA | Chassis Mount | Wire Leads | 127.00mm L x 193.80mm W | 165.10mm | - | 35 lbs (15.9 kg) |
|
PWDM13037PWR XFMR CHAS MT Hammond Manufacturing |
3,504 |
|
Datasheet |
PWDAHL | Case | Active | - | 1800V, 2400V | 1768V | 283mA | Single, Multiple Taps | Single | Yes | - | Chassis Mount | Wire Leads | 227.97mm L x 178.44mm W | 139.70mm | - | - |
|
|
742APWR XFMR 1250VA CHAS MT Hammond Manufacturing |
2,230 |
|
Datasheet |
- | Bulk | Active | - | 117V, 234V | 5000V | 250mA | Dual | Single | Yes | 1250VA | Chassis Mount | Wire Leads | 134.14mm L x 192.94mm W | 161.57mm | 7250V | - |
|
|
PWDP13082PWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
4,717 |
|
Datasheet |
PWDAHL | Case | Active | Laminated Core | 115V | 2000V | 430mA | Dual | Dual | Yes | - | Chassis Mount | Wire Leads | - | - | - | - |
|
|
PWDI13097PWR XFMR Hammond Manufacturing |
3,352 |
|
Datasheet |
- | Case | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PWDP13124PWR XFMR CHAS MT Hammond Manufacturing |
4,094 |
|
Datasheet |
PWDAHL | Bulk | Active | - | 115V, 230V | 6.32kV, 245V | 350mA, 350mA | Dual | Dual | Yes | - | Chassis Mount | Terminal Block | 190.50mm L x 190.50mm W | 228.60mm | - | - |
|

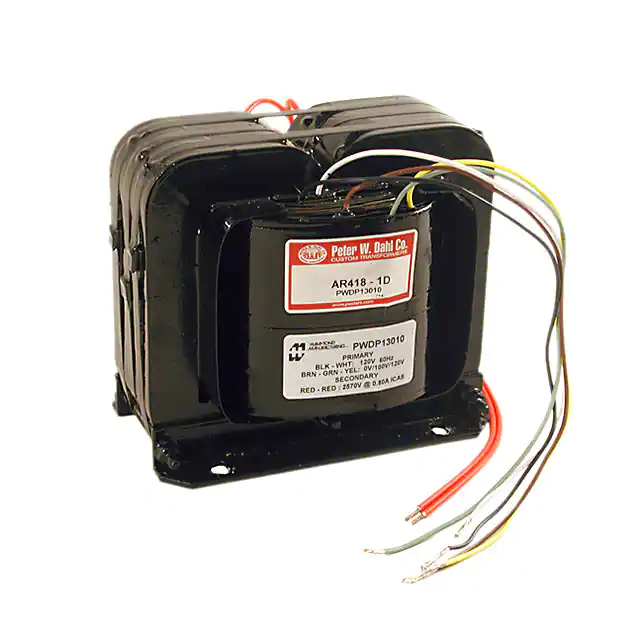

PWDP13010PWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
2,109 |
|
Datasheet |
PWDAHL | Case | Active | Laminated Core | 120V | 2570V | 800mA | Dual, Multiple Taps | Single | No | - | Chassis Mount | Wire Leads | 179.40mm L x 198.76mm W | 180.98mm | - | - |
|
|
PWDP13039PWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
2,222 |
|
Datasheet |
PWDAHL | Case | Active | Laminated Core | - | - | - | - | - | - | - | Chassis Mount | Wire Leads | - | 184.15mm | - | - |
|
|
PWDP13084PWR XFMR CHAS MT Hammond Manufacturing |
2,772 |
|
Datasheet |
PWDAHL | Bulk | Active | - | 230V | 4kV, 3kV | 600mA | Single, Multiple Taps | Single | No | - | Chassis Mount | Terminal Block | 177.80mm L x 161.93mm W | 226.06mm | - | - |
|

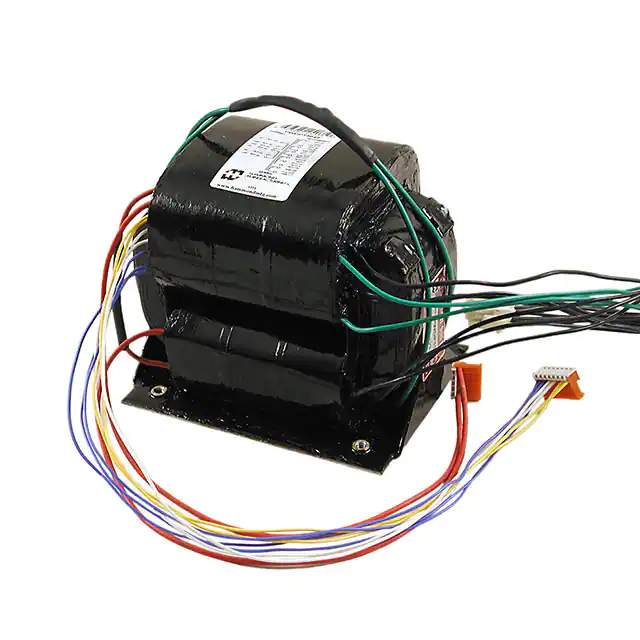

PWDP13049PWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
4,458 |
|
Datasheet |
PWDAHL | Case | Active | Laminated Core | 100V, 120V | 2050V, 390V, 105V, 28V, 13.3V | 500mA, 3A, 7.2A | - | - | Yes | - | Chassis Mount | Wire Leads | 196.85mm L x 158.75mm W | 168.27mm | - | - |
