Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
226DPWR XFMR SEMI-TORO 1VA TH Hammond Manufacturing |
4,707 |
|
Datasheet |
226 | Bulk | Obsolete | Semi-Toroidal | 115V | Parallel 10V, Series 20V | Parallel 100mA, Series 50mA | Single | Dual | No | 1VA | Through Hole | PC Pin | 43.94mm L x 34.29mm W | 20.32mm | - | 0.22 lb (99.79 g) |
|

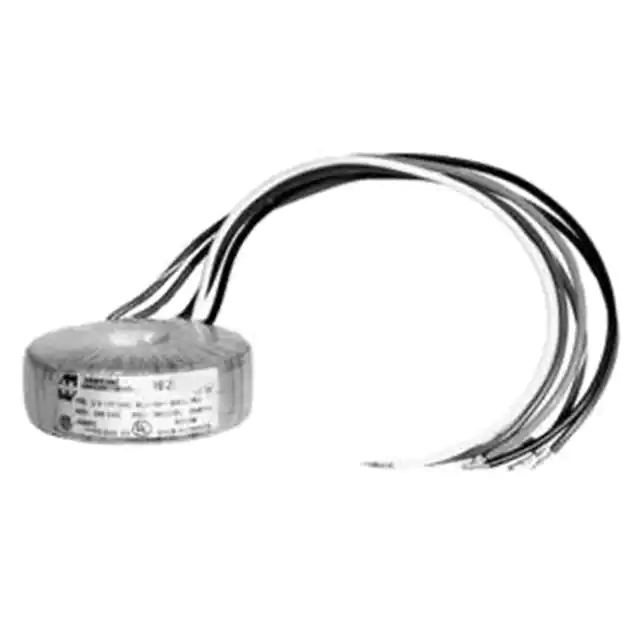

182E117PWR XFMR TOROIDAL 30VA CHAS MT Hammond Manufacturing |
4,643 |
|
Datasheet |
182 | Bulk | Obsolete | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 256mA, Series 128mA | Dual | Dual | No | 30VA | Chassis Mount | Wire Leads | - | 42.67mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
182E110PWR XFMR TOROIDAL 30VA CHAS MT Hammond Manufacturing |
4,096 |
|
Datasheet |
182 | Bulk | Obsolete | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 272mA, Series 136mA | Dual | Dual | No | 30VA | Chassis Mount | Wire Leads | - | 42.67mm | 4000Vrms | 1.2 lbs (544.3 g) |
|
291DXPWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
3,366 |
|
Datasheet |
291 | Box | Obsolete | Laminated Core | 120V | 650V, 6.3V, 5V | 230mA, 4A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 87.33mm L x 103.20mm W | 106.38mm | - | 8 lbs (3.6 kg) |
|
|
290AEXPWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
4,066 |
|
Datasheet |
290 | Box | Obsolete | Laminated Core | 240V | 650V, 6.3V, 5V | 81mA, 2A, 2A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 63.50mm L x 71.55mm W | 77.80mm | - | 3 lbs (1.4 kg) |
|
|
291FEXPWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
1,232 |
|
Datasheet |
291 | Box | Obsolete | Laminated Core | 240V | 640V, 6.5V | 518mA, 5.5A | Single | Dual | Yes | - | Chassis Mount | Wire Leads | 95.25mm L x 119.13mm W | 115.90mm | - | 12 lbs (5.4 kg) |
|
|
291DEXPWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
4,961 |
|
Datasheet |
291 | Box | Obsolete | Laminated Core | 240V | 650V, 6.3V, 5V | 230mA, 4A, 3A | Single | Triple | Yes | - | Chassis Mount | Wire Leads | 87.33mm L x 103.20mm W | 106.38mm | - | 8 lbs (3.6 kg) |
|
1182Q240PWR XFMR TOROIDAL 1500VA CHAS MT Hammond Manufacturing |
1,451 |
|
Datasheet |
1182 | Box | Obsolete | Toroidal | 117V, 234V | 240V | 6.3A | Dual | Single | No | 1500VA | Chassis Mount | Wire Leads | 187.96mm Dia | - | 4000Vrms | - |
|
|
1182T117PWR XFMR TOROIDAL 1500VA CHAS MT Hammond Manufacturing |
2,343 |
|
Datasheet |
1182 | Box | Obsolete | Toroidal | 117V, 234V | Parallel 117V, Series 234V | Parallel 12.8A, Series 6.4A | Dual | Dual | No | 1500VA | Chassis Mount | Wire Leads | 187.96mm Dia | - | 4000Vrms | - |
|
|
1182U110PWR XFMR TOROIDAL 1500VA CHAS MT Hammond Manufacturing |
2,366 |
|
Datasheet |
1182 | Box | Obsolete | Toroidal | 117V, 234V | Parallel 110V, Series 220V | Parallel 13.6A, Series 6.8A | Dual | Dual | No | 1500VA | Chassis Mount | Wire Leads | 187.96mm Dia | - | 4000Vrms | - |
