Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
164H36PWR XFMR LAMINATED 20VA TH Hammond Manufacturing |
3,248 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
229B16PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing |
3,916 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms | 0.62 lb (281.23 g) |
|
|
229B40PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing |
3,398 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 600mA, Series 300mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms | 0.6 lb (272.16 g) |
|
162J56PWR XFMR LAMINATED 36VA TH Hammond Manufacturing |
3,452 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
229B230PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing |
1,052 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 100mA, Series 50mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms | 0.61 lb (276.69 g) |
|
166L14PWR XFMR LAMINATED 28VA CHAS MT Hammond Manufacturing |
4,294 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 14V | 2A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | 1.4 lbs (635 g) |
|

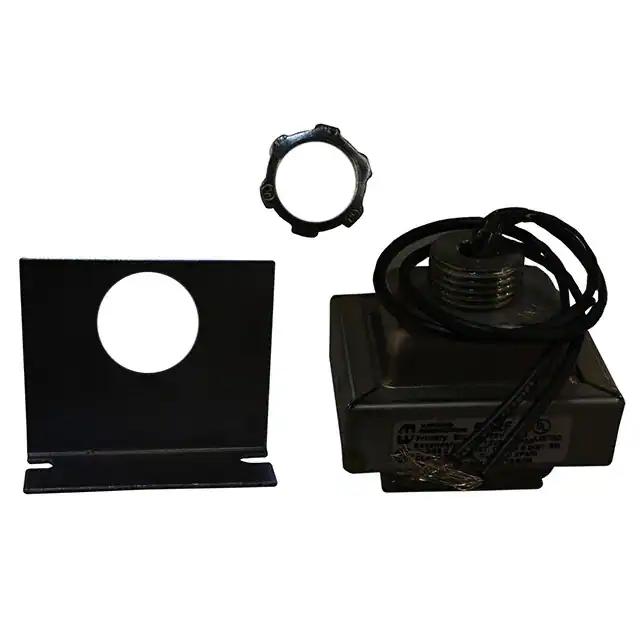

BA2DAPWR XFMR LAMINATED 5VA CHAS MT Hammond Manufacturing |
2,555 |
|
Datasheet |
BA | Bulk | Active | Laminated Core | 120V | 10V | 500mA | Single | Single | No | 5VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - | 0.93 lb (421.84 g) |
|
BC2FPWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing |
3,409 |
|
Datasheet |
BC | Bulk | Active | Laminated Core | 120V | 16V | 750mA | Single | Single | No | 12VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - | 0.98 lb (444.52 g) |
|
186D16PWR XFMR LAMINATED 32VA CHAS MT Hammond Manufacturing |
2,723 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 16V | 2A | Dual | Single | Yes | 32VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms | 1.3 lbs (589.7 g) |
|
|
186D36PWR XFMR LAMINATED 30.6VA CHAS Hammond Manufacturing |
2,923 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 36V | 850mA | Dual | Single | Yes | 30.6VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms | 1.3 lbs (589.7 g) |
