Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
186B56PWR XFMR LAMINATED 6.16VA CHAS Hammond Manufacturing |
1,820 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 56V | 110mA | Dual | Single | Yes | 6.16VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms | 0.6 lb (272.16 g) |
|
|
186B120PWR XFMR LAMINATED 6VA CHAS MT Hammond Manufacturing |
3,784 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 120V | 50mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms | 0.43 lb (195.04 g) |
|
|
186B48PWR XFMR LAMINATED 6VA CHAS MT Hammond Manufacturing |
2,660 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 48V | 120mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms | 0.44 lb (199.58 g) |
|
166E18PWR XFMR LAMINATED 5.4VA CHAS MT Hammond Manufacturing |
3,094 |
|
Datasheet |
166 | Box | Active | Laminated Core | 115V | 18V | 300mA | Single | Single | Yes | 5.4VA | Chassis Mount | Wire Leads | 60.45mm L x 38.10mm W | 35.05mm | 2000Vrms | 0.5 lb (226.8 g) |
|
266E12PWR XFMR LAMINATED 1.8VA CHAS MT Hammond Manufacturing |
4,330 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 300mA, Series 150mA | Dual | Dual | No | 1.8VA | Chassis Mount | Wire Leads | 52.32mm L x 30.99mm W | 31.75mm | 2000Vrms | 0.28 lb (127.01 g) |
|

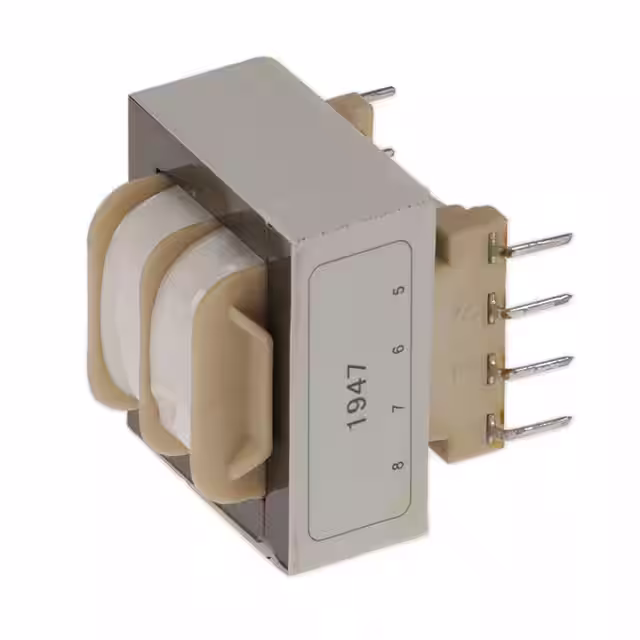

162E10PWR XFMR LAMINATED 2.4VA TH Hammond Manufacturing |
2,787 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms | 0.25 lb (113.4 g) |
|
164G16PWR XFMR LAMINATED 12VA TH Hammond Manufacturing |
4,948 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
187C36PWR XFMR LAMINATED 12.6VA CHAS Hammond Manufacturing |
2,843 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 36V | 350mA | Single | Single | Yes | 12.6VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms | 0.68 lb (308.44 g) |
|
161G16PWR XFMR LAMINATED 10VA TH Hammond Manufacturing |
1,229 |
|
Datasheet |
161 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.28A, Series 640mA | Single | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms | 0.57 lb (258.55 g) |
|
|
161G28PWR XFMR LAMINATED 10VA TH Hammond Manufacturing |
3,762 |
|
Datasheet |
161 | Bulk | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 720mA, Series 360mA | Single | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 49.28mm L x 36.58mm W | 42.93mm | 2000Vrms | 0.65 lb (294.84 g) |
