Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD2EEPWR XFMR LAMINATED 20VA CHAS MT Hammond Manufacturing |
2,861 |
|
Datasheet |
BD | Bulk | Active | Laminated Core | 120V | 14V | 1.43A | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - | 1.2 lbs (544.3 g) |
|
229B34PWR XFMR SEMI-TORO 12VA TH Hammond Manufacturing |
3,548 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 680mA, Series 340mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 50.80mm L x 63.50mm W | 27.18mm | 1750Vrms | 0.64 lb (290.3 g) |
|
162H28PWR XFMR LAMINATED 20VA TH Hammond Manufacturing |
4,188 |
|
Datasheet |
162 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.52mm | 2500Vrms | 0.8 lb (362.87 g) |
|
BC2GPWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing |
2,670 |
|
Datasheet |
BC | Bulk | Active | Laminated Core | 120V | 24V | 500mA | Single | Single | No | 12VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - | 1 lb (453.59 g) |
|
166F12PWR XFMR LAMINATED 3.78VA CHAS Hammond Manufacturing |
1,297 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 12.6V | 300mA | Single | Single | Yes | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 35.05mm W | 35.05mm | 2000Vrms | 0.4 lb (181.44 g) |
|
186D10PWR XFMR LAMINATED 30VA CHAS MT Hammond Manufacturing |
4,921 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 10V | 3A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 52.20mm W | 49.02mm | 2000Vrms | 1.3 lbs (589.7 g) |
|

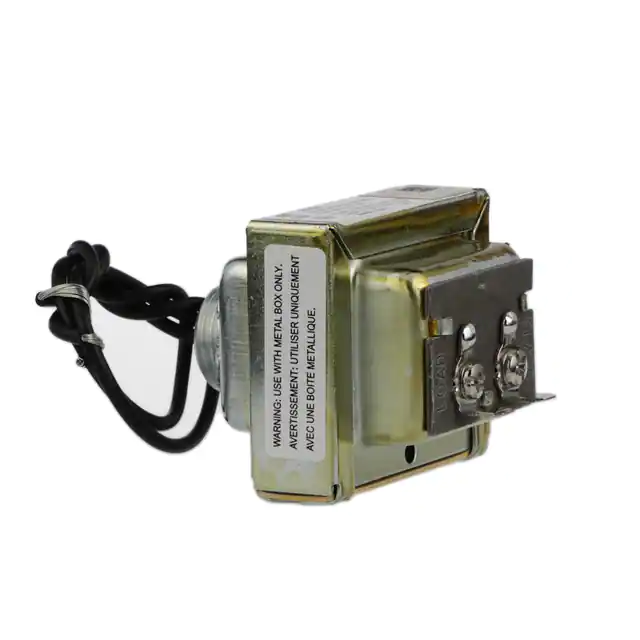

BC2DAPWR XFMR LAMINATED 12VA CHAS MT Hammond Manufacturing |
4,979 |
|
Datasheet |
BC | Bulk | Active | Laminated Core | 120V | 10V | 1.2A | Single | Single | No | 12VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 56.39mm W | 50.29mm | - | 1.1 lbs (499 g) |
|
161H40PWR XFMR LAMINATED 24VA TH Hammond Manufacturing |
3,716 |
|
Datasheet |
161 | Bulk | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.87 lb (394.63 g) |
|
266JB24PWR XFMR CHAS MT Hammond Manufacturing |
3,417 |
|
Datasheet |
266 | Bulk | Active | - | - | - | - | - | - | - | - | Chassis Mount | - | - | - | - | - |
|
|
BD5GPWR XFMR LAMINATED 20VA CHAS MT Hammond Manufacturing |
1,269 |
|
Datasheet |
BD | Bulk | Active | Laminated Core | 240V | 24V | 830mA | Single | Single | No | 20VA | Chassis Mount | Wire Leads, Quick Connect | 59.18mm L x 59.44mm W | 50.29mm | - | 1.2 lbs (544.3 g) |
