Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

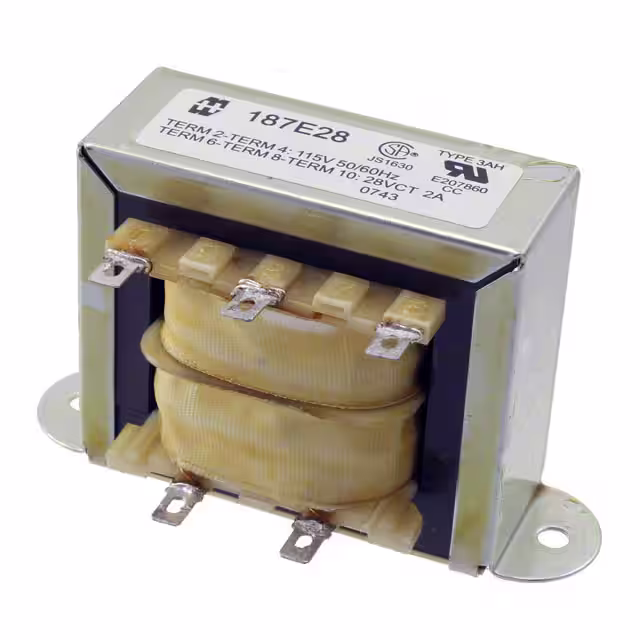

187E28PWR XFMR LAMINATED 56VA CHAS MT Hammond Manufacturing |
3,750 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
187E20PWR XFMR LAMINATED 56VA CHAS MT Hammond Manufacturing |
2,160 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 20V | 2.8A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms | 1.7 lbs (771.1 g) |
|
166M8PWR XFMR LAMINATED 25.5VA CHAS Hammond Manufacturing |
3,944 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 8.5V | 3A | Single | Single | Yes | 25.5VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms | 1.1 lbs (499 g) |
|
229C56PWR XFMR SEMI-TORO 24VA TH Hammond Manufacturing |
2,553 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 850mA, Series 425mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms | 0.92 lb (417.3 g) |
|
|
166G12PWR XFMR LAMINATED 6.3VA CHAS MT Hammond Manufacturing |
4,011 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 12.6V | 500mA | Single | Single | Yes | 6.3VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266EA24PWR XFMR LAMINATED 4.8VA CHAS MT Hammond Manufacturing |
1,286 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 400mA, Series 200mA | Dual | Dual | No | 4.8VA | Chassis Mount | Wire Leads | 60.45mm L x 40.64mm W | 36.83mm | 2000Vrms | 0.45 lb (204.12 g) |
|
|
186F10PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing |
4,153 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.9 lbs (1.3 kg) |
|
|
186F16PWR XFMR LAMINATED 100VA CHAS MT Hammond Manufacturing |
1,925 |
|
Datasheet |
186 | Box | Active | Laminated Core | 115V, 230V | 16V | 6.25A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.8 lbs (1.3 kg) |
|
|
266F6PWR XFMR LAMINATED 1.89VA CHAS Hammond Manufacturing |
3,677 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 600mA, Series 300mA | Dual | Dual | No | 1.89VA | Chassis Mount | Wire Leads | 52.32mm L x 35.05mm W | 31.75mm | 2000Vrms | 0.2 lb (90.72 g) |
|
183K16PWR XFMR LAMINATED 56VA TH Hammond Manufacturing |
4,592 |
|
Datasheet |
183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 7A, Series 3.5A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
