Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
266LA12PWR XFMR LAMINATED 24VA CHAS MT Hammond Manufacturing |
2,056 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
|
266M2PWR XFMR LAMINATED 7.5VA CHAS MT Hammond Manufacturing |
3,991 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 1.25V, Series 2.5V | Parallel 6A, Series 3A | Dual | Dual | No | 7.5VA | Chassis Mount | Wire Leads | 71.63mm L x 42.93mm W | 42.93mm | 2000Vrms | 0.6 lb (272.16 g) |
|
|
266L12BPWR XFMR LAMINATED 25.2VA CHAS Hammond Manufacturing |
4,787 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25.2VA | Chassis Mount | Wire Leads | 79.50mm L x 50.04mm W | 69.85mm | 2000Vrms | 1.6 lbs (725.7 g) |
|
167L28PWR XFMR LAMINATED 56VA CHAS MT Hammond Manufacturing |
2,964 |
|
Datasheet |
167 | Bulk | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms | 2.4 lbs (1.1 kg) |
|
229D24PWR XFMR SEMI-TORO 48VA TH Hammond Manufacturing |
3,461 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.3 lbs (589.7 g) |
|
|
229D20PWR XFMR SEMI-TORO 48VA TH Hammond Manufacturing |
4,209 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.6 lbs (725.7 g) |
|
229D56PWR XFMR SEMI-TORO 48VA TH Hammond Manufacturing |
3,410 |
|
Datasheet |
229 | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 63.50mm L x 79.25mm W | 35.05mm | 1750Vrms | 1.4 lbs (635 g) |
|
|
266GB6PWR XFMR LAMINATED 3.78VA CHAS Hammond Manufacturing |
3,681 |
|
Datasheet |
266 | Box | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 3.78VA | Chassis Mount | Wire Leads | 60.45mm L x 37.59mm W | 36.32mm | 2000Vrms | 0.55 lb (249.48 g) |
|
187F24PWR XFMR LAMINATED 96VA CHAS MT Hammond Manufacturing |
1,516 |
|
Datasheet |
187 | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 66.68mm W | 65.02mm | 2000Vrms | 2.7 lbs (1.2 kg) |
|

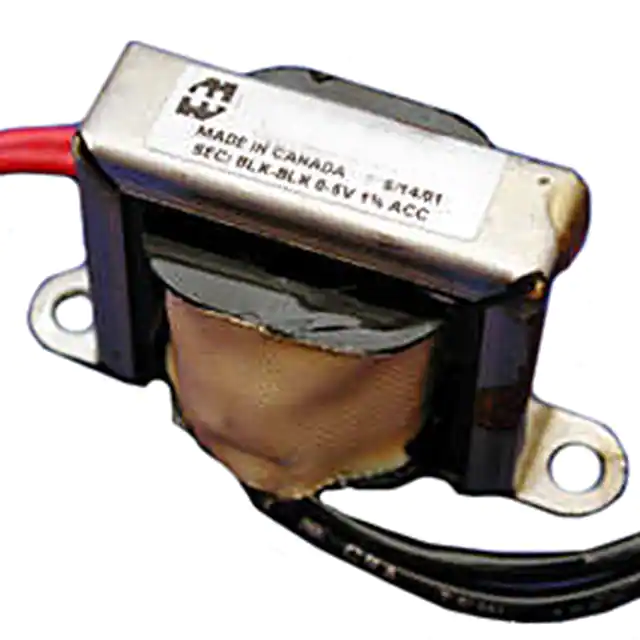

PT120CFPWR XFMR LAMINATED CHAS MT Hammond Manufacturing |
1,670 |
|
Datasheet |
PT | Box | Active | Laminated Core | 120V | - | - | Single | Single | No | - | Chassis Mount | Wire Leads | 52.40mm L x 27.94mm W | 31.75mm | 4000Vrms | - |
