Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
166F28PWR XFMR LAMINATED 7VA CHAS MT Hammond Manufacturing |
4,749 |
|
Datasheet |
166 | Bulk | Active | Laminated Core | 115V | 28V | 250mA | Single | Single | Yes | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms | 0.7 lb (317.51 g) |
|
266LA25PWR XFMR LAMINATED 50.4VA CHAS Hammond Manufacturing |
3,792 |
|
Datasheet |
266 | Bulk | Active | Laminated Core | 115V, 230V | 25.2V | 2A | Dual | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 93.73mm L x 54.10mm W | 58.67mm | 2000Vrms | 2.2 lbs (997.9 g) |
|
183J28PWR XFMR LAMINATED 30VA TH Hammond Manufacturing |
4,688 |
|
Datasheet |
183 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 4000Vrms | 1.2 lbs (544.3 g) |
|

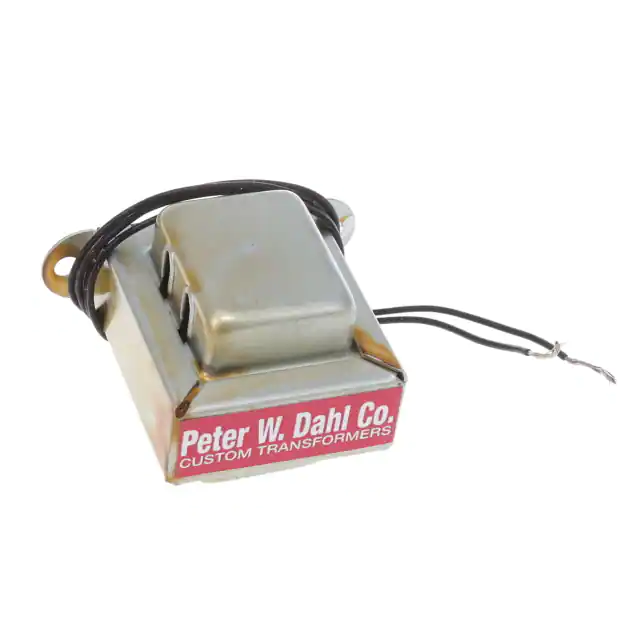

PWDI13158PWR XFMR CHAS MT Hammond Manufacturing |
2,389 |
|
Datasheet |
PWDAHL | Box | Active | - | 600V | - | 80mA | Single | - | - | - | Chassis Mount | Wire Leads | 60.33mm L x 40.64mm W | 1.995" (50.67mm) | - | - |
|
161H16PWR XFMR LAMINATED 24VA TH Hammond Manufacturing |
4,387 |
|
Datasheet |
161 | Bulk | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.81 lb (367.41 g) |
|
185E12PWR XFMR LAMINATED 80VA CHAS MT Hammond Manufacturing |
1,728 |
|
Datasheet |
185 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 66.29mm W | 76.20mm | 4000Vrms | 2.5 lbs (1.1 kg) |
|
164J12PWR XFMR LAMINATED 36VA TH Hammond Manufacturing |
3,799 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
160H28PWR XFMR LAMINATED 24VA TH Hammond Manufacturing |
3,931 |
|
Datasheet |
160 | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.6A, Series 800mA | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms | 0.78 lb (353.8 g) |
|
|
164J56PWR XFMR LAMINATED 36VA TH Hammond Manufacturing |
3,259 |
|
Datasheet |
164 | Bulk | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms | 1.1 lbs (499 g) |
|
262B24PWR XFMR LAMINATED 7VA CHAS MT Hammond Manufacturing |
2,689 |
|
Datasheet |
262 | Bulk | Active | Laminated Core | 115V | 120V, 12/12V | 27mA, 200mA/200mA | Single | Triple | No | 7VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.67mm | - | 0.6 lb (272.16 g) |
