Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPC-24-35B57PWR XFMR LAMINATED 1VA TH Pulse Electronics |
2,352 |
|
Datasheet |
PC Plug-In | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 70mA, Series 35mA | Dual | Dual | No | 1VA | Through Hole | PC Pin | 25.40mm L x 34.93mm W | 21.08mm | 1500Vrms | 0.157 lb (71.21 g) |
|
|
PC-10-1000B3PWR XFMR LAMINATED 10VA TH Pulse Electronics |
2,973 |
|
Datasheet |
PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 2A, Series 1A | Single | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 36.53mm W | 41.28mm | 1500Vrms | 0.563 lb (255.37 g) |
|
|
PC-230-40B47PWR XFMR LAMINATED 10VA TH Pulse Electronics |
2,812 |
|
Datasheet |
PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 115V, Series 230V | Parallel 80mA, Series 40mA | Single | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 36.53mm W | 41.28mm | 1500Vrms | 0.563 lb (255.37 g) |
|
|
241-3-28A6PWR XFMR LAMINATED 2.4VA CHAS MT Pulse Electronics |
4,141 |
|
Datasheet |
Chassis-Tran | Bulk | Active | Laminated Core | 115V | 28V | 85mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.32mm L x 30.23mm W | 26.92mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
241-3-120A10PWR XFMR LAMINATED 2.4VA CHAS MT Pulse Electronics |
3,269 |
|
Datasheet |
Chassis-Tran | Bulk | Active | Laminated Core | 115V | 120V | 20mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.32mm L x 30.23mm W | 26.92mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
241-3-10A1PWR XFMR LAMINATED 2.4VA CHAS MT Pulse Electronics |
2,924 |
|
Datasheet |
Chassis-Tran | Bulk | Active | Laminated Core | 115V | 10V | 250mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.32mm L x 30.23mm W | 26.92mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
241-3-24A5PWR XFMR LAMINATED 2.4VA CHAS MT Pulse Electronics |
3,814 |
|
Datasheet |
Chassis-Tran | Bulk | Obsolete | Laminated Core | 115V | 24V | 100mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.32mm L x 30.23mm W | 26.92mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
DPC-24-180B18PWR XFMR LAMINATED 4.4VA TH Pulse Electronics |
1,298 |
|
Datasheet |
PC Plug-In | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Dual | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms | 0.313 lb (141.97 g) |
|

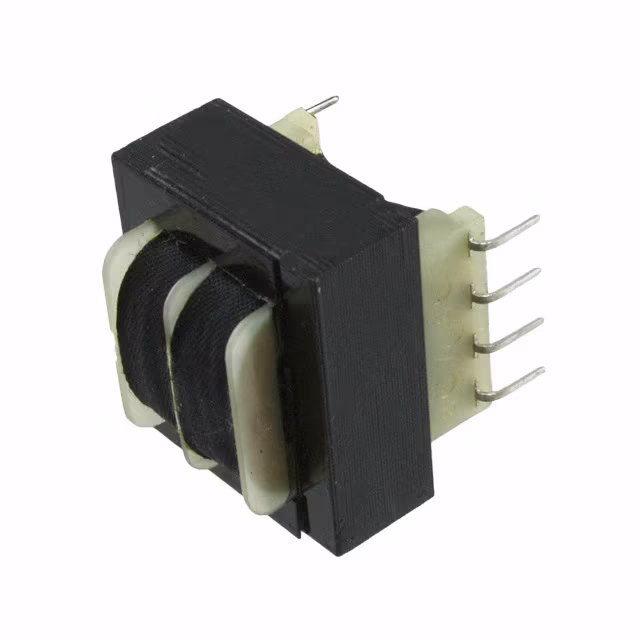

ST3-56B33PWR XFMR LAMINATED 2.4VA TH Pulse Electronics |
2,048 |
|
Datasheet |
Split Bobbin Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.05mm L x 28.70mm W | 30.23mm | 2500Vrms | 0.25 lb (113.4 g) |
|
|
ST3-120B37PWR XFMR LAMINATED 2.4VA TH Pulse Electronics |
1,345 |
|
Datasheet |
Split Bobbin Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Single | Dual | No | 2.4VA | Through Hole | PC Pin | 35.05mm L x 28.70mm W | 30.23mm | 2500Vrms | 0.25 lb (113.4 g) |
