Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

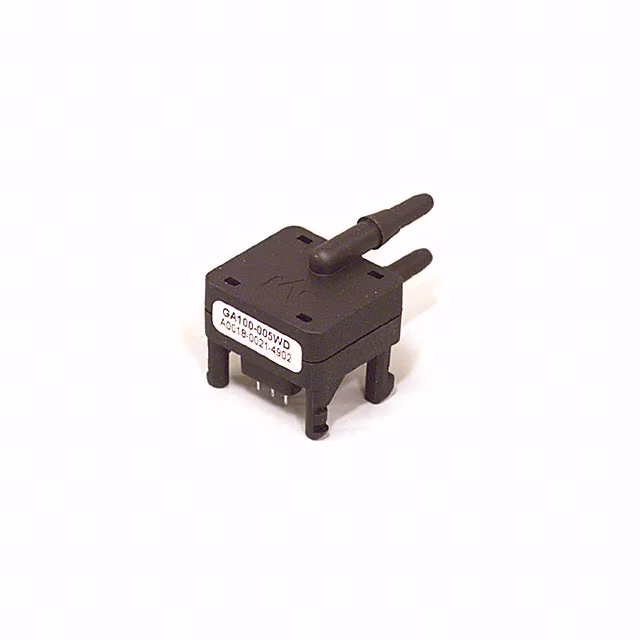

GA100-005WDSENSOR 0.18PSID 0.13" 4.5V TE Connectivity Measurement Specialties |
3,261 |
|
Datasheet |
Ares | 3-SIP Module | - | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 80°C | - | - | Through Hole | - |
|
GA100-010WDSENSOR 0.36PSID 0.13" 4.5V TE Connectivity Measurement Specialties |
3,561 |
|
Datasheet |
Ares | 3-SIP Module | - | Obsolete | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.75V ~ 5.25V | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 80°C | - | - | Through Hole | - |
|

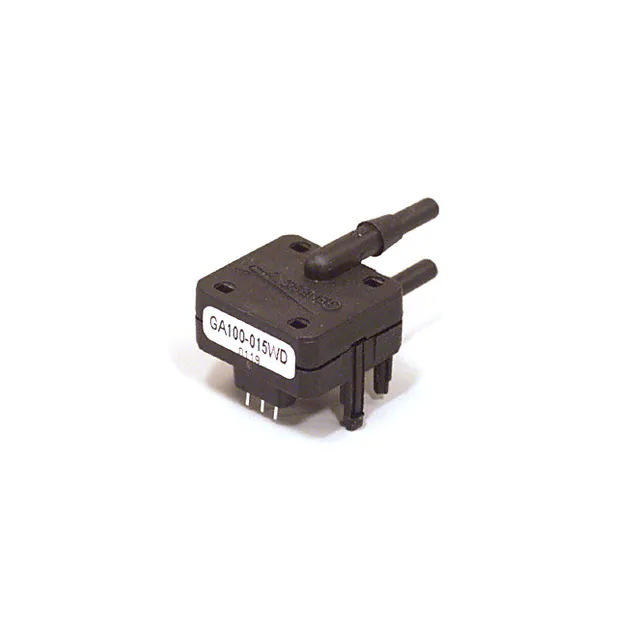

GA100-015WDSENSOR 0.54PSID 0.13" 4.5V TE Connectivity Measurement Specialties |
3,022 |
|
Datasheet |
Ares | 3-SIP Module | - | Obsolete | Board Mount | Differential | 0.54PSI (3.74kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.75V ~ 5.25V | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 80°C | - | - | Through Hole | - |
|

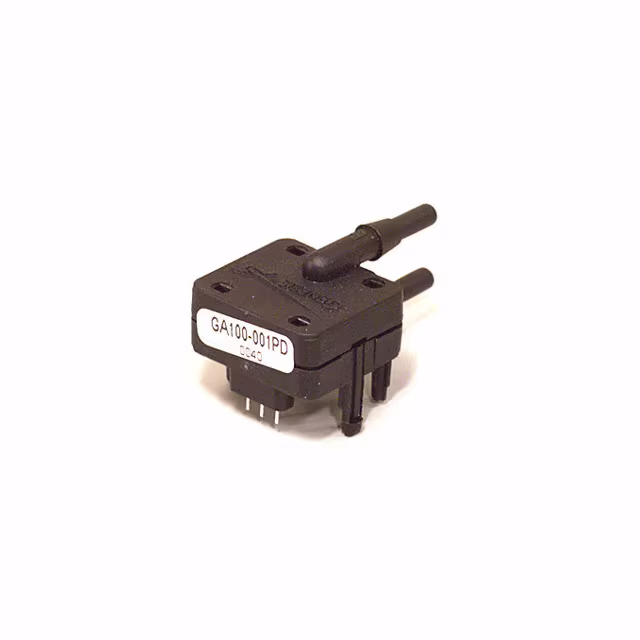

GA100-001PDSENSOR 1PSID 0.13" 4.5V TE Connectivity Measurement Specialties |
3,426 |
|
Datasheet |
Ares | 3-SIP Module | - | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 80°C | - | - | Through Hole | - |
|

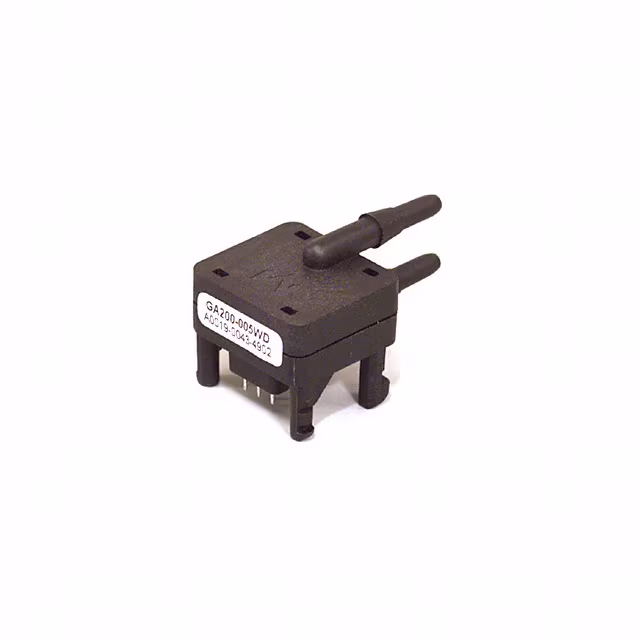

GA200-005WDSENSOR 0.18PSID 0.13" 4V TE Connectivity Measurement Specialties |
3,068 |
|
Datasheet |
Ares | 3-SIP Module | - | Obsolete | Board Mount | Differential | 0.18PSI (1.25kPa) | Analog Voltage | 0.25 V ~ 4 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 80°C | - | - | Through Hole | - |
|

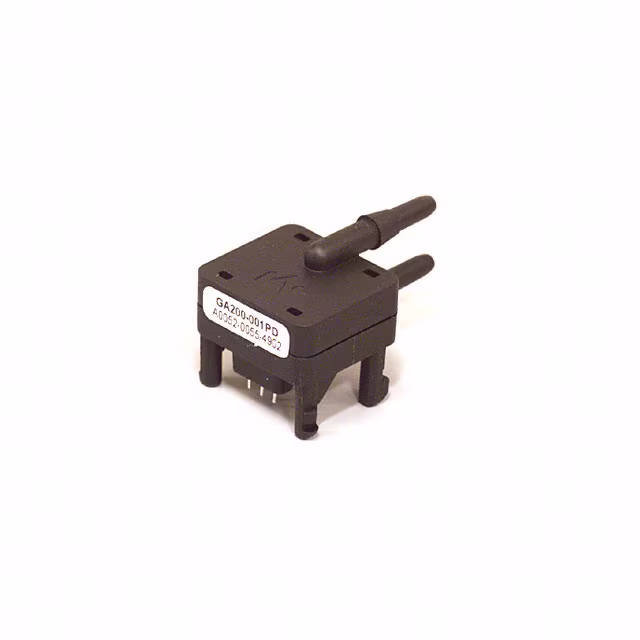

GA200-001PDSENSOR 1PSID 0.13" 4V TE Connectivity Measurement Specialties |
4,062 |
|
Datasheet |
Ares | 3-SIP Module | - | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.25 V ~ 4 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.23mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 80°C | - | - | Through Hole | - |
|

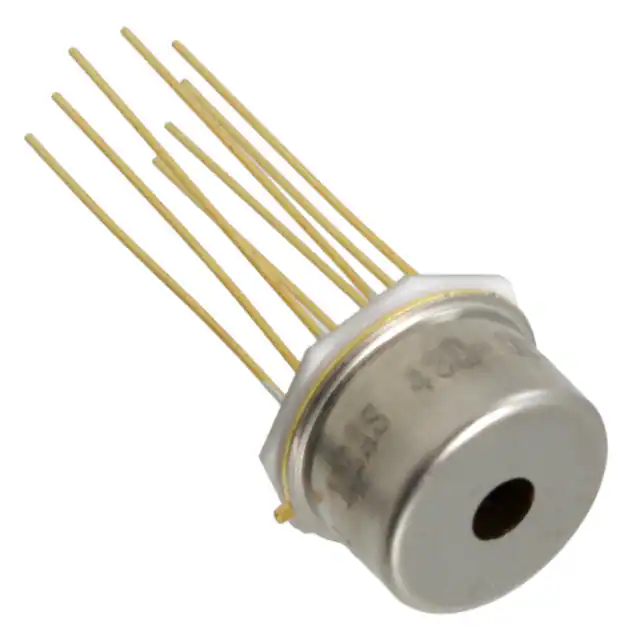

43A-015ASENSOR 15PSIA 0.1V TO8 TE Connectivity Measurement Specialties |
1,050 |
|
Datasheet |
- | TO-8 Style, 12 Leads | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
13A-002GSENSOR 3PSIG 0.19" 0.1V TO8 TE Connectivity Measurement Specialties |
4,445 |
|
Datasheet |
- | TO-8 Style, 12 Leads | Tube | Obsolete | Board Mount | Vented Gauge | 3PSI (20.68kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
|
13A-010GSENSOR 10PSIG 0.19" 0.1V TO8 TE Connectivity Measurement Specialties |
2,076 |
|
Datasheet |
- | TO-8 Style, 12 Leads | Tube | Obsolete | Board Mount | Vented Gauge | 10PSI (68.95kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
|
13A-015ASENSOR 15PSIA 0.19" 0.1V TO8 TE Connectivity Measurement Specialties |
4,043 |
|
Datasheet |
- | TO-8 Style, 12 Leads | Tube | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
