Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7MB-M1T6WLBW FLUSH PB MOME. WHITE IDEC |
1,521 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7MB-M1T6YLBW FLUSH PB MOME. YELLOW IDEC |
4,591 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
LBW6MB-M1T2VBLBW FLUSH PB MOME. BLACK IDEC |
1,392 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Black | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|

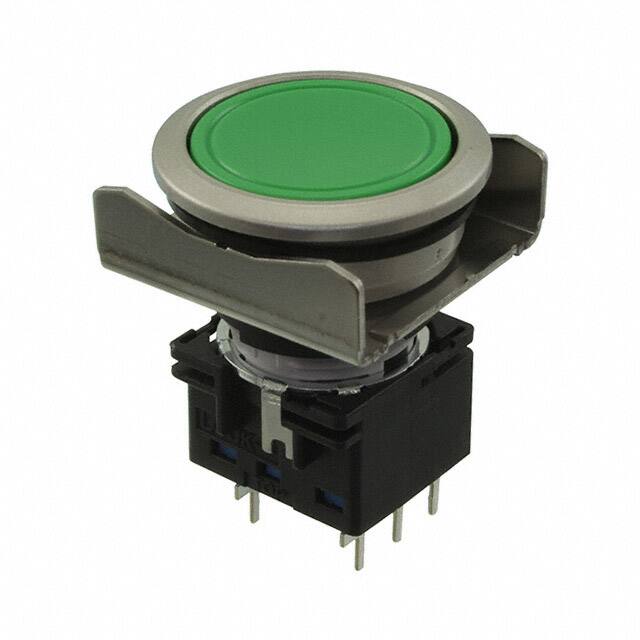

LBW6MB-M1T2VGLBW FLUSH PB MOME. GREEN IDEC |
4,187 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
LBW6MB-M1T2VRLBW FLUSH PB MOME. RED IDEC |
3,761 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LBW6MB-M1T6GLBW FLUSH PB MOME. GREEN IDEC |
1,244 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
LBW6MB-M1T6RLBW FLUSH PB MOME. RED IDEC |
1,937 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
LBW7MB-M1T6BLBW FLUSH PB MOME. BLACK IDEC |
4,955 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
ALS39910N-RW/O LAMP TWS IDEC |
1,965 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LW1B-A1C6M-R22MM PUSHBUTTON RED IDEC |
4,402 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
