Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7L-M1T24VPWLBW FLUSH ILLD PB MOME. PW IDEC |
2,432 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24VSLBW FLUSH ILLD PB MOME. BLUE IDEC |
1,410 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T64SLBW FLUSH ILLD PB MOME. BLUE IDEC |
2,755 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|

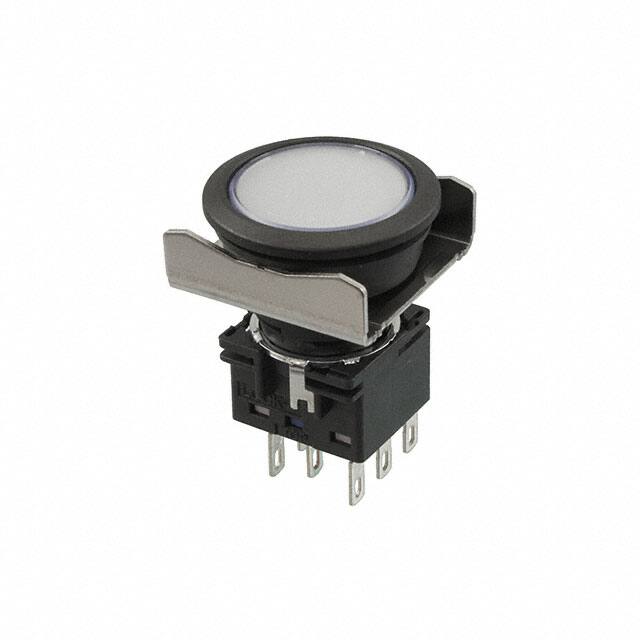

LBW6L-M1T64PWLBW FLUSH ILLD PB MOME. PW IDEC |
4,544 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | White | LED, White | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
AOLN9911-GILLUMINATED PUSHBUTTON N SERIE IDEC |
1,455 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LW3B-M1C2M-B22MM PUSHBUTTON MOMENTARY BLK IDEC |
1,863 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-M1C2M-S22MM PUSHBUTTON BLUE IDEC |
2,380 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW2B-M1C2M-G22MM PUSHBUTTON GREEN IDEC |
1,310 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW2B-M1C2M-Y22MM PUSHBUTTON YELLOW IDEC |
2,409 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
LW1B-M1C2M-WLW PB RND MON GLD CNTCTS SCRW IDEC |
3,115 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
