Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

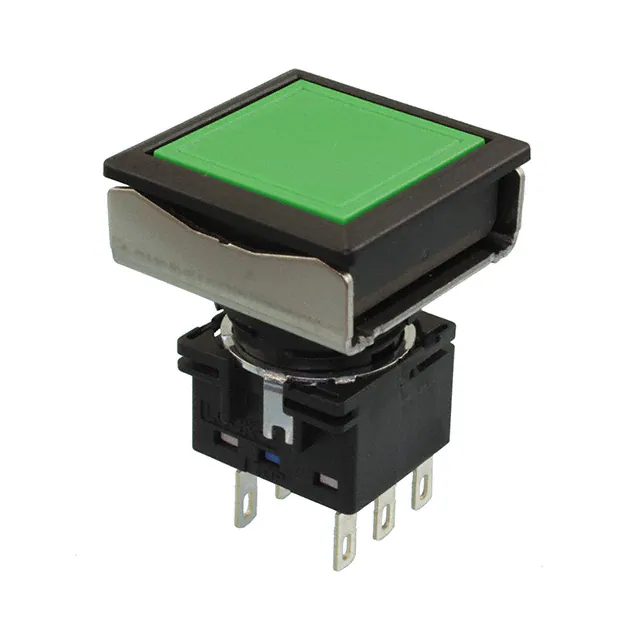

LBW7B-M1T6GLBW FLUSH PB MOME. GREEN IDEC |
1,608 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
HA1B-A2C1-Y16MM PUSHBUTTON YELLOW IDEC |
4,421 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA1B-A2C1-R16MM PUSHBUTTON RED IDEC |
4,045 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CW4B-A2E01SCW PB BLUE IDEC |
1,572 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E01GCW PB GREEN IDEC |
4,809 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E10WCW PB WHITE IDEC |
2,326 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E10RCW PB RED IDEC |
4,204 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E01WCW PB WHITE IDEC |
1,045 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A1E10SCW PB BLUE IDEC |
3,612 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW4B-A2E01RCW PB RED IDEC |
1,927 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
