Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

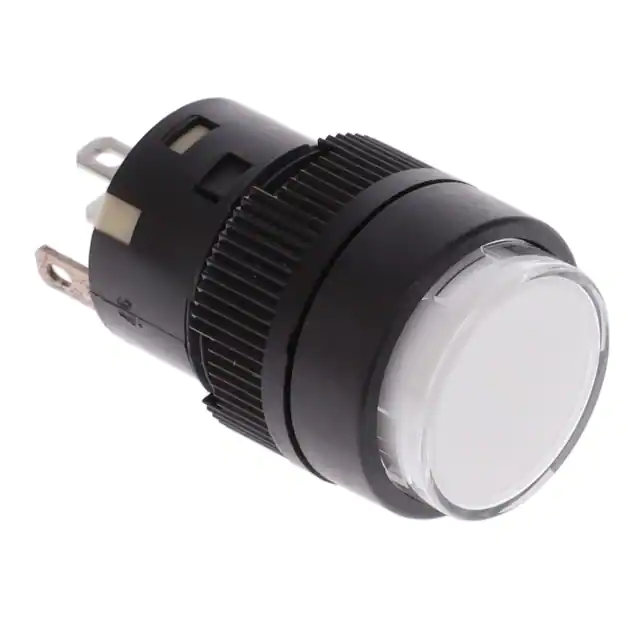

YB15CKG01-5F-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
112 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

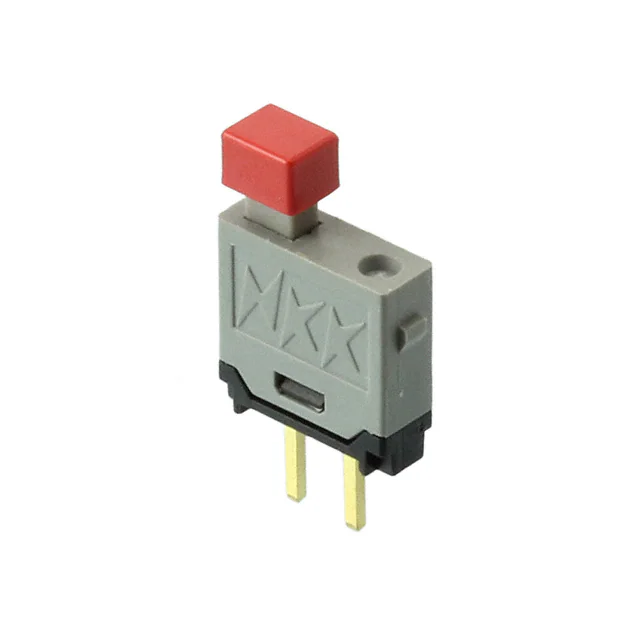

GB215AP-CSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
156 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|

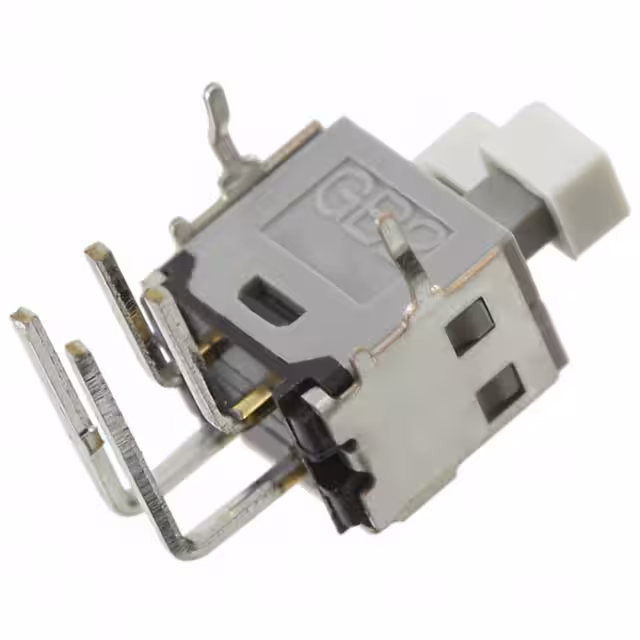

GB215A2H-BBSWITCH PUSH 2XSPST-NO 0.4VA 28V NKK Switches |
132 |
|
Datasheet |
GB2 | Box | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
GB215AP-ASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,878 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|

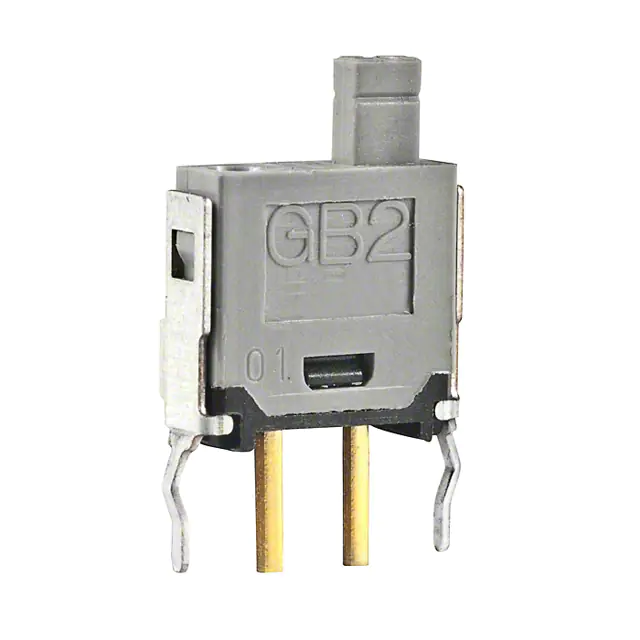

GB215ABSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
2,006 |
|
Datasheet |
GB2 | Box | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|

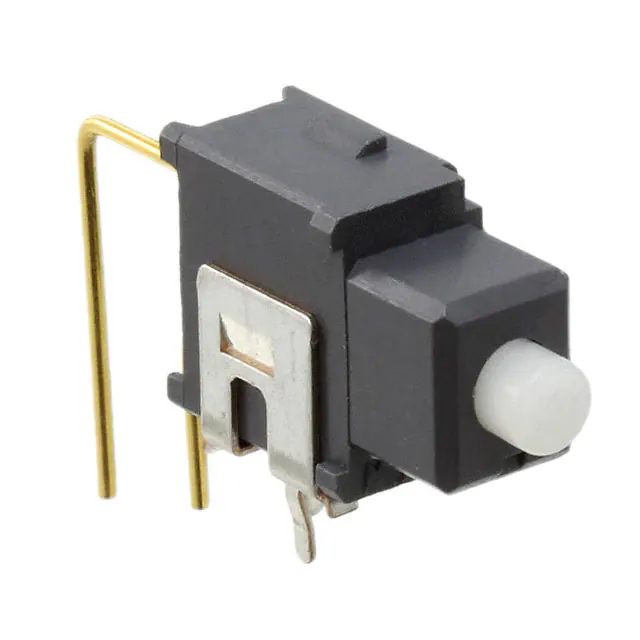

AB11CVSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
175 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
GB215AH-ASWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
385 |
|
Datasheet |
GB2 | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
|
FB15ANEP2/USWITCH PUSH SPST-NO 0.5A 125V NKK Switches |
1,047 |
|
Datasheet |
FB | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|

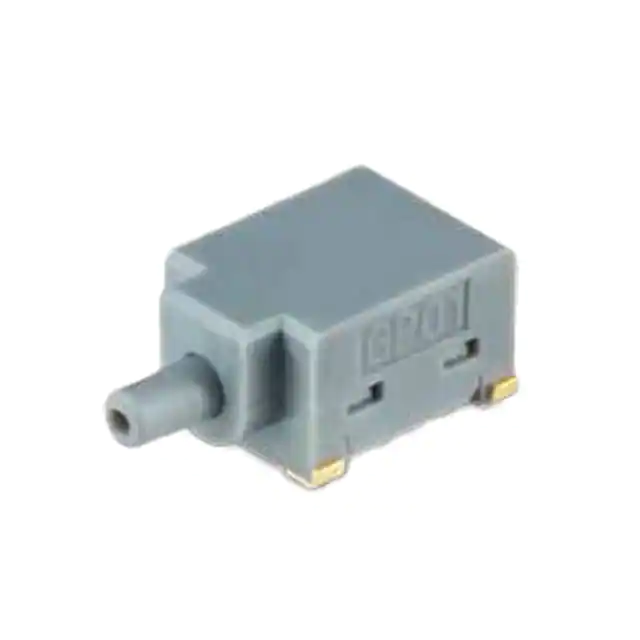

GP0115AAG30SWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,923 |
|
Datasheet |
GP01 | Tray | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|
|
AB11ABSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,224 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
