Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB25SKG035C-CCSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,580 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

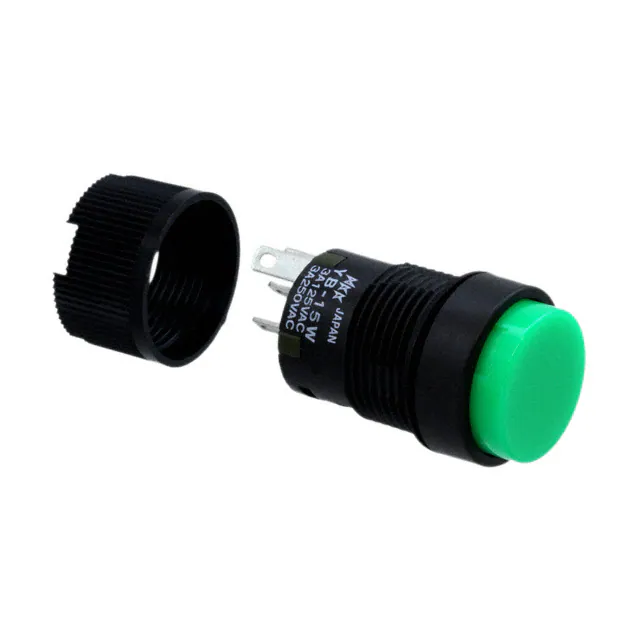

YB15WCKW01-FBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,039 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
LB16RKW01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,351 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
UB25SKG035F-JBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
2,961 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
UB15NBKG015F-JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,252 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB25SKG035D-DBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,856 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
UB15NBKG015C-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,382 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

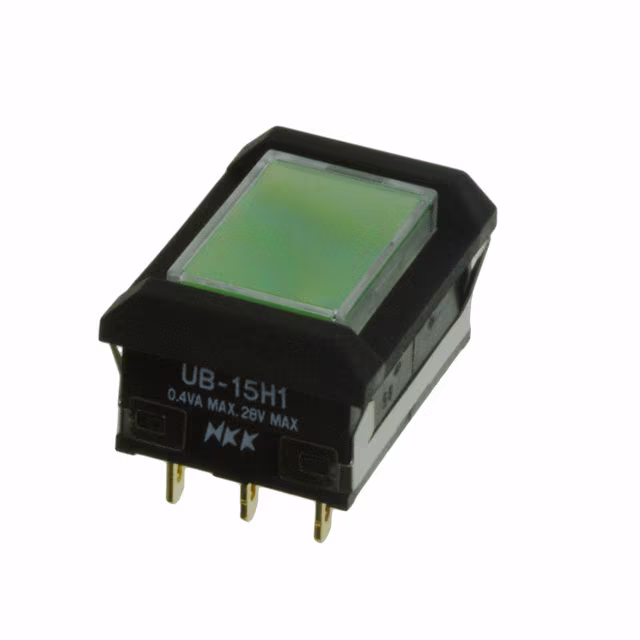

UB15NBKG015F-JFSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,583 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
JPL16B-ASWITCH PUSH SPST 16A 125V NKK Switches |
3,186 |
|
Datasheet |
JP | Tray | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|

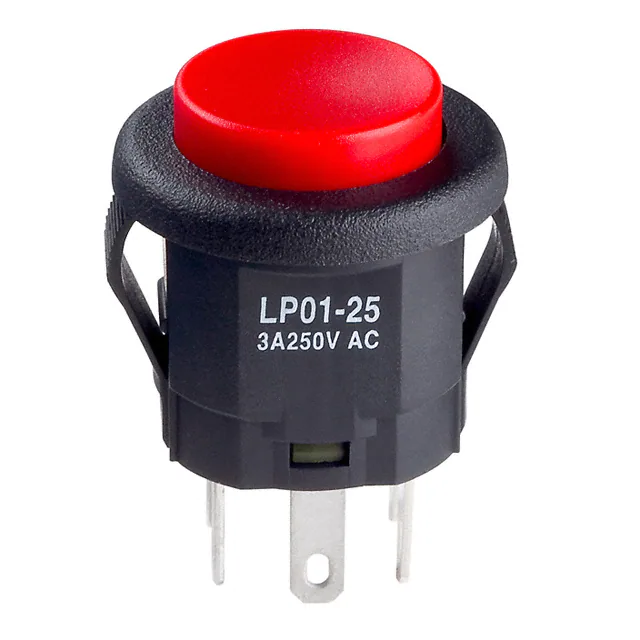

LP0125CMKW01CSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,359 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -25°C ~ 70°C |
