Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

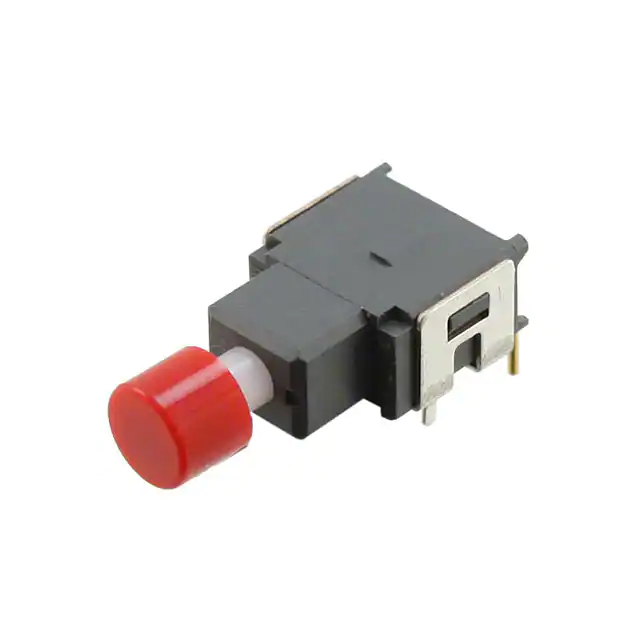

AB11AH-FCSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
399 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
EB2011PSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
137 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
AB15AH-HBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
147 |
|
Datasheet |
AB | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

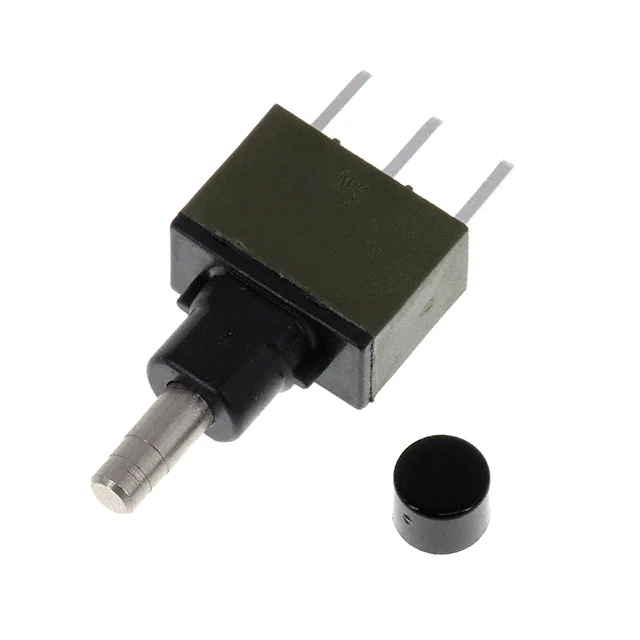

M2B15AA5W03-FASWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
256 |
|
Datasheet |
M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

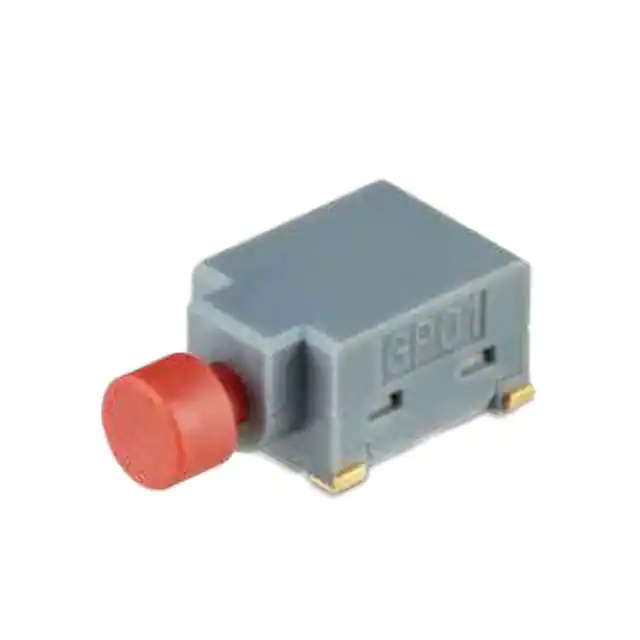

GP0115ACCG30SWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
2,108 |
|
Datasheet |
GP01 | Tray | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|

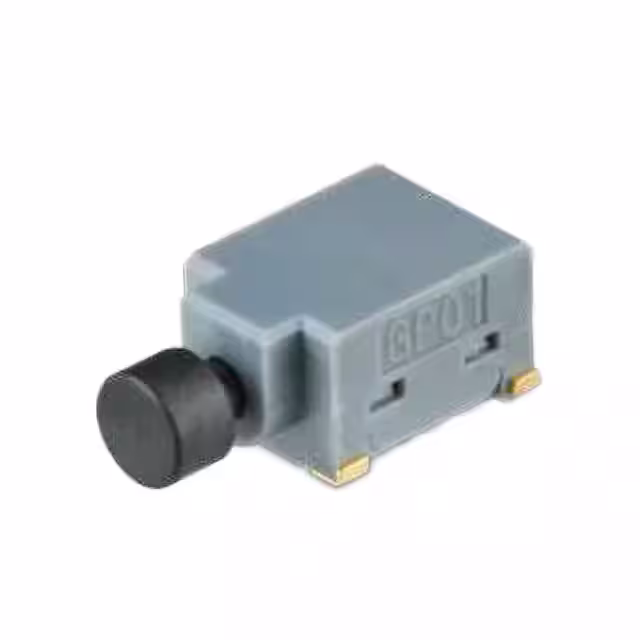

GP0115ACAG30SWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,067 |
|
Datasheet |
GP01 | Tray | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|

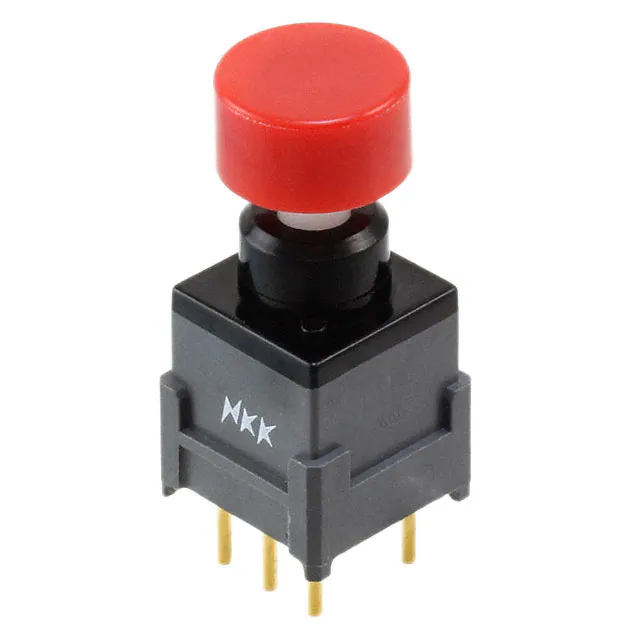

BB25AP-HCSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
125 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

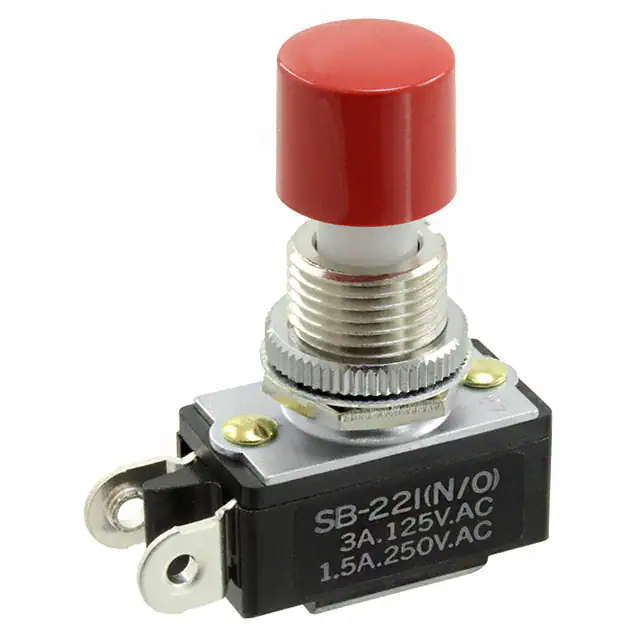

SB221NO-DCSWITCH PUSH SPST-NO 3A 125V NKK Switches |
501 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
M2B15AA5W13-HASWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
163 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

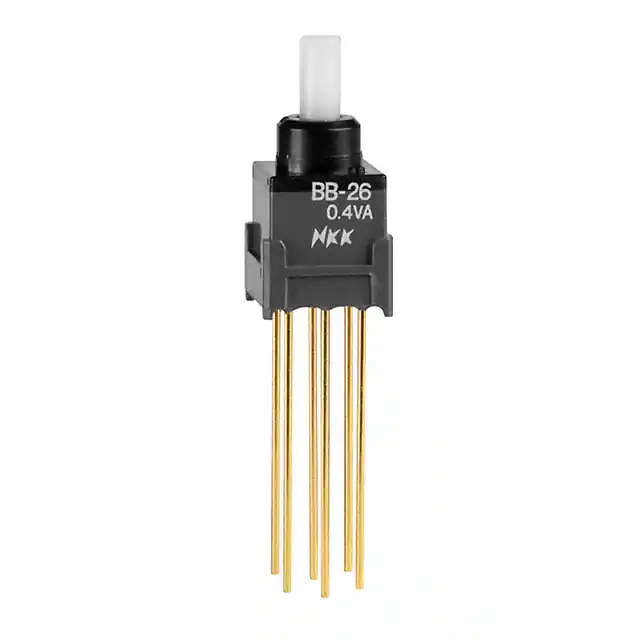

BB26AWSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,727 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
