Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HB215SKG03CE-JBSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,748 |
|
Datasheet |
HB2 | Tray | Last Time Buy | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
UB215SKW03N-5FSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,480 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKW03N-5BSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,608 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKW03N-5CSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,599 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215KKW01N-4JCSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,173 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB215KKW01N-4JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
1,070 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB215KKW01N-4JFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
3,828 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB16KKG01NSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,934 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

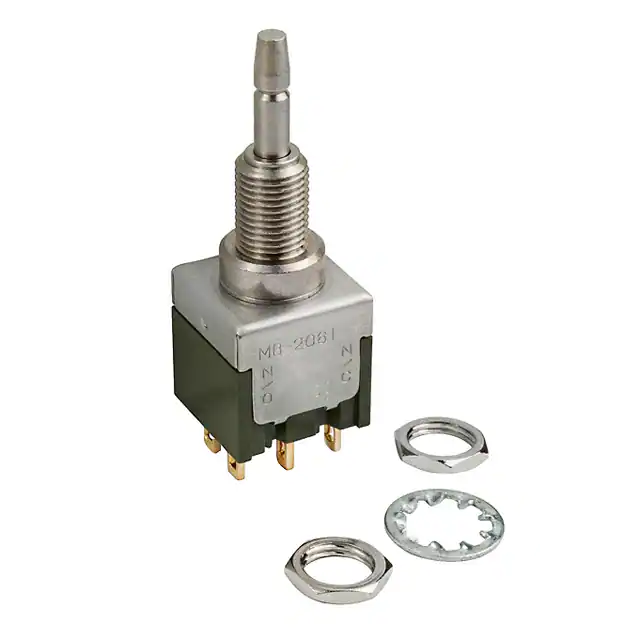

MB2061LD1G01/328SWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,184 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Low Temperature Lubricant | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
M2B15BA5G40-FASWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,118 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
