Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2085SB1W01-EASWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
3,704 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
UB25SKW03N-BSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,170 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
|
M2B25AA5G03-FASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
2,694 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B25AA5G03-FBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,962 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
UB25SKW03N-ASWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
2,729 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|

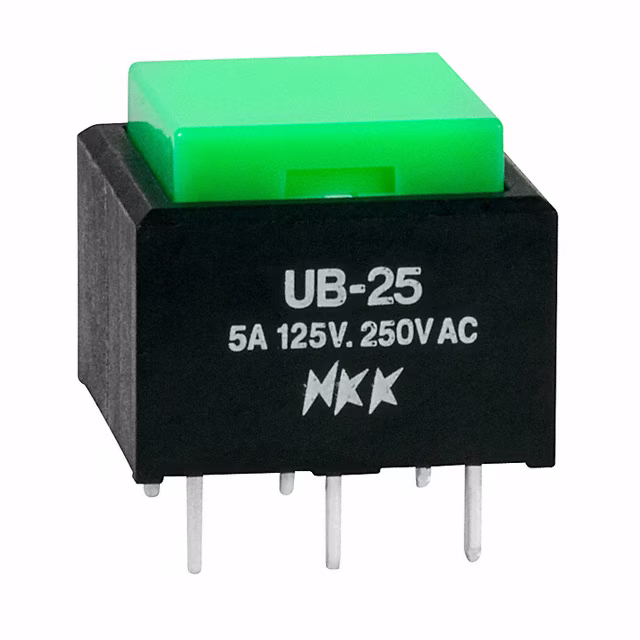

UB25SKW03N-FSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,758 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Stainless Steel | - | -20°C ~ 70°C |
|
|
UB25SKW03N-ELOW PROFILE PUSHBUTTON NKK Switches |
2,603 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | - | Yellow | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
MB2411A2G40-FCSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,787 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
G3B25AB-XASWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,743 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|
|
G3B25AB-XBSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
3,904 |
|
Datasheet |
G3B | Bulk | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
