Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2411JW01-F-1ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,698 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411JW01-G-1ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,534 |
|
Datasheet |
MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411JW01-A-1BSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,735 |
|
Datasheet |
MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411JW01-B-1BSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,694 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|

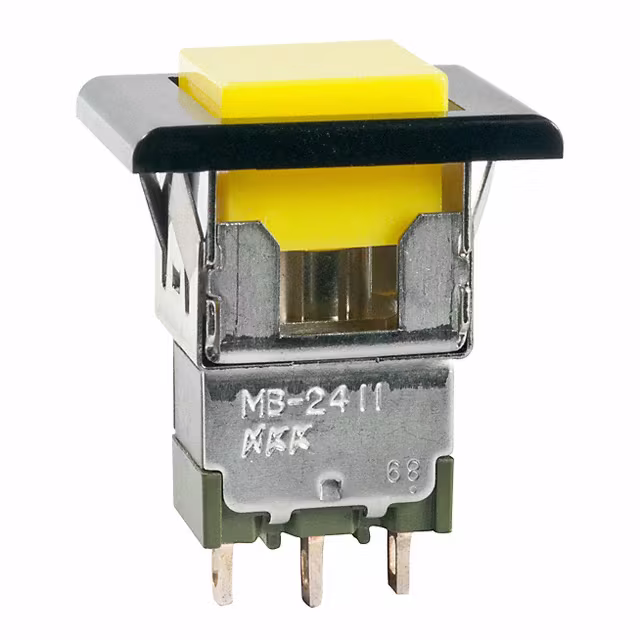

MB2411JW01-E-1ASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,374 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411JW01-G-1GSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,926 |
|
Datasheet |
MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411A2W30-HCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,444 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

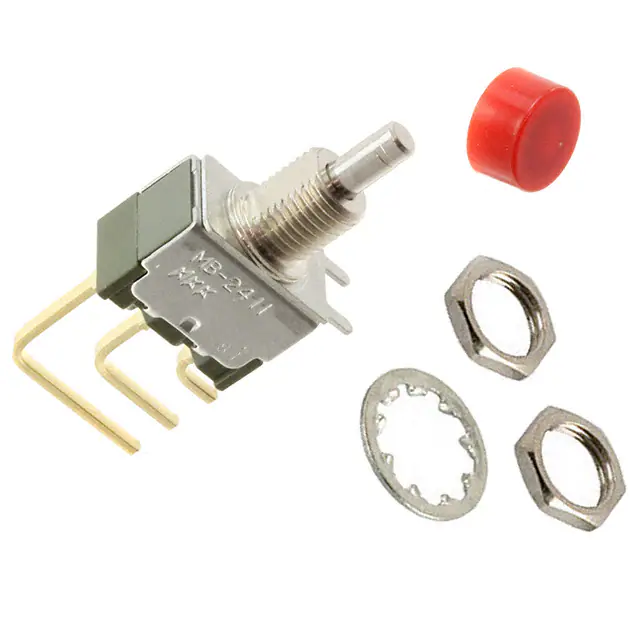

MB2411E1G40-HCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
2,570 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
HB15CKW01-EMINIATURE PUSHBUTTON/ILLUMINATED NKK Switches |
2,790 |
|
Datasheet |
HB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | 30 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
MB2411A1G30-HCSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,595 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
