Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB215SKG036CF-4JCF14SWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
120 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
YB216CWCKW01-5D05-EBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,824 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Yellow (White Filter/Diffuser) | LED, Amber | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB216CWCKW01-5C05-CBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,286 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

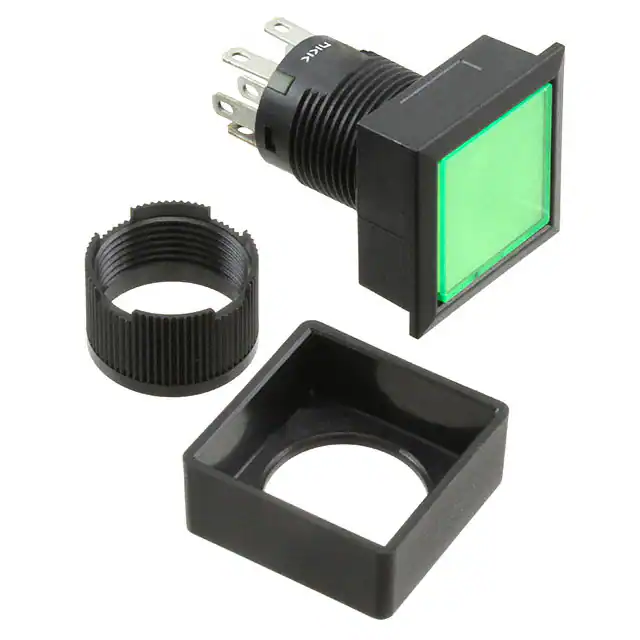

YB226CWSKW01-5F24-FBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,262 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile/Audible Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
GB215AB-CSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,444 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
|
BB15AVSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,983 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB16ABSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,645 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB16AP-FCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,224 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB16AH-FBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,788 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

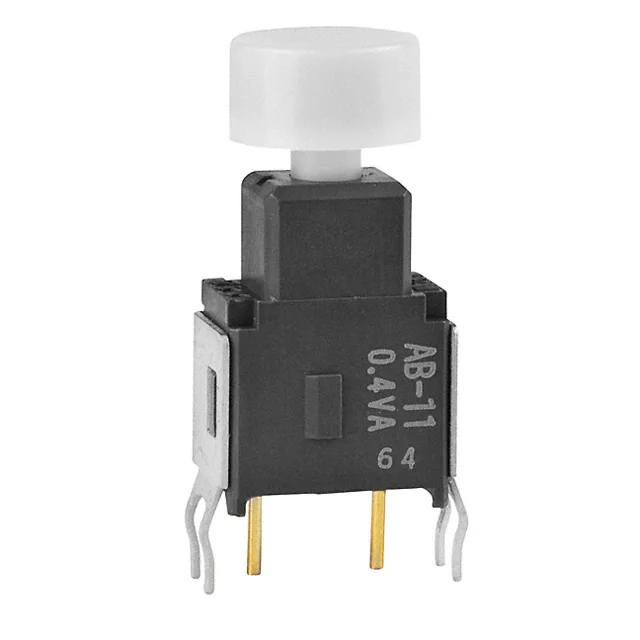

AB11BB-HBSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,592 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
