Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB26SKG01SWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,930 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
NP0115HG03LCF-JCF12SWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
3,889 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Alternating Legend | ON/OFF | Red, Green | LED, Green/Red | 2.0, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
LB25CGW01/UC-HSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
4,933 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
LB25CGW01-BSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,306 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|

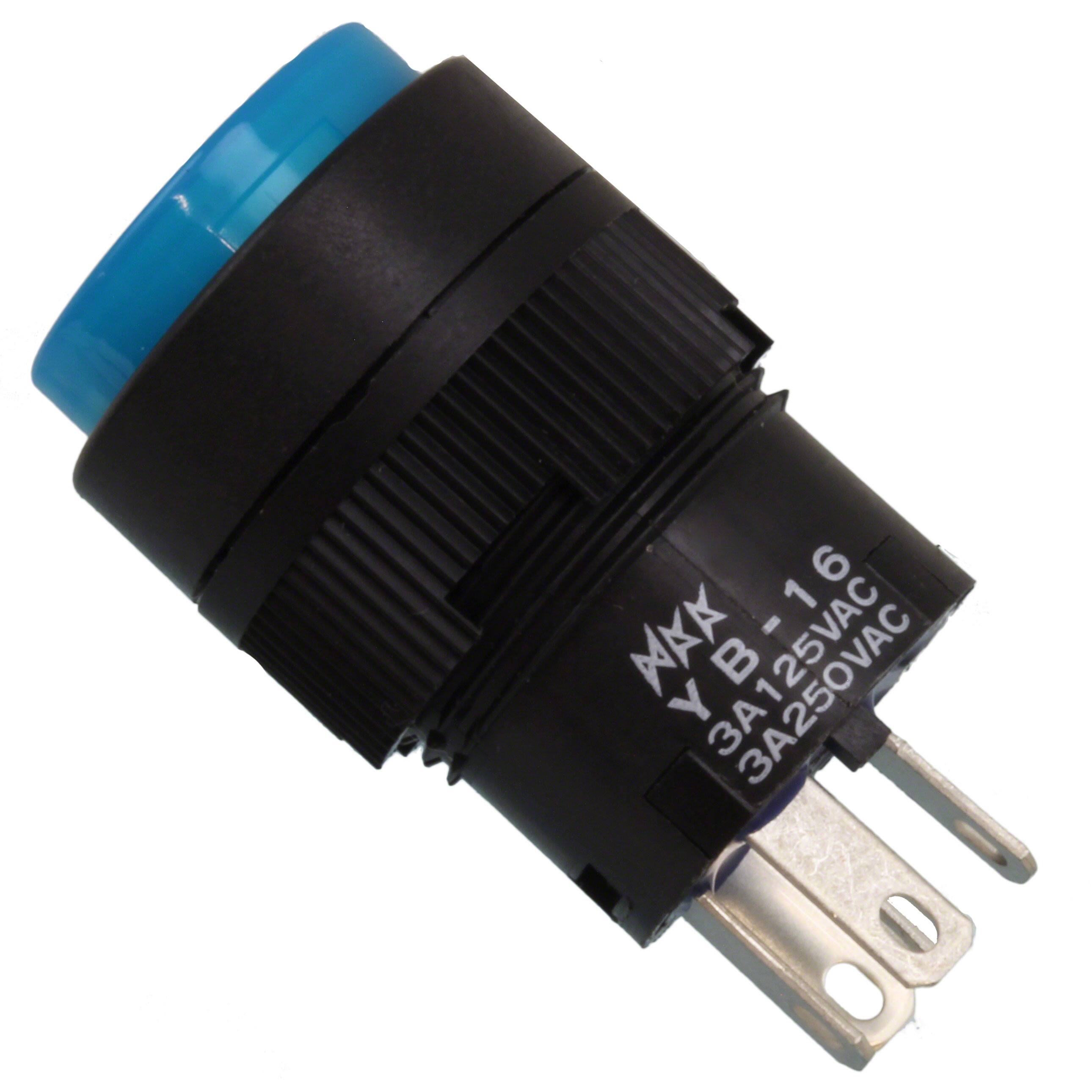

YB16CKW01-GBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,738 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

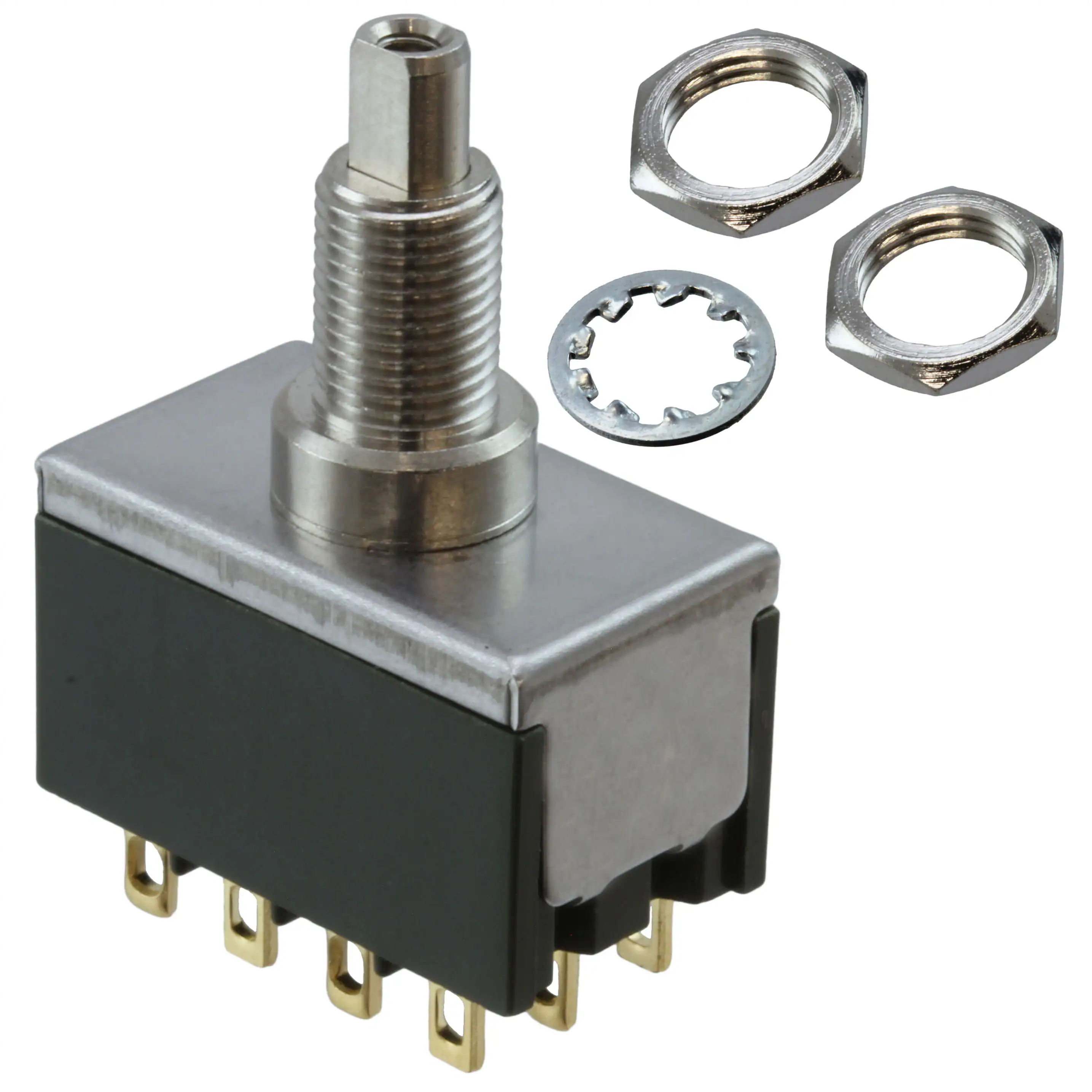

MB2185SS1G01SWITCH PUSHBUTTON 4PDT 0.4VA 28V NKK Switches |
3,035 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SB3W01-DCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,129 |
|
Datasheet |
MB2000 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SB3W01-DGSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
4,377 |
|
Datasheet |
MB2000 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
YB26WRKW01/CSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,773 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB16NBKW015C-ABSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,653 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
