Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15RKW01-2CF02-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,385 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15CKW01-5C05-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,469 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15CKW01-5C24-JCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,190 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

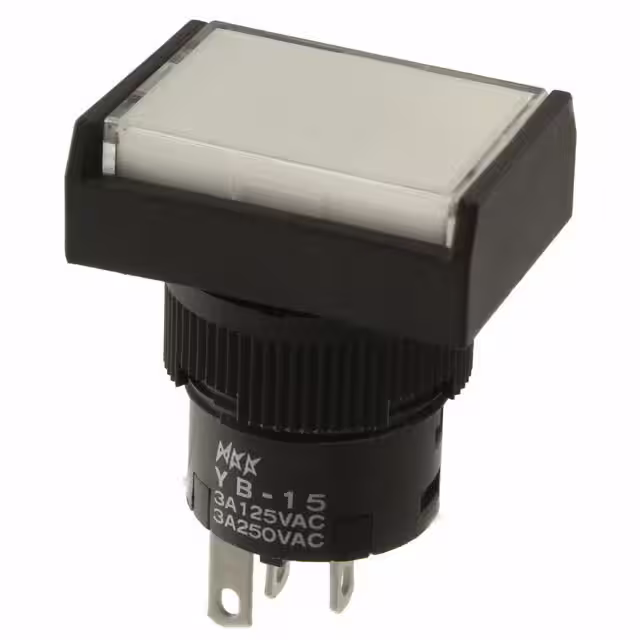

YB15RKW01-5C24-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,545 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15RKW01-5C24-JCSPDT ON-(ON) RECTANGULAR BUSHING NKK Switches |
1,156 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15CKW01-5F12-JFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,147 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15RKW01-5F12-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,266 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

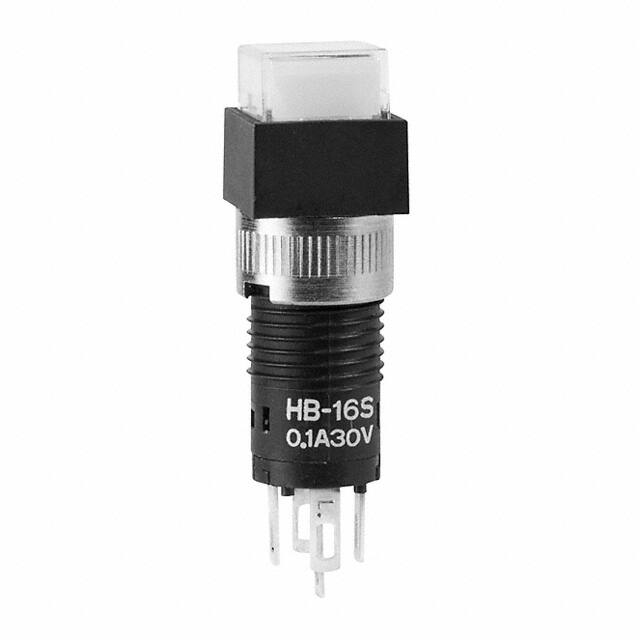

HB16SKW01-6B-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
1,890 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
YB15RKW03-2CF02-JBSHORT BODY PUSHBUTTON/ILLUMINATE NKK Switches |
2,651 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1 VDC | PC Pin | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
HB16SKW01-6G-JBSWITCH PUSH SPDT 0.1A 30V NKK Switches |
2,588 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
