Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB226SKW036DG-4JDG14SWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,548 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB226SKW036DG-5JDG14SWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,036 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | OPEN/CLOSE (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB226SKW036DG-5JDG13SWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,535 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | START/STOP (Alternating) | Clear | LED, Amber/Blue | 2.8, 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|

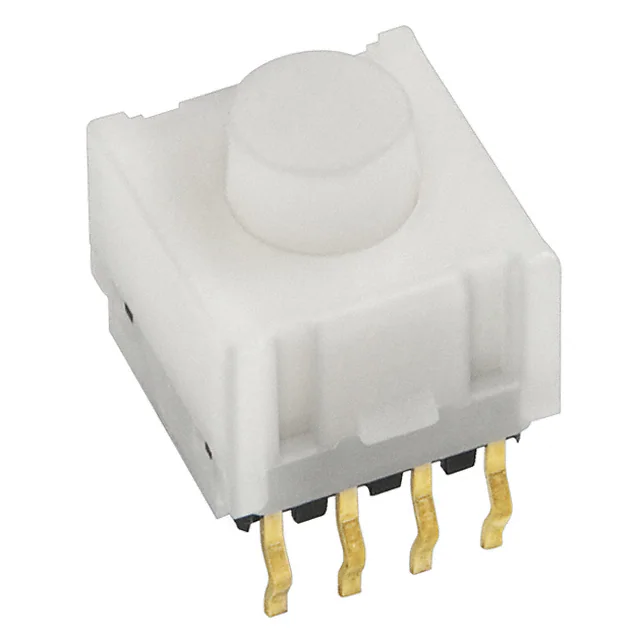

NP0115AG03NNSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
129 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button (Not Included) | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
SCB15P10A-4AASWITCH PUSH SPDT 10A 125V NKK Switches |
185 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
FB15ANEP2/U-FC.5 AMP MOMENTARY PUSHBUTTON NKK Switches |
3,213 |
|
Datasheet |
FB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Turret | - | - | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
BB15AWSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,574 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

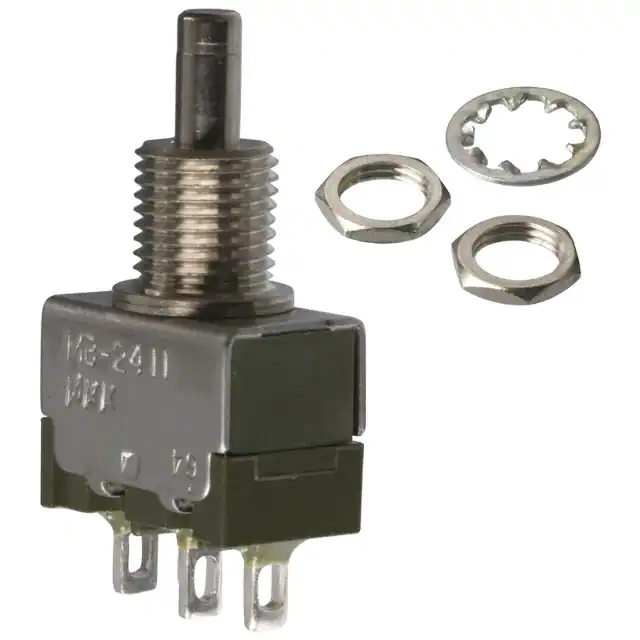

MB2411E1W01SWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,744 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

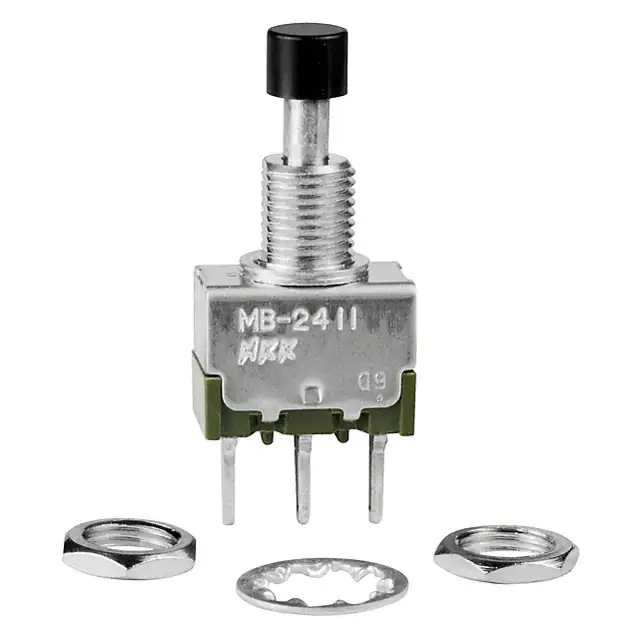

MB2411S1W03-HASWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,996 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
NP0115HG03LCSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
2,750 |
|
Datasheet |
NP01 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button (Not Included) | No Marking | - | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
