Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB226CWCKW01/CUL-5C-JSSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,733 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB25WCKW01-2CF02-JBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,027 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

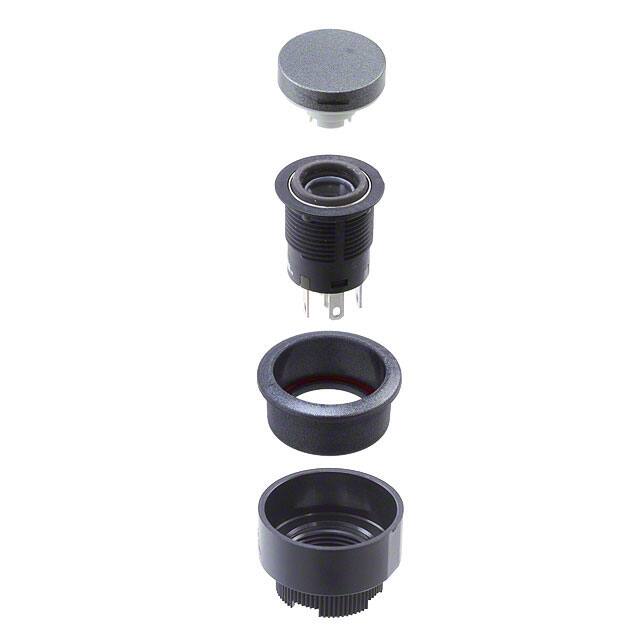

YB215CWCKW01-6B-JSSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,681 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB225CWCKW01-5F12-JBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
3,007 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB225CWCKW01-5F12-FBSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
2,406 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Green (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB215CWCKW01-5F12-JSSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,011 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB225CWSKW01-6G-JBSTD SIZE PUSHBUTTON/ILLUMINATED/ NKK Switches |
1,836 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 50°C |
|
|
YB215CWSPG01-N-PSPDT ON-(ON) SQUARE PANEL SEAL B NKK Switches |
4,222 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button, Flush | No Marking | Brushed Chrome | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
|
YB216CWCPW01-5C-CBSPDT ON-(ON) ROUND PANEL SEAL BR NKK Switches |
1,672 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Red (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
YB215CWCPW01-5C-JSSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,697 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Silver | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
