Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB15KKG015D-ABSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
1,731 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black (White Window) | LED, Amber | 2 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MBN15LS1W03-BABUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,721 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

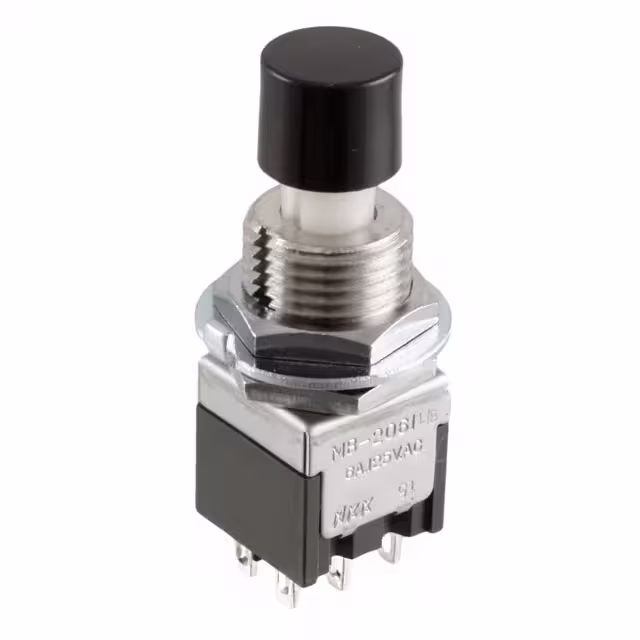

MB2061SB1W01-CASWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
3,192 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
LB15WKW01/UC-CJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,950 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MBN15SS2G13BRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
4,336 |
|
- |
M | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | White | - | - | PC Pin | - | - | - | - |
|
|
MBN15LS1W03-CEBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
2,395 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Yellow | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2085SS2G30SWITCH PUSH DPDT 0.4VA 28V NKK Switches |
1,548 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 80°C |
|
KP0115ANAKG036CFSWITCH PUSH SPST-NO 0.1A 12V NKK Switches |
2,412 |
|
Datasheet |
KP | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.0, 3.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
MBNR15S1W01-FASNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
4,101 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNR15S1W01-FBSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
3,766 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
