Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN12SS4W01BUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
2,704 |
|
- |
MB2000 | Bulk | Active | Panel Mount | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

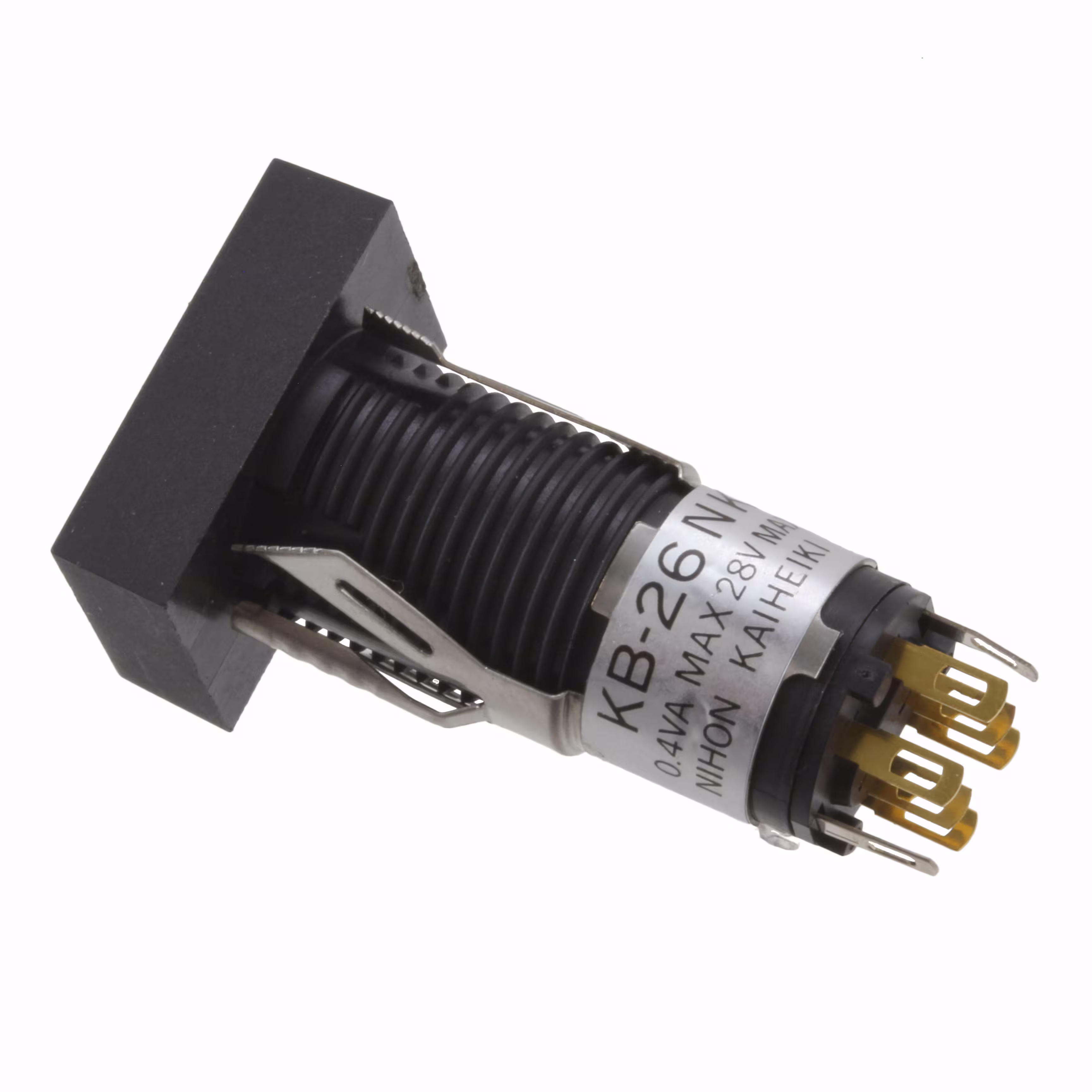

KB26NKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
4,698 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
EB2011-B-J24ACFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,129 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | LED, Green/Red | 1.9, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
EB2011-A-J24ACFLIGHT TOUCH MINIATURE PUSHBUTTON NKK Switches |
4,357 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | - | Black | LED, Green/Red | 2.0, 2.1 VDC | Solder Lug | - | - | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
MBN15SS2W13-BABRACKET PC MOUNT MINIATURE PUSHB NKK Switches |
1,449 |
|
- |
MB2000 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
MBN15SD3W01-BBBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
3,032 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SD3W01-BFBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
1,815 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBN15SD3W01-BCBUSHING MOUNT MINIATURE PUSHBUTT NKK Switches |
2,980 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2461E1W01-FBSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
4,453 |
|
Datasheet |
MB2400 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MBNR25E1W01-FBSNAP-ACTION BUSHING MOUNT PUSHBU NKK Switches |
4,327 |
|
Datasheet |
M | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 2A (AC) | 125 V | - | Round, Button | - | White | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
