Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB15KKW03-5C05-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,885 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 5 VDC | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW03-5F05-JBSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,574 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 5 VDC | PC Pin | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
LB15WGW01/USWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
1,559 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MBN12SB1W03-AT4043LARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,935 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN25SB1G01LARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
4,508 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBN15SB3G03LARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
2,737 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | - | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2411JG01-C-2A-CSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
4,739 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|

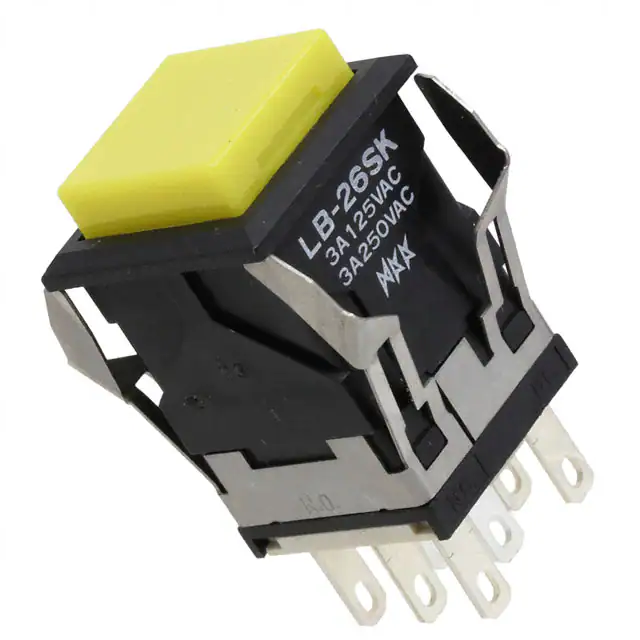

LB26SKW01-12-EJSWITCH PUSHBUTTON DPDT 3A 125V NKK Switches |
1,575 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB216KKW015F-1JFSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
2,034 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
LB16CKG01-FSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,637 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
