Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26KKG015C-ABSWITCH PUSHBUTTON DPDT 0.4VA 28V NKK Switches |
3,390 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

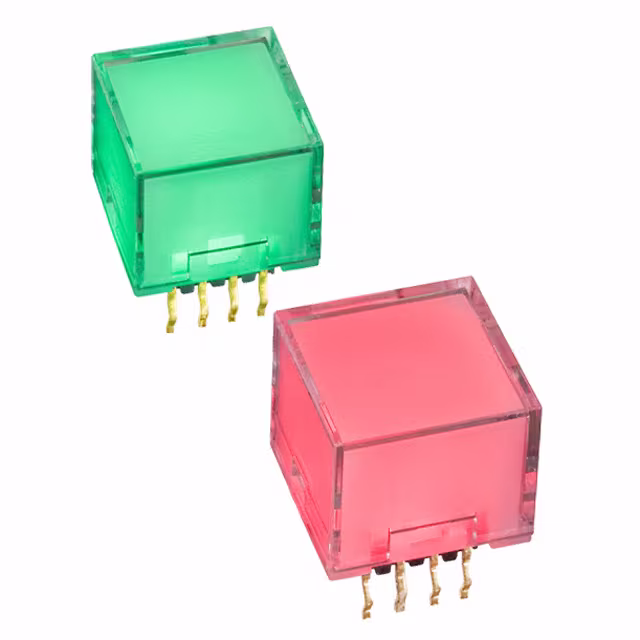

NP0115AG03LCF-JBSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
2,210 |
|
Datasheet |
NP01 | Box | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
NP0115HG03LCF-JBSWITCH PUSH SPST-NO 0.4VA 28V NKK Switches |
1,993 |
|
Datasheet |
NP01 | Box | Obsolete | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.0, 3.5 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB225KKW015D-1JBSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,971 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

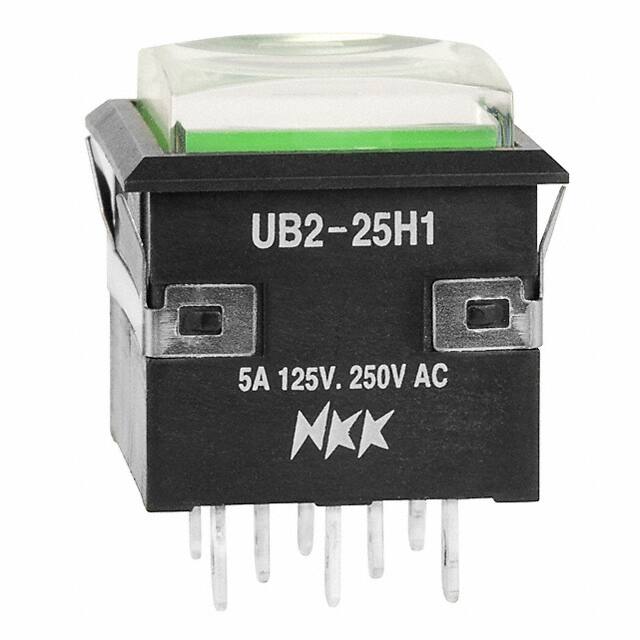

UB225KKW015F-1JFSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,895 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB225KKW015D-3JDSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
4,562 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB225KKW015C-3JCLOW PROFILE PUSHBUTTON NKK Switches |
3,124 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | - | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
LB25CKW01/CUL-CSTANDARD SIZE PANEL SEAL PUSHBUT NKK Switches |
4,937 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
YB16WCKG03-5F-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V NKK Switches |
2,314 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.2 VDC | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
MBN15SB3W01-BCLARGE BUSHING MINIATURE PUSHBUTT NKK Switches |
1,063 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.50mm Dia | -30°C ~ 85°C |
