Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB216KKW01CF-1JBSWITCH PUSHBUTTON SPDT 5A 125V NKK Switches |
4,954 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|

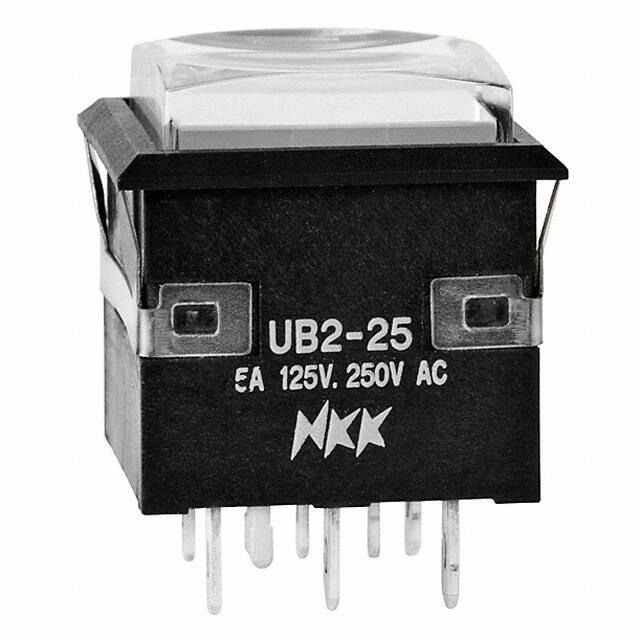

UB225KKW01CF-1JBSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
3,499 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
UB226KKW01CF-1JBSWITCH PUSHBUTTON DPDT 5A 125V NKK Switches |
1,633 |
|
Datasheet |
UB2 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
UB215SKG03CF-1JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,668 |
|
Datasheet |
UB2 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 50°C |
|
|
UB216SKG03CF-1JBSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
1,442 |
|
Datasheet |
UB2 | Bulk | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB225SKG03CF-1JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
4,208 |
|
Datasheet |
UB2 | Bulk | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB226SKG03CF-1JBSWITCH PUSH DPDT 0.4VA 28V NKK Switches |
3,711 |
|
Datasheet |
UB2 | Bulk | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
LB16RKW01-28-BJSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
3,861 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | Incandescent, White | 28 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
KB15CKG01-CCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,247 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
MB2411E1A01-FCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,838 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
