Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP0115CAC1DD-C2SWITCH PUSHBUTTON NKK Switches |
1,128 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Amber | LED, Amber | 2 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
|
FP0115CAC1FF-C2SWITCH PUSHBUTTON NKK Switches |
3,874 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Green | LED, Green | 2.25 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|

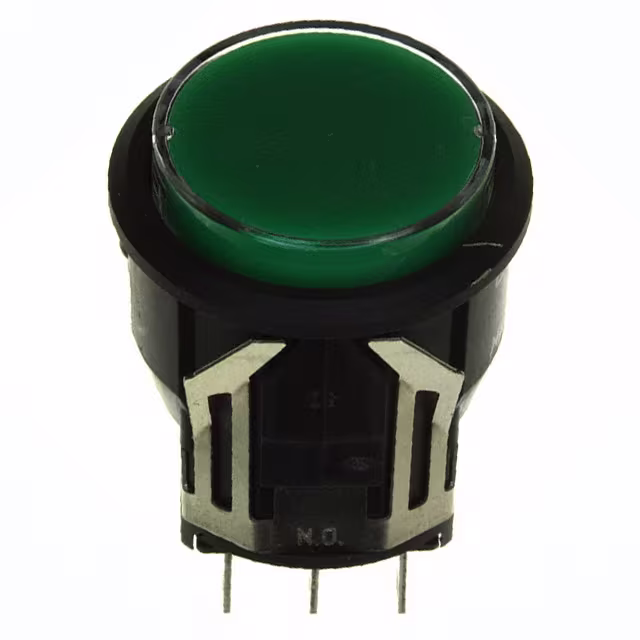

LB16CKW01-12-JFSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
2,987 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-5C05-JCSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
2,313 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
SB285SWITCH PUSHBUTTON DPDT 6A 125V NKK Switches |
2,791 |
|
Datasheet |
SB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
KB26KKW01-5D-ABSWITCH PUSHBUTTON DPDT 1A 125V NKK Switches |
1,944 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Amber | 2 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
KB15SKW01-ASWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,872 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
KB15RKW01-12-GBSWITCH PUSHBUTTON SPDT 1A 125V NKK Switches |
3,941 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue (White Filter/Diffuser) | Incandescent, Blue | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
SCB15P15B-4CASWITCH PUSH SPDT 15A 125V NKK Switches |
3,866 |
|
Datasheet |
SCB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | - | With Shroud | Circular - 12.50mm Dia | -40°C ~ 85°C |
|
|
HB16SKW01-5CSWITCH PUSH SPDT 0.1A 30V NKK Switches |
2,976 |
|
Datasheet |
HB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
