Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

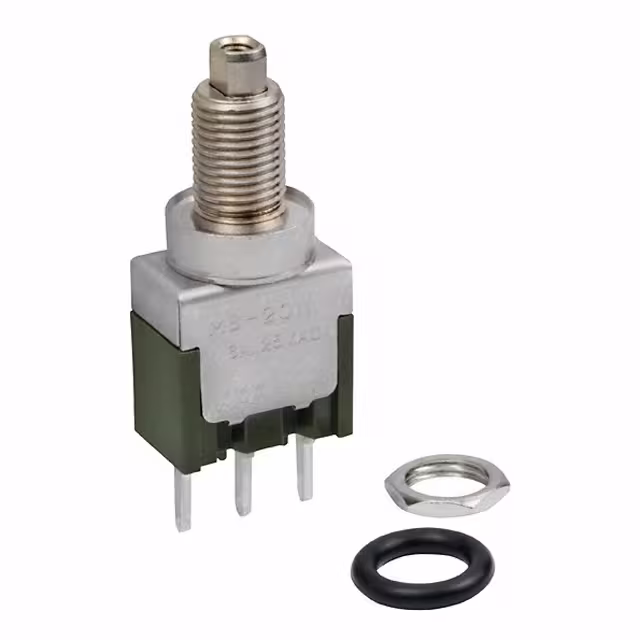

MB2011SD3W03SWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,258 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2065SS2W30-CCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
3,501 |
|
- |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2011SS2G13-BASWITCH PUSH SPDT 0.4VA 28V NKK Switches |
4,735 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

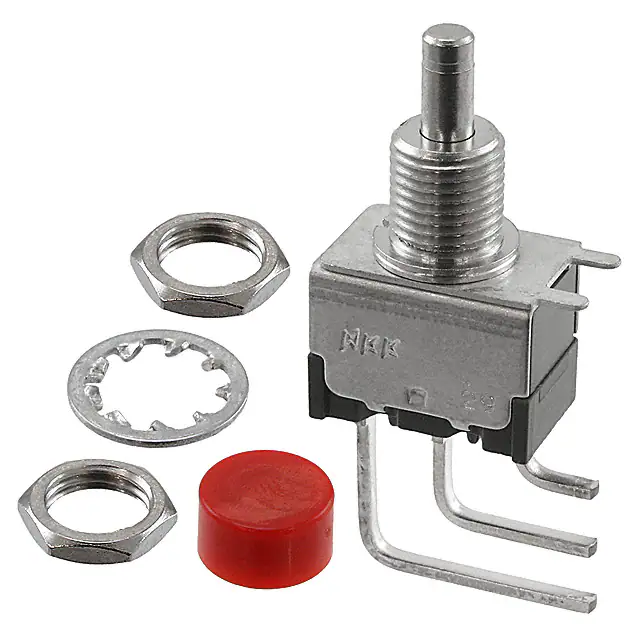

MB2411A1W40-HCSWITCH PUSHBUTTON SPDT 3A 125V NKK Switches |
4,170 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
MB2011SS2W13-BASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,645 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MB2065SS1W01-BASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
2,717 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|

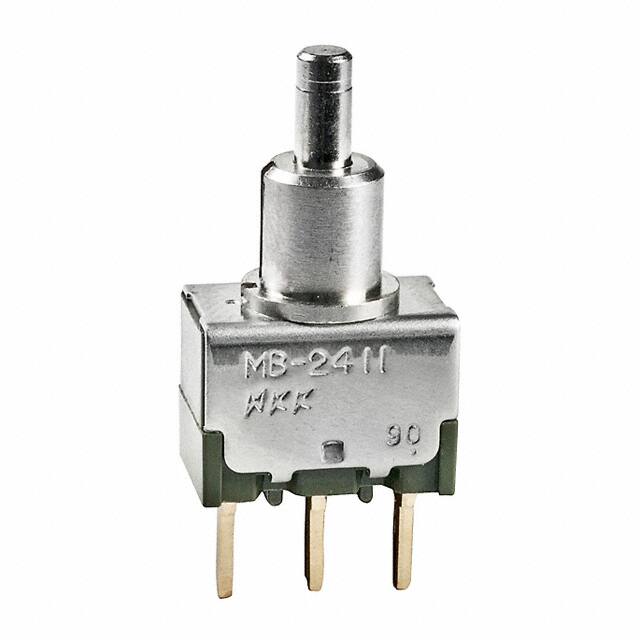

MB2411A2G03SWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,650 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2065SS1W01-BCSWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,100 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2065LS1W01-CASWITCH PUSHBUTTON SPDT 6A 125V NKK Switches |
1,549 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011LD1G01-BCSWITCH PUSH SPDT 0.4VA 28V NKK Switches |
3,447 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
